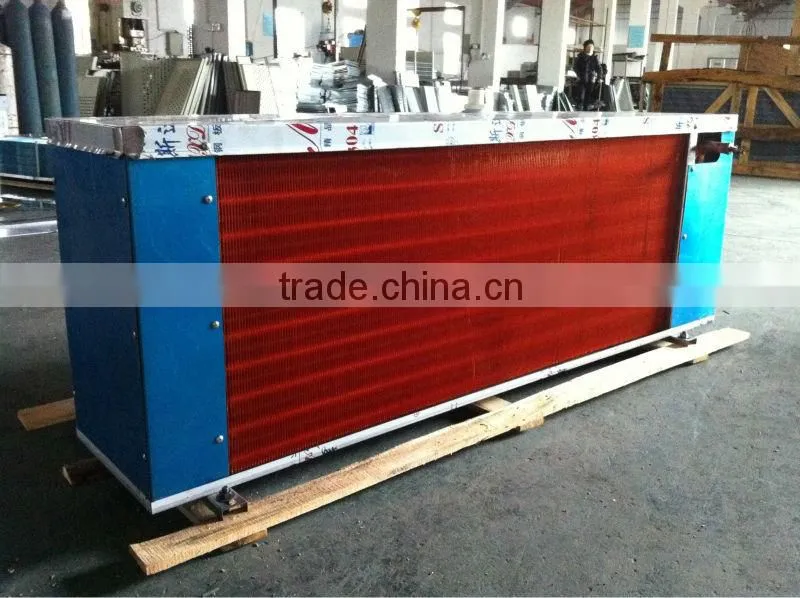

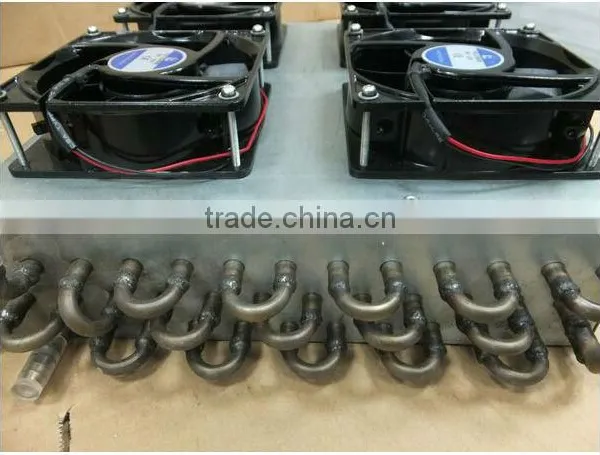

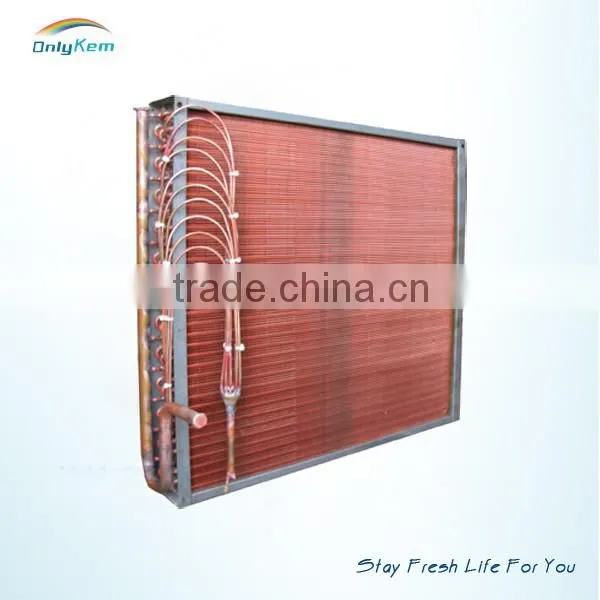

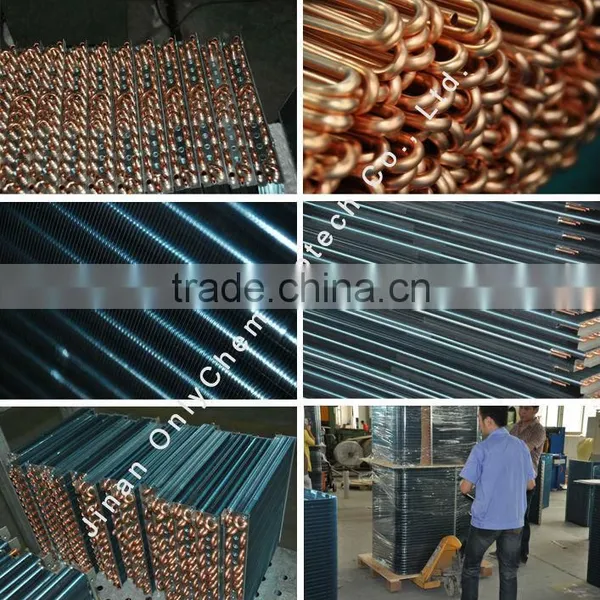

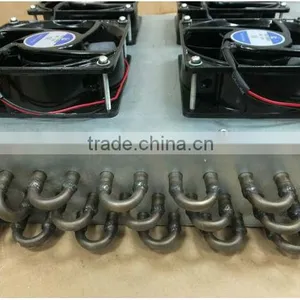

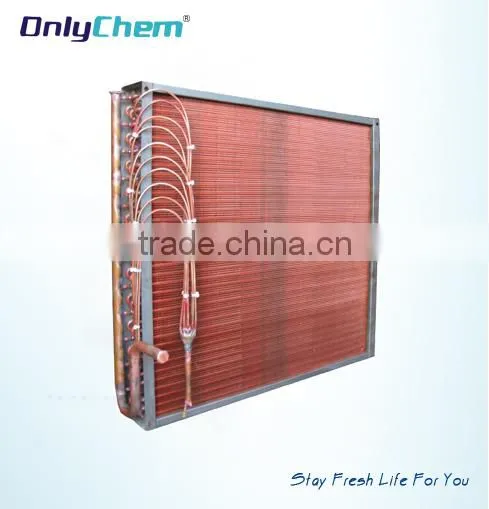

fin tube refrigeration evaporator coil
Specifications for fin tube refrigeration evaporator coil
(1)could be produced according to your drawing or sample
(2)a lot of mould

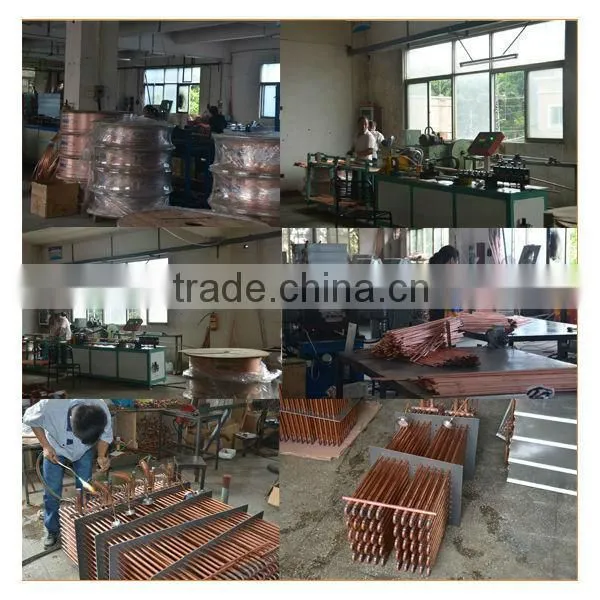

(3)factory directly manufacture
fin tube refrigeration evaporator coil
(1)Existing Mould specification list
copper tube diameter |
holds and rows pitch |
fin space |
holds array |

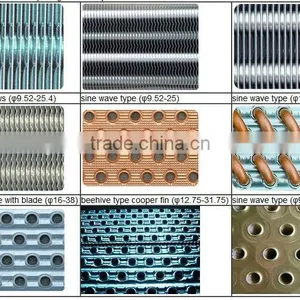

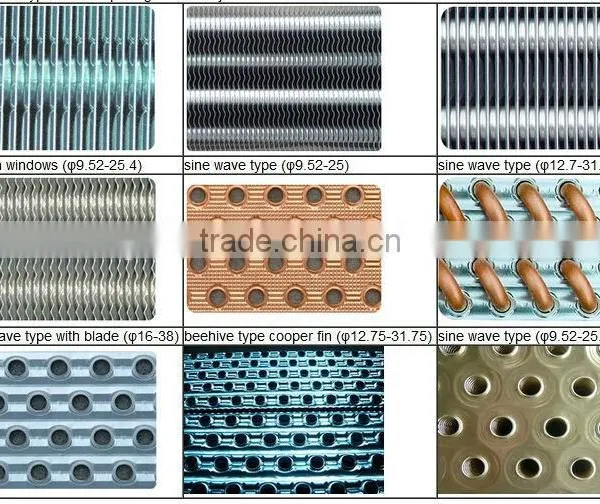

fin surface |
fin edge type |
defrost heater |
Φ15.88mm |
50×50mm |
4-10mm |
equilateral triangle |
sin-wave&corrugated |
flat+wave |
with |
Φ15.88mm |
38Χ33mm |
2.5-4mm |
equilateral triangle |
sin-wave&corrugated |
flat+wave |
with |
Φ12.7mm |
31.75Χ27.5mm |
3-9mm |
equilateral triangle |
sin-wave&corrugated |
flat+wave |
with |
Φ9.52mm |
25Χ21.65mm |
1.5-6mm |
equilateral triangle |
sin-wave&corrugated |
flat+wave |
with |
Φ9.52mm |
31.75Χ27.5mm |
2.5-7.5mm |
equilateral triangle |
sin-wave&corrugated |
flat+wave |
with |
Φ9.52mm |
25χ21.65mm |
1.5-2.5mm |
equilateral triangle |
louver |
flat |
without |
Φ7.94mm |
25χ21.65mm |
1.5-3.5mm |
equilateral triangle |
flat |
flat+wave |
without |
Φ7.0mm |
21×12.7mm |
1.3-1.8mm |
equilateral triangle |
louver |
flat |
without |
(2) Copper tube for fin tube refrigeration evaporator coil
OD:Ø7mm,7.94mm,9.52mm,12.7mm,15.88mm
inner grooved tube and smooth tube
(3)Aluminium foil:bare or hydrophilic
(4)Leakage test for fin tube refrigeration evaporator coil
Not less than 3.0mpa air pressure for leakage test to ensure the tightness.
Fill nitrogen to keep pressure.
(5)End:
welded or filled with plastic capsv
Other Related products about fin tube refrigeration evaporator coil:

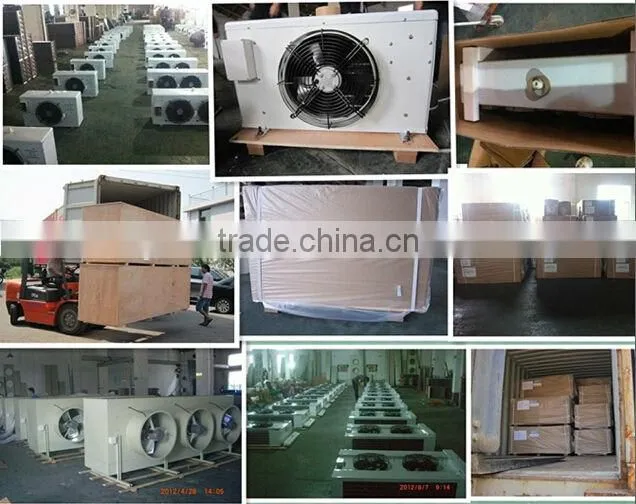

Our Package and transportation for fin tube refrigeration evaporator coil:
Why us:
The Proof of Quality:
Now we have customers in different countries and places, such as Canada, USA, Australia, New Zealand, Singapore, Argentina, Middle- East, Africa…
The Guarantee of Quality:
Reasonable design, Professional technicians, Skilled and steady production workers, Full-scale Equipments, Strict QA & QC system…
Custom-made Design:
We supply our design drawing according to customer practical situation.
Technique Support:
We can design and produce as your specification.
International Trade Operation:
We have concentrated on international trade of cold storage room line for more than 10 years, accumulated various experience from different customers of different countries. So we can update our operation in time according to our customers and new rules. It is helpful to clear custom and save cost and time for our customers.
