Electronic Components WXD3590 Slide Potentiometer Potentiometer Knob Joystick Potentiometer

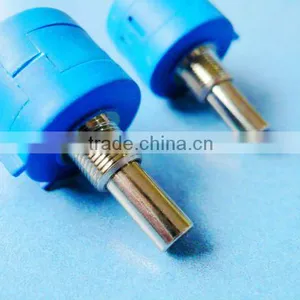

Electronic Components WXD3590 Slide Potentiometer Potentiometer Knob Joystick Potentiometer thumbnail-1

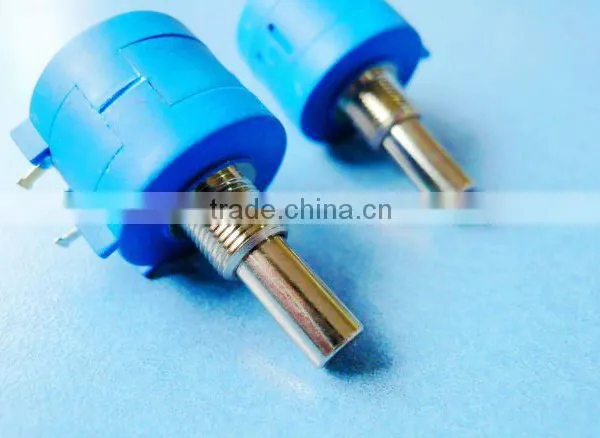

Electronic Components WXD3590 Slide Potentiometer Potentiometer Knob Joystick Potentiometer photo-1
Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Bonens
Model Number:
WXD 3590 POTENTIOMETER
Contact Supplier Request Quote Chat Now
Sichuan Qixing Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name Bonens
Model Number WXD 3590 POTENTIOMETER
Type Trimming Potentiometer
Technology Ceramic Composition
Resistance 100Ω~100KΩ
Resistance Tolerance ±10%
Rated Power 2W
Max. Operating Voltage 500V
Operating Temperature -55℃~+125℃

Specifications

1.3590 multi-turn potentiometer
2.Qquick delivery and various range of resistancce
3.RoHS compliant
4.ISO 9000 certifaction

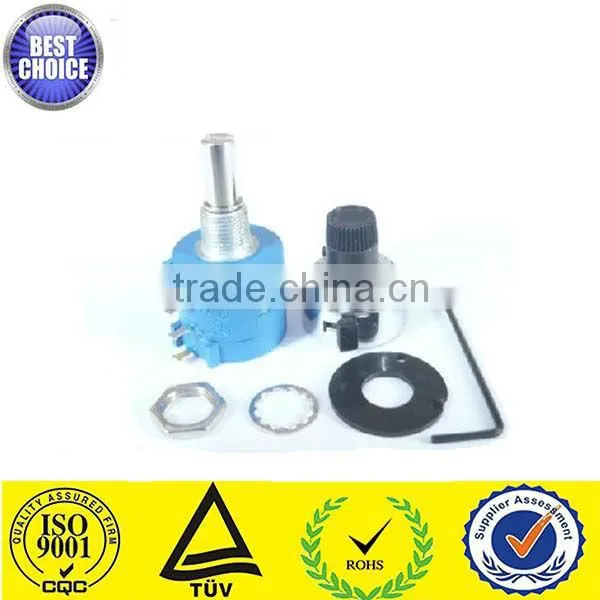

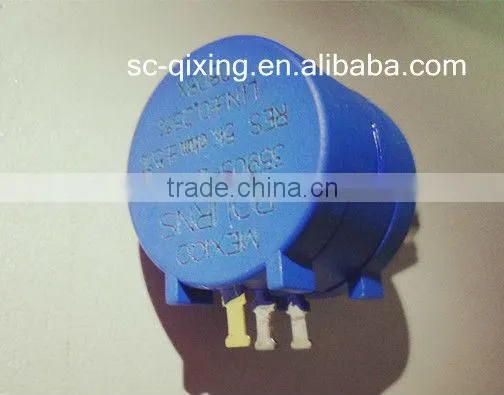

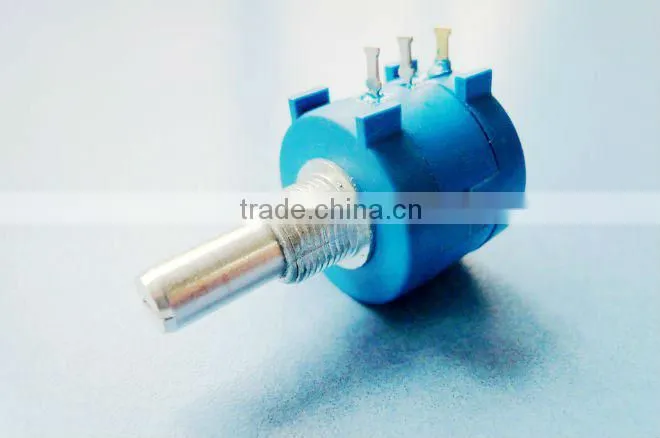

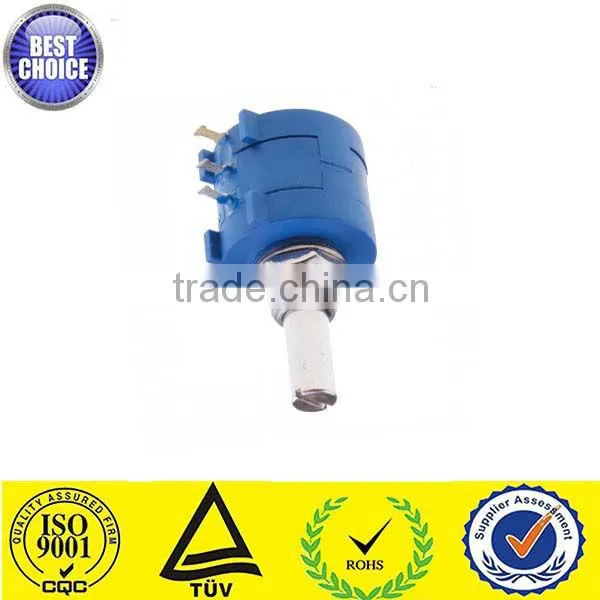

◊ Details of Pictures:



electronic components WXD3590 slide potentiometer potentiometer knob joystick potentiometerelectronic components WXD3590 slide potentiometer potentiometer knob joystick potentiometerelectronic components WXD3590 slide potentiometer potentiometer knob joystick potentiometer



electronic components WXD3590 slide potentiometer potentiometer knob joystick potentiometerelectronic components WXD3590 slide potentiometer potentiometer knob joystick potentiometerelectronic components WXD3590 slide potentiometer potentiometer knob joystick potentiometer





  ◊ Mechanical Parameter:





Electrical Characteristics

Range of nominal resistance

100Ω~100KΩ

Resistance tolerance


±2%, ±5%









Terminal resistance


≤±0.2%R or 5Ω

Peak Noise


≤100Ω

Insulation resistance


≥ 200MΩ (100V AC)

Withstand voltage


500V (DC or AC peak value)

Electrical angle

3600° ± 10 °





Environment Characteristics

Rated power

2W ( 300V 70 °C )

Temperature range


-55°C~+125°C

TCR


±100×10-6/°C

Collision (390m/S2, 4000 times)


ΔR≤±1%R

Vibration (10-500HZ, 0.75mm, 6h)


ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS

Temperature variation (-55°C/30min,
 +125°C/30min, 5 cycles)

ΔR≤±2%R,
 ΔUab/Uac≤±2%R

Climate category (IEC68-2-2)


ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ

Electrical endurance (2W, 1000h)


ΔR≤± 3%R

Mechanical endurance (200 cycles)


ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω

Steady damp heat (IEC68-2-3, Ca, 96h)


ΔR≤± 3%R, Insulation Resistance≥100MΩ,starting torque ≤20mN.m



Physical Characteristics

Total mechanical travel



3600° ± 10 °



Rotational torque

 2-10mN.m

Standard package


 50 pcs /box


Products of special resistance and specifications are provided.



•Products with linear accuracy of ±0.25% are provided.



•Products are corresponded to the general specifications of GB/T15298-94



◊ Work Flow





electronic components WXD3590 slide potentiometer potentiometer knob joystick potentiometerelectronic components WXD3590 slide potentiometer potentiometer knob joystick potentiometer











◊ Packaging











electronic components WXD3590 slide potentiometer potentiometer knob joystick potentiometer







◊ Certificate











 electronic components WXD3590 slide potentiometer potentiometer knob joystick potentiometerelectronic components WXD3590 slide potentiometer potentiometer knob joystick potentiometerelectronic components WXD3590 slide potentiometer potentiometer knob joystick potentiometerelectronic components WXD3590 slide potentiometer potentiometer knob joystick potentiometer











  For more information, pls don't hesitate to contact us!
