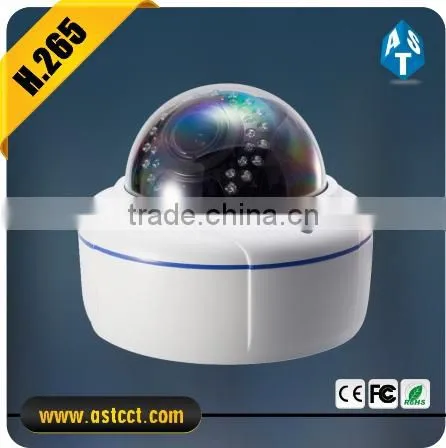

HI3516A IR Night Vision Dome Camera Low Lux 4.0MP P2p H.265 ip Camera Support Ip66 ir Distance 30 Meter Cctv Camera

HI3516A IR Night Vision Dome Camera Low Lux 4.0MP P2p H.265 ip Camera Support Ip66 ir Distance 30 Meter Cctv Camera thumbnail-1
HI3516A IR Night Vision Dome Camera Low Lux 4.0MP P2p H.265 ip Camera Support Ip66 ir Distance 30 Meter Cctv Camera thumbnail-2
HI3516A IR Night Vision Dome Camera Low Lux 4.0MP P2p H.265 ip Camera Support Ip66 ir Distance 30 Meter Cctv Camera thumbnail-3
HI3516A IR Night Vision Dome Camera Low Lux 4.0MP P2p H.265 ip Camera Support Ip66 ir Distance 30 Meter Cctv Camera thumbnail-4
HI3516A IR Night Vision Dome Camera Low Lux 4.0MP P2p H.265 ip Camera Support Ip66 ir Distance 30 Meter Cctv Camera thumbnail-5
HI3516A IR Night Vision Dome Camera Low Lux 4.0MP P2p H.265 ip Camera Support Ip66 ir Distance 30 Meter Cctv Camera thumbnail-6

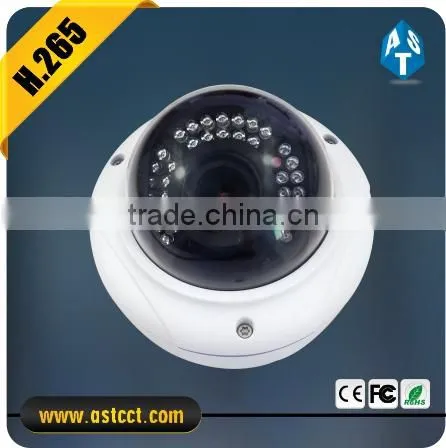

HI3516A IR Night Vision Dome Camera Low Lux 4.0MP P2p H.265 ip Camera Support Ip66 ir Distance 30 Meter Cctv Camera photo-1

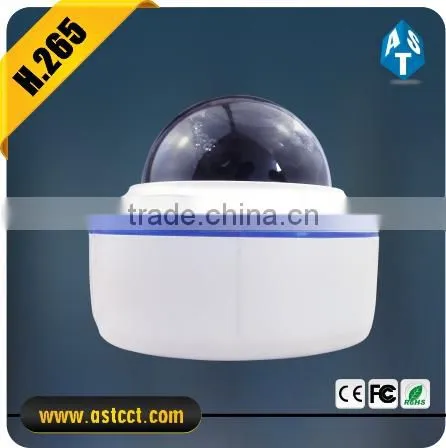

HI3516A IR Night Vision Dome Camera Low Lux 4.0MP P2p H.265 ip Camera Support Ip66 ir Distance 30 Meter Cctv Camera photo-2

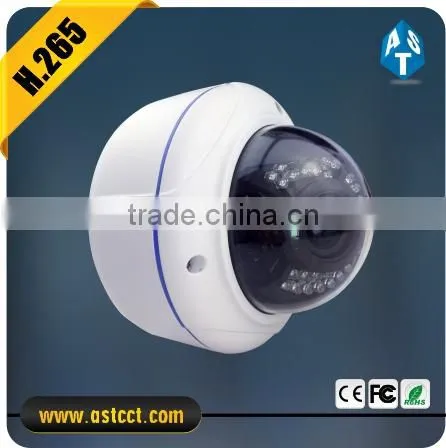

HI3516A IR Night Vision Dome Camera Low Lux 4.0MP P2p H.265 ip Camera Support Ip66 ir Distance 30 Meter Cctv Camera photo-3

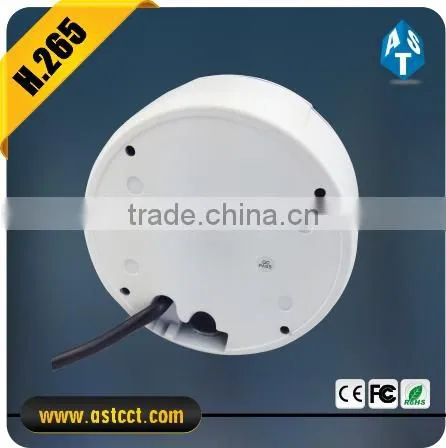

HI3516A IR Night Vision Dome Camera Low Lux 4.0MP P2p H.265 ip Camera Support Ip66 ir Distance 30 Meter Cctv Camera photo-4
HI3516A IR Night Vision Dome Camera Low Lux 4.0MP P2p H.265 ip Camera Support Ip66 ir Distance 30 Meter Cctv Camera photo-5
HI3516A IR Night Vision Dome Camera Low Lux 4.0MP P2p H.265 ip Camera Support Ip66 ir Distance 30 Meter Cctv Camera photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AST
Model Number:
ASIH30-D11-3421
Contact Supplier Request Quote Chat Now
Shenzhen Anxinshi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name AST
Model Number ASIH30-D11-3421
Type Digital Camera
Style Dome Camera
Sensor CMOS
Technology Infrared
Special Features Waterproof / Weatherproof

HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera





HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera



HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera





HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera



HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66  ir distance 30 meter cctv camera



Camera:
1/3" 4.0 Megapixels Progressive Scan OV 4689 CMOS, Hisilicon Hi3516A Chipset, the highest resolution of 2592*1520, 0.05 Lux@ F1.2 (color); 0.01 Lux@ F1.2 (black and white ); TF card slot, IR - CUT (day/night), H.264 or H.265 video coding, double stream, ONVIF 2.4, be compatible many NVR and platform management software.



Key Features:
1.1/3" 4.0 Megapixels Progressive Scan OV 4689 CMOS
2.Max 25/30fps@ 4.0 Megapixels (2592*1520)
3.H.264/H.265 & MJPEG dual-stream encoding
4.Privacy Mask, Motion Detection
5 Support Onvif 2.4 protocol
6.IR Distance 30M
7. TF Card Slot,WDR≥120dB
8.NVR Compatible:Hikvision DaHua &the NVR With onvif Protocols
9.POE function
10.IP66 rating
11.Equipped with bracket





HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera



HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera



Mode Name and
Description		 ASIH30-D11-3421 4.0MP HD IP WDR Vari focal outside adjust  IR Bullet Camera
ASIH30-D11-3421
Camera Specification Media Processor Hi3516A + OV 4689
Image Sensor 1/3” 4.0 megapixels Progressive OV 4689 CMOS
Effective Pixels 2592(H)x1520(V)
Electronic Shutter Speed Auto (1/25 ~ 1/10000s)
Min. Illumination 0.05 Lux@ F1.2 (color), 0.01 Lux@ F1.2 (black and white)
S/N Ratio ≥50db(AGC OFF)
Lens Specifications 5Mpixes  Vari Focal 3.3-10.5mm Manual Iris
Day/Night Mode Auto,dual IR-Cut filter
IR Distance 30m
WDR Dynamic Range 120dB
White Balance Auto
Gain Control Auto
Digital Denoise 3D Digital Denoise
Compression Compression H.264/MJPEG/H.265
Resolution 2592*1520/2048*1520/1080P(1920×1080)/D1(704×576)/VGA(640*480)/QVGA(320×240)
Main Stream Frame 2592*1520/2048*1520/1080P(1 ~ 25/30fps)
Sub Stream Frame D1/VGA/QVGA(1 ~ 25/30fps)
Bit Rate 32KB ~16Mbps; support VBR; CBR
Text Overlay Channel; Date & Time; Bit Rate
Network Data Storage Video record; Picture format
Trigger Manual; Automatic(motion detection; alarm; schedule; cycle )
Alarm data transmission FTP; E-mail; Browser; CMS
Protocol TCP/IP/UDP/RTP/RTSP/RTCP/HTTP/DNS/DDNS/DHCP/FTP/NTP/PPPOE/SMTP/UPNP
ONVIF ONVIF 2.4
Max. User Access 10 users; IE; Google; Firefox
Smart Phone Windows Mobile; iPhone; iPad; Android
Interface Audio in Support
Audio out Support
BNC Video out Support
Memory Card Support
RS422/RS485 Support
USB Support (64G USB flash/WIFI/3G)
Alarm in Support
Alarm out Support
IO Interface Support
General Parameters Operating Conditions -30℃ ~ 60℃,Humidity less than95%(Non-condensing)
Power Supply DC12V±10%/ PoE(Optional)
Power Consumption <6W
Weather Proof Rating IP66
Installation Support pending bracket and wall mount bracket
Dimension 148*148*122.4mm
Weight 0.7Kg





HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera



HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera











HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera





HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera



HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera



HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera



HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera



HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera



HI3516A IR night vision dome camera low lux 4.0MP p2p H.265 ip camera support ip66 ir distance 30 meter cctv camera
