Specifications
laizhou honglida machienry in shandong ,chinaThe vesicant net unit won the golden prize of the Chinese Patent Technology

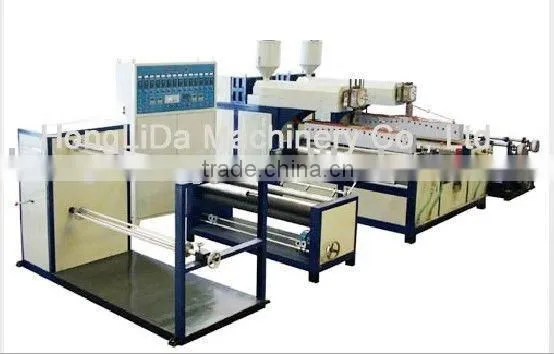

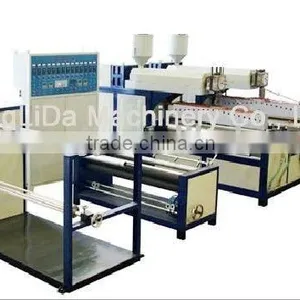

Polyethylene multilayer composite bubble (mat) film machine
I Purpose
Adopting forming one-time technique and basing on the original equipment, the multilayer composite air-cushion film equipment realizes continuous production of polyethylene composite bubble (mat) film with scientific, practical and reasonable structure design.
II Feature
Reasonable design, stable and reliable function, easy operation and maintenance.
Adopt 38CrMoALA nitriding process in making screw barrel that has long lifetime.
Realize high timing prevision, large scope, low consumption, reliable operation by adopting frequency conversion.
Adopt infrared energy-saving heater, intelligent digital automatic temperature controller realize high efficiency and low consumption.
III Main technology parameter
Type |
QDF-1500 |
QDF-1200 |
QDF-600 |
Main and auxiliary extruder screw diameter |
φ75mm φ65mm |
φ65mm φ55mm |
φ55mm φ45mm |
Aspect ratio |
28:1 |
28:1 |
28:1 |
Main and auxiliary extruder electric power |
18.5KW 15KW |
15KW 11KW |
11KW 7.5KW |
Product width |
1500 mm |
1200 mm |
600 mm |
Main specification bubble(Arbitrary customized) |
φ6×3.2mm φ10×3.4mm φ25×10mm φ30×10mm |
||
Output |
60-100kg/h |
50-90 kg/h |
20-60 kg/h |
Installed capacity |
98kw |
85kw |
64kw |
Dimension |
10m×8.0m×2.5m |
10m×7.5m×2.5m |
10m×6.5m×2.5m |
(Friendly reminder: If you want to know further information and technology parameter, please contact with me directly:
