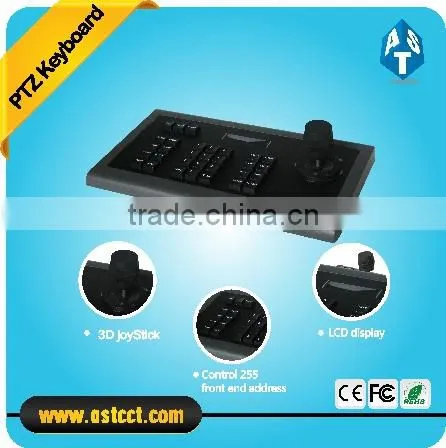

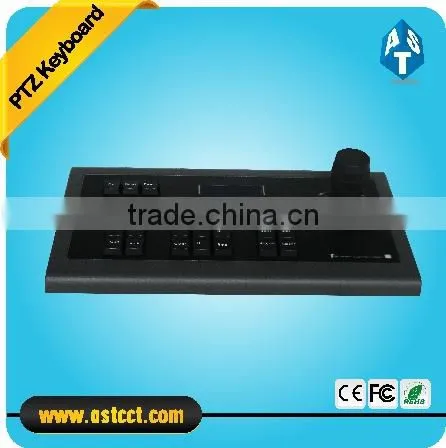

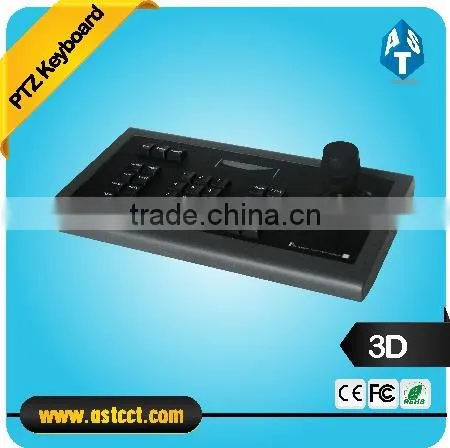

High Speed Dome Camera 3D PTZ Camera Keyboard Controller Support Pelco-d, Pelco-d, Panasonic, Hikvision Protocol RS485 Control

Application:
Used in the places where need quick control for the high speed dome camera, PTZ, motorized lens, outdoor wiper shield, etc.
Production Instruction:
Control keyboard is the indispensable rear-end control device in integrated security system, it is specially designed for the quick control of speed dome camera and PTZ which are unable to control conveniently through DVR, let the actual control person control the front end more easily.
Specific Function:
*.Display the current control address’s agreement and baud-rate real time.
*.Unique control code study function, the customer can revise the control code instruction voluntarily
*.Refurbish the firmware program on line
*.Maximum sub-control:16
Specification
*.RS485 control bus, control 255 front end address and connect 128 devices in parallel simultaneously at the most
*.All input and output communication port use anti-radar design, powerful anti-jamming performance, the standard transmitting distance is 1200 meters
*.Good communication compatibility, built-in many kinds of agreements
*.Keyboard operation password on/off/lock function
*.Key-press warning on/off function
*.Speed dome camera infinitely variable speed control
*.LCD display
| Model | ASKB10 |
| Protocol | Pelco-d, Pelco-d, Panasonic, Hikvision etc. |
| Baud rate(bps) | 1200, 2400, 4800, 9600, 19200 |
| Control Address | Control 255 dome camera, decoder at the most, address code:0-254 |
| Communication Mode | RS485 half-duplex |
| Cascade connection number | 16 sub-control at most, controller ID:0-15 |
| Joystick | 3D(control: up, down, left, right, zoom) |
| 2D(control: up, down, left, right ) | |
| Interface Mode | 5PIN pressing line port |
| Warning Tone | Key-touch beep on/off |
| Power Supply | DC 12V±10% |
| Power Consumption | 6W MAX |
| Working Temperature | 0°C-50°C |
| Store Temperature | -20-70°C |
| Dimension (mm) | 420*260*170 |
| Weight (Kg) | CT type: 2.8, C type: 2.7 |
| Net weight | 1.6Kg |
