PP polypropylene corrugated sheet machine
Polypropylene corrugated sheet making machine
General information of PP polypropylene corrugated sheet machine
PP hollow profile sheet is widely used in many fields such as decorations in building, advertisement, pakage of industrial products, sound insulation on railway or highway, and sigh board.
It has distinct advantages over other package such as corrugated cards and paper packing. PP hollow sheet has a bright market in package industry.
1.Specifications of PP polypropylene corrugated sheet machine
| Number | Item | Specification |
1 |
use material | PP granule, Filler(CaCO3),PP recycle, PP Mmasterbatch |
| 2 | product width |
1250-2550mm
|
| 3 | product thickness |
2mm-20mm
|
| 4 | Max output |
260-500kg/h
|
| 5 | production line speed |
1-10m/min
|
| 6 | voltage | 55-160kw |
2. Components of PP polypropylene corrugated sheet machine
|
Number
|
Item | Unit | Quantity |
| 1 |
Extruder with single screw
|
set | 1 |
| 2 |
Screen Changer
|
set | 1 |
| 3 |
Die
|
set | 1 |
| 4 |
Vaccum Calibrator
|
set | 1 |
| 5 |
First haul-off unit
|
set | 1 |
| 6 |
Drying oven
|
set | 1 |
| 7 |
Cooling Device
|
set | 1 |
| 8 |
Second haul-off unit
|
set | 1 |
| 9 |
Cutting device
|
set | 1 |
| 10 |
Electrical control Cabinet
|
set | 1 |
| 11 |
Stacker Unit
|
set | 1 |
| 12 |
Screw feeder
|
set | 1 |
3. Advantages of PP polypropylene corrugated sheet machine
Extruder: special designed screw, advanced temperature control system, ensure stable extrusion and high output.
Die: super quality alloy lips and adjustable restrict bars, provide even pressure.
Vacuum calibrator: heat-convection system with array interleaved, guarantees precision of calibration. The vacuum system consists of two independent subsystem, equipped with many closed vacuum lines.
Electrical control system: adopt microprocessor unit(PLC) to control precise parameters and optimize the operation features.
4. Benefits of PP polypropylene corrugated sheet machine
1. Required high production efficiency
2. Production flexibility( controllable sheet thickness and width, for example, you can produce 2-6mm thick sheet with the same mould or machine)
3. Reliability and stability
4.Excellent Adaptability to different raw material and reach over 30% production cost reduction.
5. Size and shape diversity of finished products

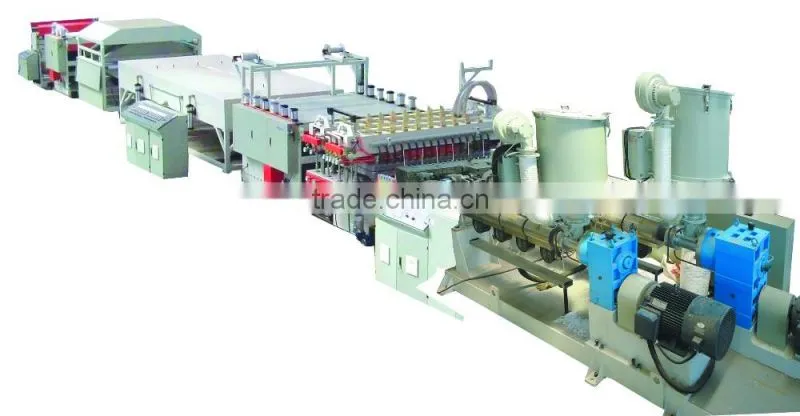

5. Pictures of PP polypropylene corrugated sheet machine
2mm PP polypropylene corrugated sheet machine are CE certified, which assures your legal right.
6mm PP polypropylene corrugated sheet machine are ISO9001:2008 certified, which guarantee the product quality.
8mm PP polypropylene corrugated sheet machine are professionally manufactured through the plastic equipment with more than 15 years' experience.
10mm PP polypropylene corrugated sheet machine offer the custom service and engineer available to service overseas, which can meet your requirement better and solve the problem in the process of operation.
wooden case for outside is used to pack the PP polypropylene corrugated sheet machine
and inside is PE waterproof film.
Service for PP polypropylene corrugated sheet machine :
Presale Service:
1)Select equipment model;
2)Design and manufacture products according to clients' special requirements
3)Train technical personnel for clients
Service during the sale
1)check products ahead of delivery
2)Help clients to draft solving plans
After-sale Service
1)Provide considerate service to minimize clients' worries
2)help clients to prepare for the first construction scheme
3)Install and debug the equipment
4)Train operators for clients
5)Examine the machine
6)take initiatives to eliminate the troubles rapidly
7)Provide perfect service
8)Provide technical exchange.
Qulaity control of PP polypropylene corrugated sheet machine
