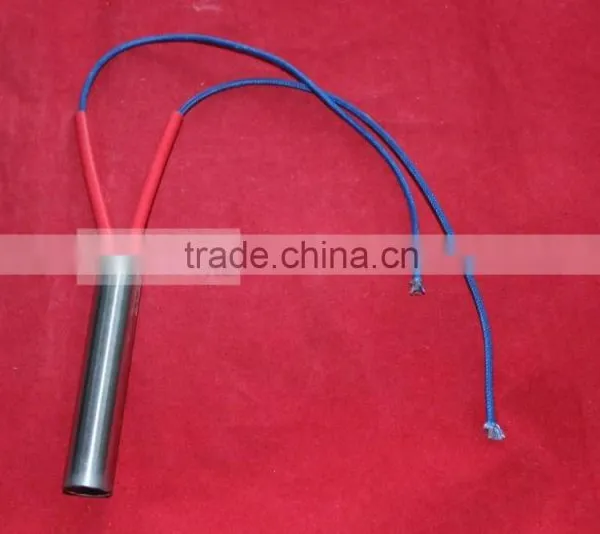

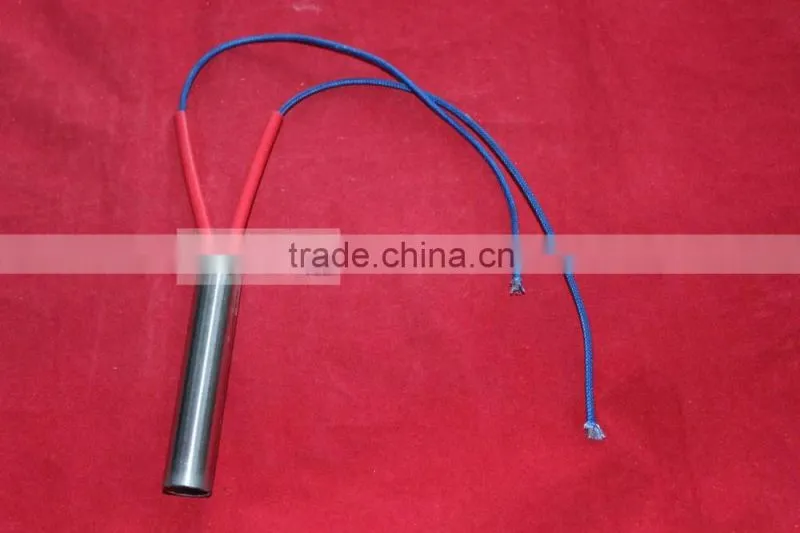

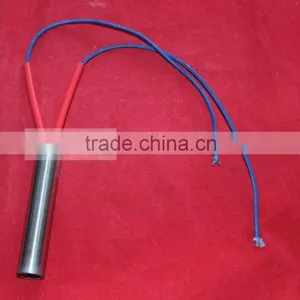

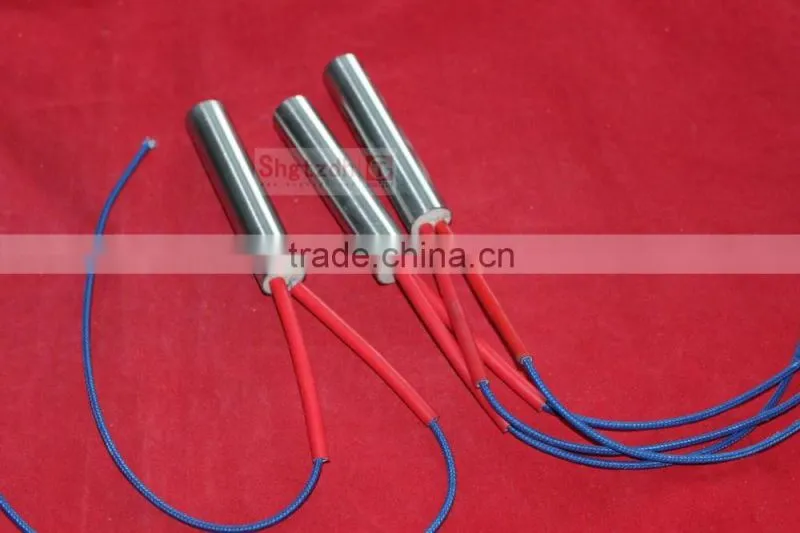

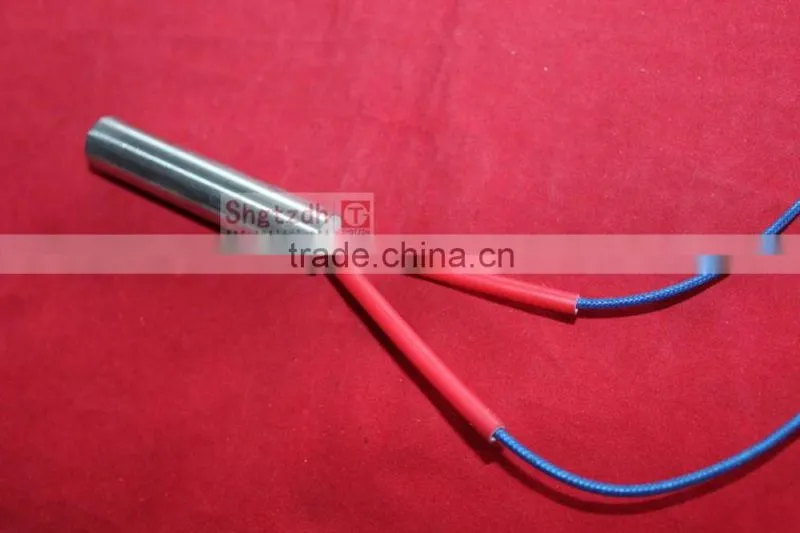

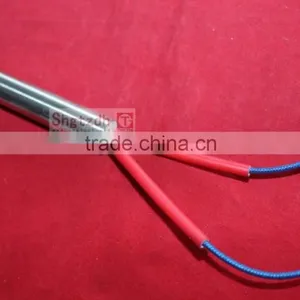

Fast heat ceramic cartridge heater
Technical Specification:
1. Voltages available: 380V, 240V, 220V, 110V, 36V, 24V or 12V
Wattage Tolerance: +5%, -10%
2. Max operating temp: 870oC (1600F)
3. Length tolerance: ± 2% or 3.2mm (1/8”), whichever is greater.
4. Camber tolerance: 1.7mm per meter (0.020” per foot).
5. Diameter tolerance: Diameter at each end may vary +0.05mm -0.1mm (+.002" -.004")
6. Delivery time: 7-14 working days. However, many sizes are kept in stock. Please contact the factory for assistance.
7. Internal thermocouple: type J or K;
8. Thermocouple Location: Disc End, Sheath, Center of Heater;
9. Insulation resistance (cold): ≥ 50 MΩ;
10. Maximum leakage current (cold): ≤ 0.5 mA;
Applications:
1. Medical: Dialysis, Sterilization, Blood Analyzer,Nebulizer,
Blood/Fluid Warmer, Temperature Therapy
2. Telecommunications: Deicing, Enclosure Heater
3. Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
4. Food Service: Steamers, Dish Washers,
5. Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
