Home > Industrial Equipment & Components > Welding Equipment > MIG Welder > IGBT DC Inverter Single Phase High Frequency Portable and Compact 3 in 1 CO2 Gas Tig/ SMAW /mig/mag Pulse Welder MIG-200P

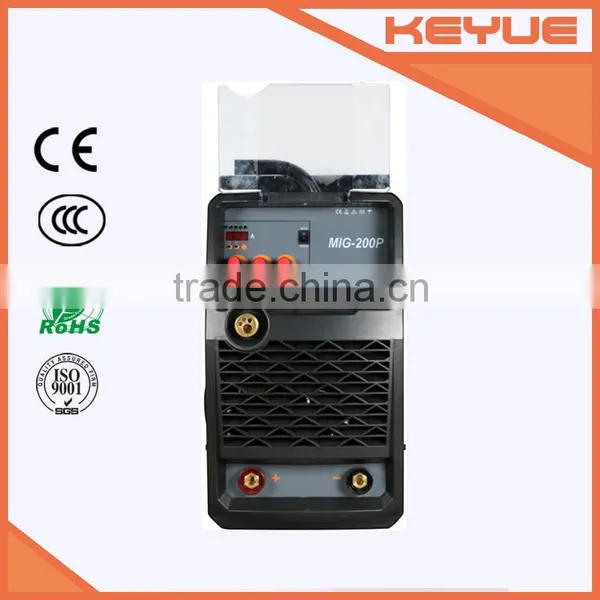

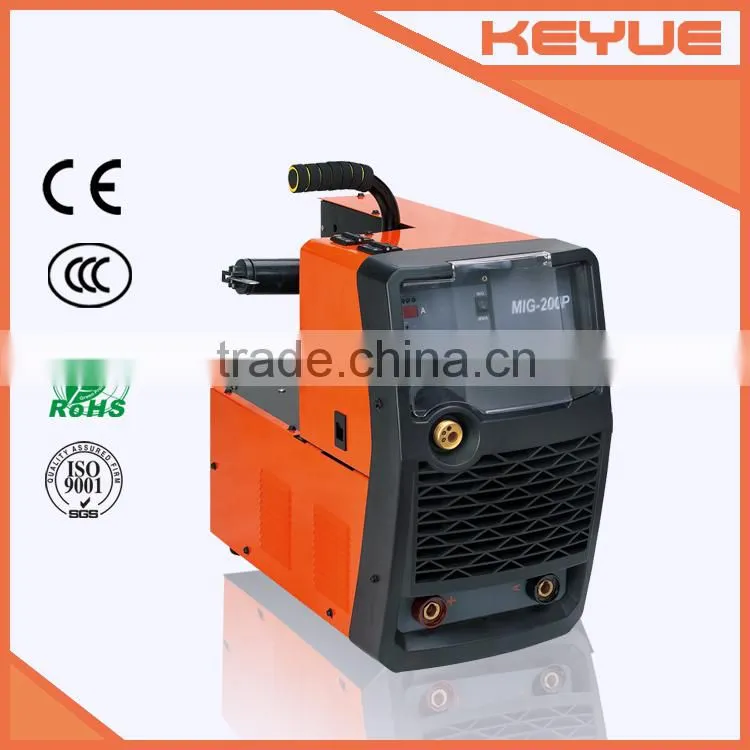

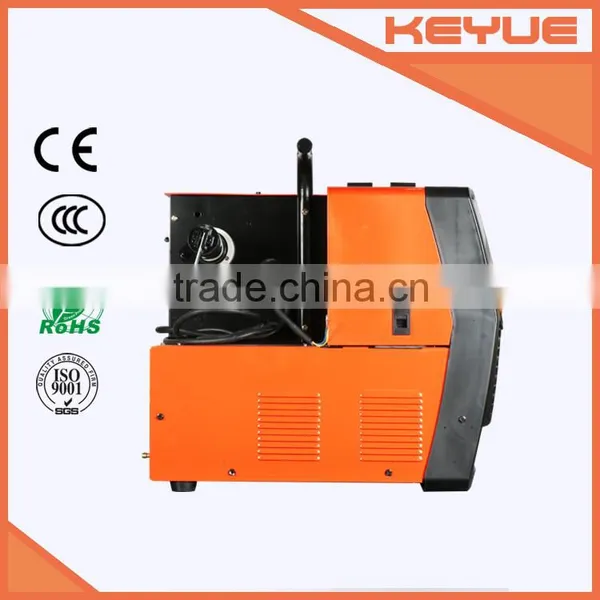

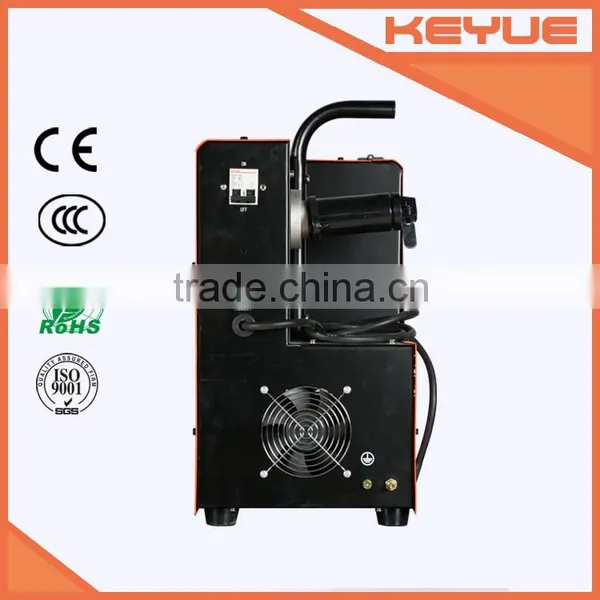

IGBT DC Inverter Single Phase High Frequency Portable and Compact 3 in 1 CO2 Gas Tig/ SMAW /mig/mag Pulse Welder MIG-200P

IGBT DC Inverter Single Phase High Frequency Portable and Compact 3 in 1 CO2 Gas Tig/ SMAW /mig/mag Pulse Welder MIG-200P thumbnail-1
IGBT DC Inverter Single Phase High Frequency Portable and Compact 3 in 1 CO2 Gas Tig/ SMAW /mig/mag Pulse Welder MIG-200P thumbnail-2
IGBT DC Inverter Single Phase High Frequency Portable and Compact 3 in 1 CO2 Gas Tig/ SMAW /mig/mag Pulse Welder MIG-200P thumbnail-3
IGBT DC Inverter Single Phase High Frequency Portable and Compact 3 in 1 CO2 Gas Tig/ SMAW /mig/mag Pulse Welder MIG-200P thumbnail-4
IGBT DC Inverter Single Phase High Frequency Portable and Compact 3 in 1 CO2 Gas Tig/ SMAW /mig/mag Pulse Welder MIG-200P photo-1
IGBT DC Inverter Single Phase High Frequency Portable and Compact 3 in 1 CO2 Gas Tig/ SMAW /mig/mag Pulse Welder MIG-200P photo-2
IGBT DC Inverter Single Phase High Frequency Portable and Compact 3 in 1 CO2 Gas Tig/ SMAW /mig/mag Pulse Welder MIG-200P photo-3
IGBT DC Inverter Single Phase High Frequency Portable and Compact 3 in 1 CO2 Gas Tig/ SMAW /mig/mag Pulse Welder MIG-200P photo-4
US$ 304 - 319 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
KEYUE
Contact Supplier Request Quote Chat Now
Keyue Welding Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai/NingBo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name KEYUE
Model Number MIG-200P
Wire Feeding Speed 2.5-16 M/min
Dimensions 566*280*550
Weight 25kg
Usage Pulse MIG/MAG
Voltage AC220V
Power(W) 6.2KVA
Certification CCC/CE/ROHS
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



Product Description



INVERTER PULSE MIG/MAG WELDING MACHINE

  • Thin plate expert, suitable for welding thin metal plate
  • MCU Pulse MIG, 3 functions in 1, MMA&MIG&Pulse MIG
  • Suitable for welding mild steel, stainless steel, special for welding aluminum and aluminum alloy
  • Over current protection, over load protection, under voltage protection is available
  • Widely applied to automobile maintenance



IGBT DC Inverter single phase high frequency portable and compact 3 in 1 CO2 gas tig/ SMAW /mig/mag pulse welder MIG-200P


 IGBT DC Inverter single phase high frequency portable and compact 3 in 1 CO2 gas tig/ SMAW /mig/mag pulse welder MIG-200P





Technical Data



Model MIG-200P

Rated input voltage(V)

 1PHAC220V±15%
Rated input power(KVA) 6.2
Rated input current(A) 28
Rated output 23.3V/185A
Output current(A) 30-185
No-load voltage(V) 54±5

Rated duty cycle(%)

(40℃ 10min)

 40%: 185A    100%: 117A
Efficiency(%) 70
Protection grade IP21
Insulation grade F
 Type of wire feeder  Built-in
Net weight(KG) 21.4
Gross weight(KG) 25
Dimension of machine(mm) 566×280×550
Dimension of packing1V1(mm) 630×400×610



IGBT DC Inverter single phase high frequency portable and compact 3 in 1 CO2 gas tig/ SMAW /mig/mag pulse welder MIG-200P

   IGBT DC Inverter single phase high frequency portable and compact 3 in 1 CO2 gas tig/ SMAW /mig/mag pulse welder MIG-200P

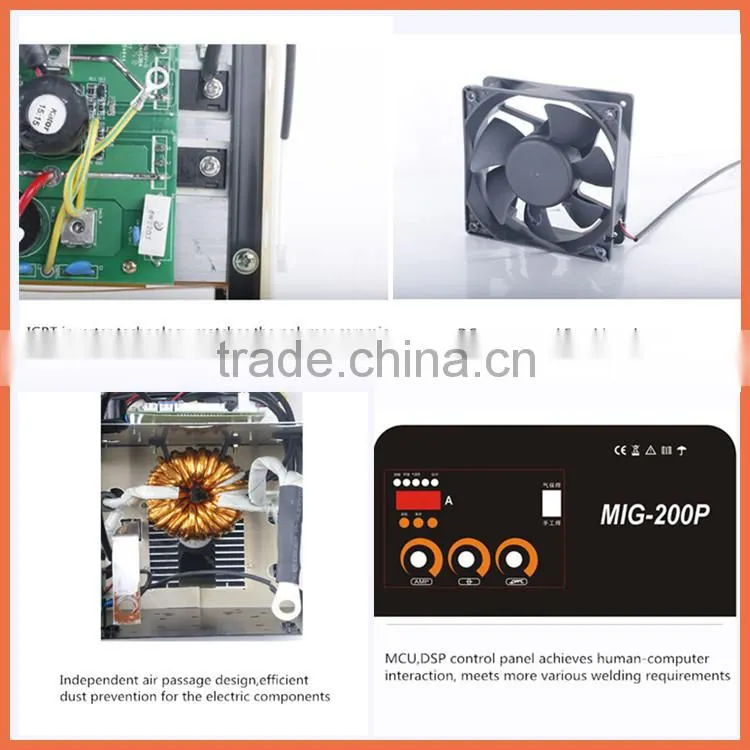

High quality components



IGBT DC Inverter single phase high frequency portable and compact 3 in 1 CO2 gas tig/ SMAW /mig/mag pulse welder MIG-200P
   IGBT DC Inverter single phase high frequency portable and compact 3 in 1 CO2 gas tig/ SMAW /mig/mag pulse welder MIG-200P





Accessories



IGBT DC Inverter single phase high frequency portable and compact 3 in 1 CO2 gas tig/ SMAW /mig/mag pulse welder MIG-200P
