IGBT DC Inverter Three Phase High Frequency Heavy Duty CO2 Gas GTAW/SMAW/mig/mag Industrial Welding Machine MIG-500
US$ 565 - 594
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
KEYUE
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI&NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IGBT DC Inverter Three Phase High Frequency Heavy Duty CO2 Gas Tig/SMAW/mig/mag Industrial Welding Equipment MIG-500US$ 565 - 594MOQ: 1 Set -
IGBT DC Inverter Three Phase High Frequency Heavy Duty CO2 Gas Tig/SMAW/mig/mag Industrial Welder MIG-500US$ 565 - 594MOQ: 1 Set
-
IGBT DC Inverter Three Phase High Frequency Heavy Duty CO2 Gas Tig/SMAW/mig/mag Industrial Welding Machine MIG-500US$ 565 - 594MOQ: 1 Set
-
IGBT DC Inverter Three Phase High Frequency Heavy Duty CO2 Gas Tig/arc/mig/mag Industrial Welding Equipment MIG-500US$ 565 - 594MOQ: 1 Set
-
IGBT DC Inverter Plastic Panel Three Phase High Frequency Heavy Duty CO2 Gas Tig/arc/mig/mag Industrial Welder MIG-500US$ 565 - 594MOQ: 1 Set
Condition
New
Place of Origin
Zhejiang, China
Brand Name
KEYUE
Model Number
MIG-500
Wire Feeding Speed
18m/minutes
Dimensions
650*340*590
Weight
37.5KG
Usage
MMA&MIG
Voltage
380
Power(W)
24.3KVA
Certification
CCC,CE,ROHS
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
INVERTER DC CO2 GAS SHIELDED WELDING MACHINE
- Support MMA, MIG, Lift TIG 3 functions
- IGBT technology, the core adopts advanced IGBT inverter device
- Suitable for welding metal plate with thickness above 0.8mm
- Inductance control for arc stability and spatter control
- Digital voltage and ampere meters
- Wire size selection, do a favor to quick matching the welding parameter
- Over current and over voltage protections are available
- Small splashing and great penetration
- Energy saving- compared with the traditional SAW machine more efficient
- Widely used in electric power, steel structure, shipbuilding and other industries
|
|
Technical Data |
| Model | MIG-500 |
| Rated input voltage (V) | 3PHAC380 ±15% |
| Rated input power(KVA) | 24.3 |
| Rated input current(A) | 37 |
| Rated output | 39V/500A |
| Output current (A) | 60-500 |
| No-load voltage(V) | 80 ± 5 |
| Duty cycle (%) | 60%: 500A 100%: 387A |
| Efficiency (%) | 80 |
| Protection grade | IP21 |
| Insulation grade | F |
| Type of wire feeder | seperated |
| Net weight of machine(KG) | 37.5 |
| Gross weight of machine packing(KG) | 40.7 |
| Dimension of machine (mm) | 650×340×590 |
| Dimension of packing- machine (mm) | 740×400×630 |
|
|

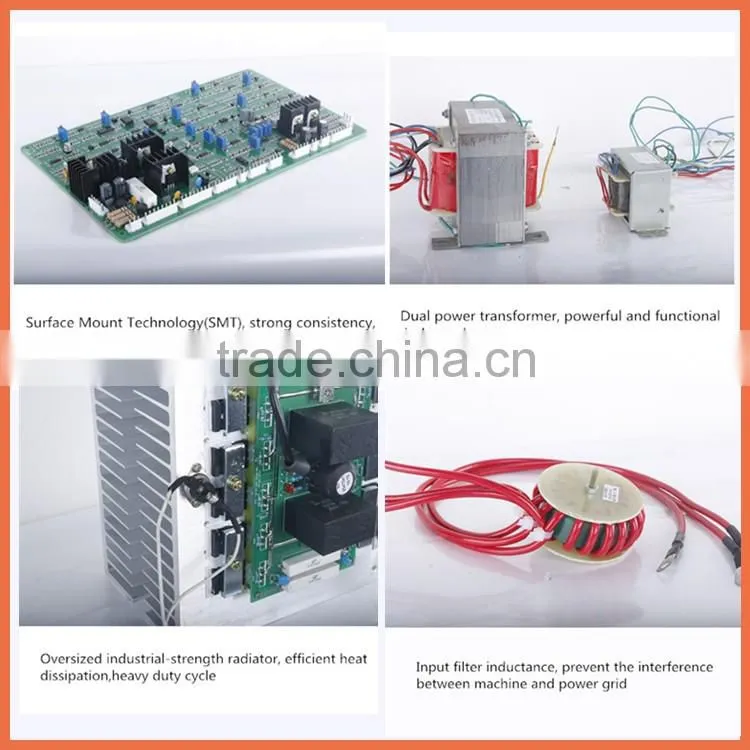

High quality components |
|
|

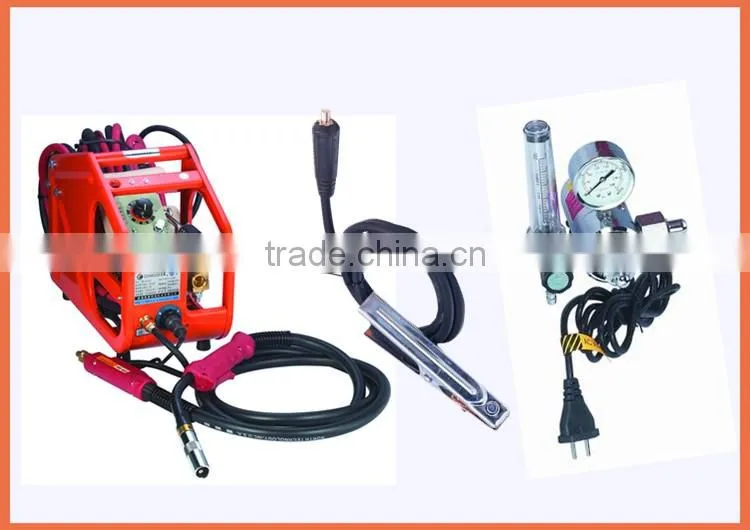

Accessories |
