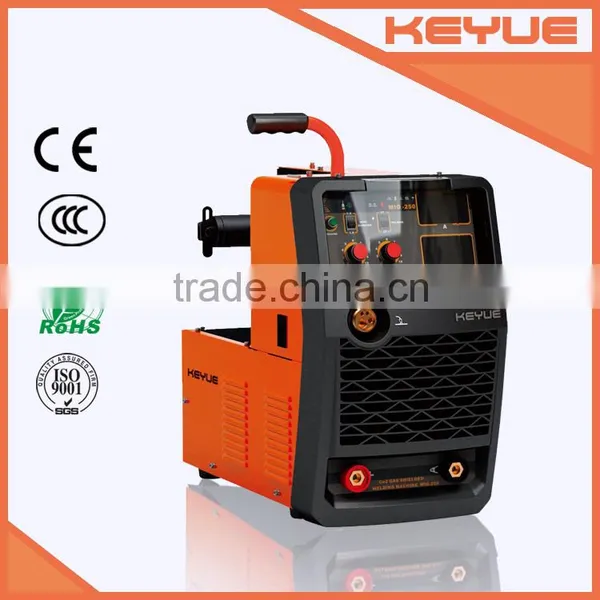

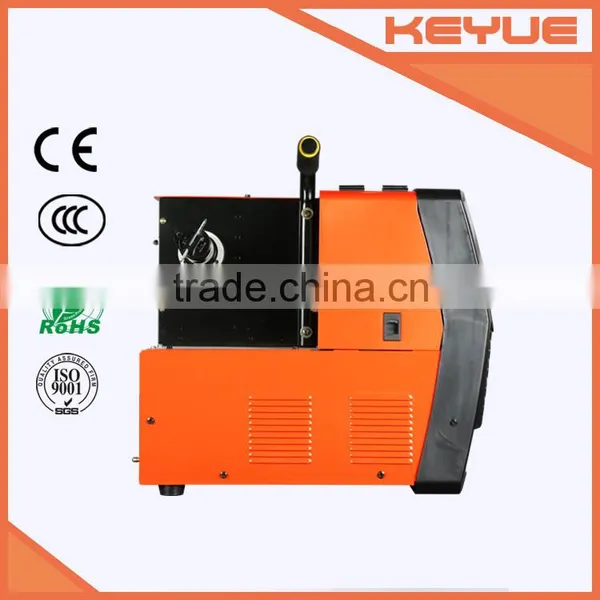

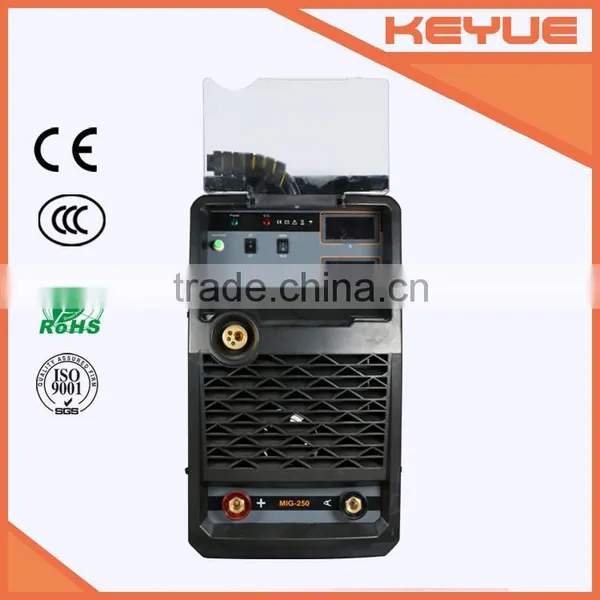

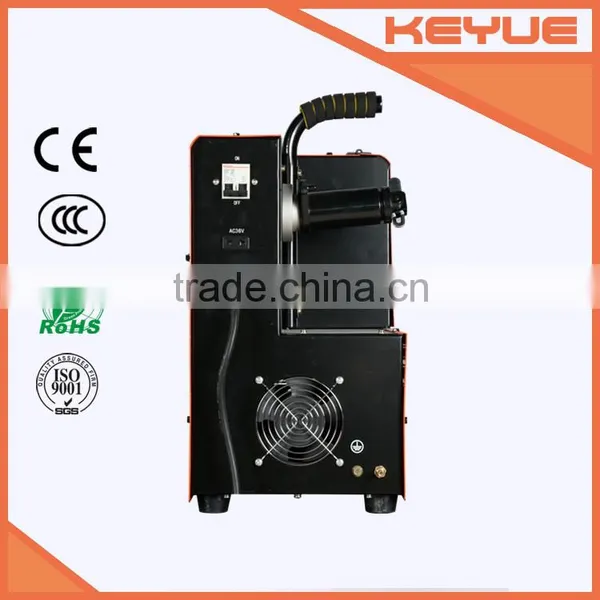

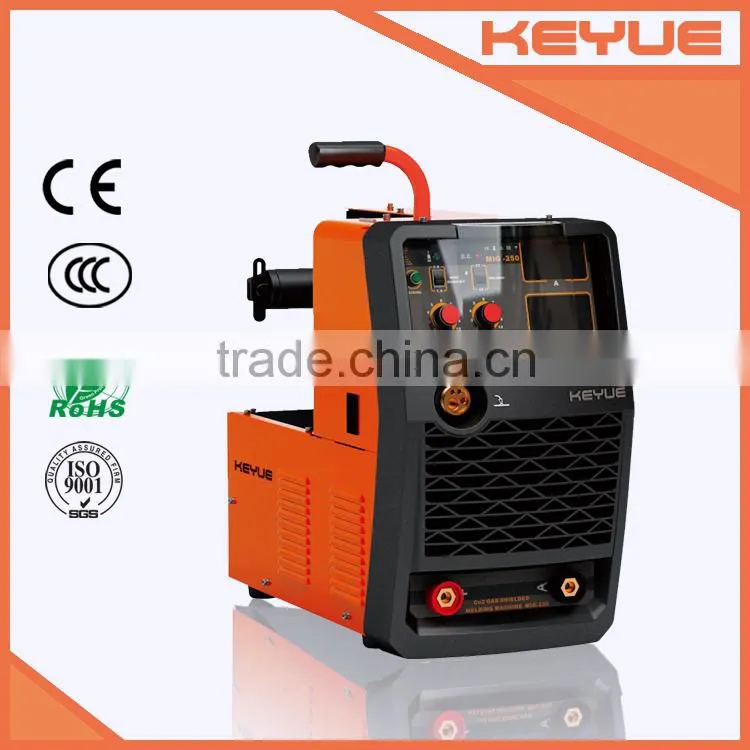

IGBT DC Inverter Three Phase High Frequency Portable and Compact CO2 Gas Tig/arc/mig/mag Welder Mig-250

Name: IGBT DC Inverter Three Phase High Frequency Portable and Compact CO2 Gas Tig/arc/mig/mag Welder Mig-250
Brand: KEYUE
SKU: 102036633

US$ 270 - 283 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

KEYUE

Keyue Welding Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI&NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name KEYUE

Model Number MIG-250

Wire Feeding Speed 16m/minutes

Dimensions 610*400*605

Weight 29KG

Usage MIG MAG Welding

Voltage 380V

Power(W) 8.3KVA

Certification CCC,CE,ROHS

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

INVERTER DC CO2 GAS SHIELDED WELDING MACHINE

Support MMA, MIG, Lift TIG 3 functions
IGBT technology, the core adopts advanced IGBT inverter device
Suitable for welding metal plate with thickness above 0.8mm
Inductance control for arc stability and spatter control
Digital voltage and ampere meters
Wire size selection, do a favor to quick matching the welding parameter
Over current and over voltage protections are available
Small splashing and great penetration
Energy saving- compared with the traditional SAW machine more efficient
Widely used in electric power, steel structure, shipbuilding and other industries

Technical Data

Model	MIG-250
Rated input voltage (V)	3PHAC380 ±15%
Rated input power(KVA)	8.3
Rated input current(A)	12.3
Rated output	26.5V/250A
Output current (A)	60-250
No-load voltage(V)	64 ± 5
Duty cycle (%)	60%: 250A 100%: 193A
Efficiency (%)	80
Protection grade	IP21
Insulation grade	F
Type of wire feeder	built-in
Net weight of machine(KG)	29
Gross weight of machine packing(KG)	33
Dimension of machine (mm)	610×400×605
Dimension of packing- machine (mm)	630×400×610
