AC Generator Parts AVR12A
Universal 7Amp 1/2 Wave Self Excited Dip-Switch Progmmable generator part avr
Features
- Voltage Regulation < ±1
- 220/440VAC Programmable Input
- Rugged Compact Desigh
- Soft Start Voltage Ramping
- With Under Frequency Roll Off Protection
- EMI Suppression
- Built-in High Capacity 10Amp Fuse
Generator parts AVR 12A Specification:
| Sensing input Voltage | 110/220/400VAC , 1 phase 2 wire |
| Power Input voltage | 100-260VAC , 1 phase 2 wire |
| Output voltage | max 90 VDC at 240VAC input |
| Current | Continuous 3 A , intermittent 5A for 10secs |
| Resistance | Min.15 ohm , Max 100ohm |
| Voltage Build-up | residual voltage at avr terminal >5VAC |
| Voltage Regulation | <±1% with 4% engine governing |
| Operating Temperature | (-40°C to +60°C |
| Storage Temperatue | (-65°C to +85°C |
| External Volts Adjutment | ±7% with 1k ohm 1 watt trimmer |
| EMI Suppression | Internal electromagnetic interference filtering |
| Unit Power Dissipation | Max.8 watt |
| Under Frequency Protection | 60Hz system presets knee point at 55Hz |
| Generator parts | 50Hz system presets knee point at 45Hz |
| Dimensions | 107mmL*82mmW*50mmH |

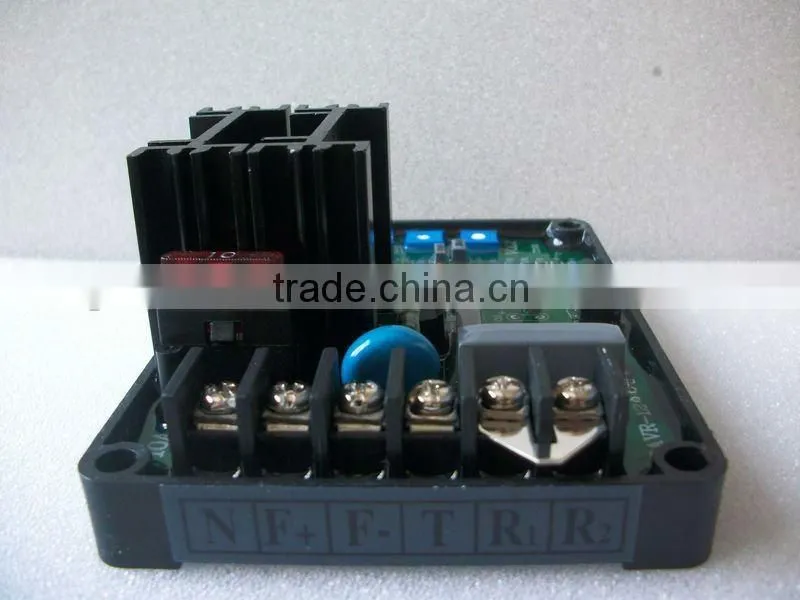

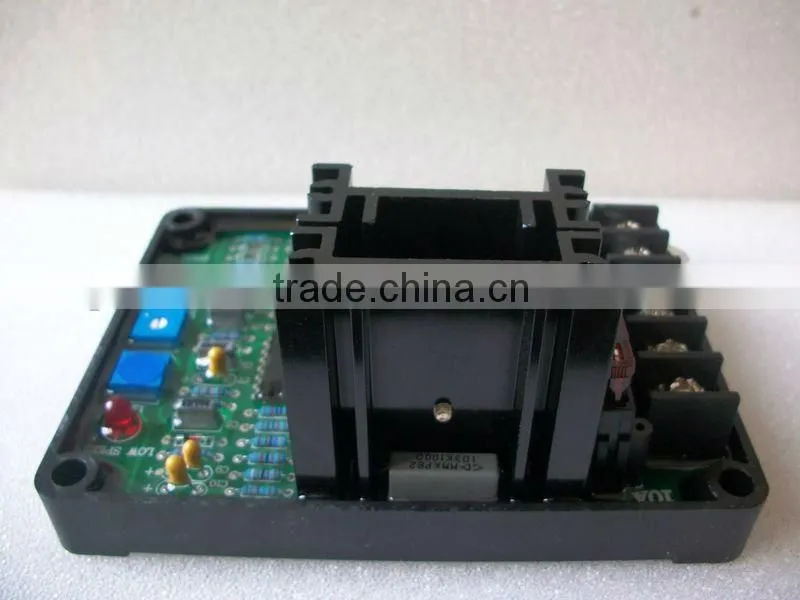

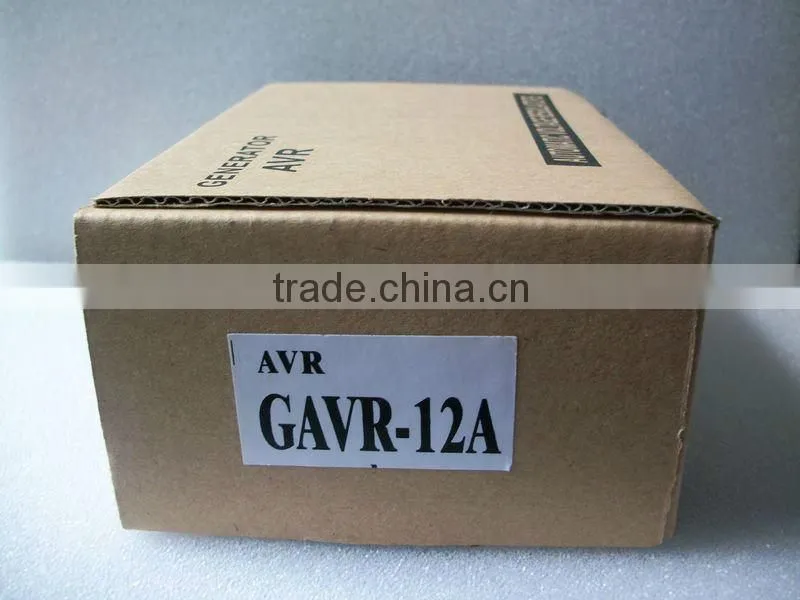

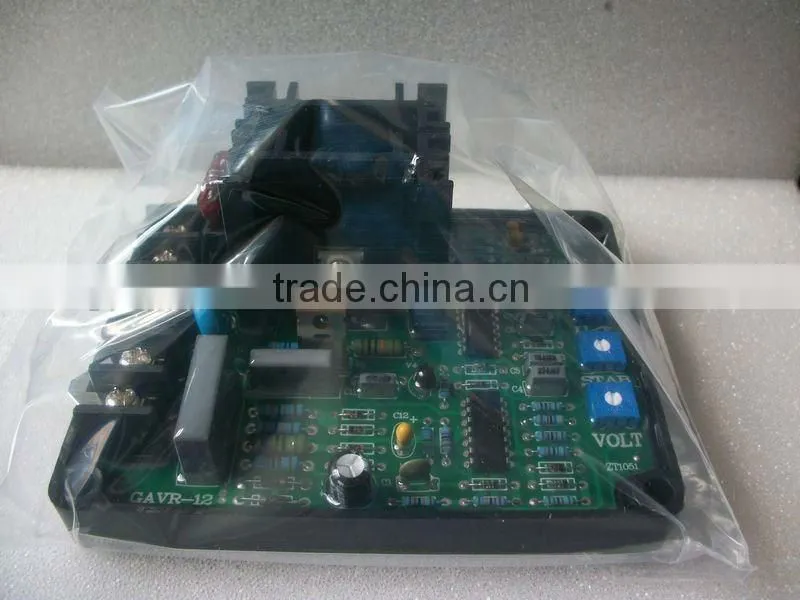

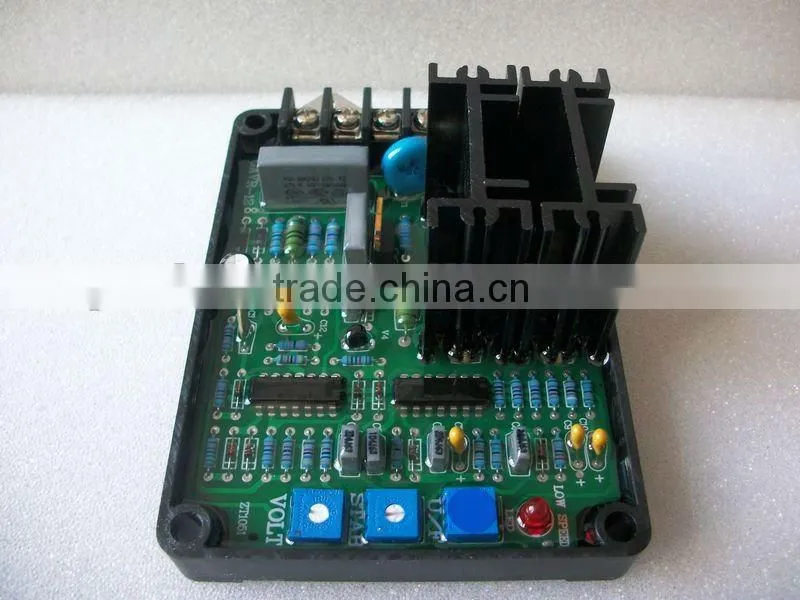

Universal AVR :Generator part Pictures:
Products line:
- Universal Generator parts :GAVR-8A,GAVR-12A,GAVR-15A/B,GB-15A
Delivery:
We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
Warranty and Returns:
Within one year,if any problem with Universal AVR :Generator part AVR 12A,buyers can returns it to exchange another new one,buyers are responsible for the shipping fees and customs duty.
Before returning please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
Delivery address:
Pls confirm the address and your TEL number for delivery to against any mistake.
Link to Generator part in our ALIEXPRESS STORE:/store/405763
Generator parts GAVR-12A is the model one of universal avr,this is for brushless generator whose power within 100-150kw.
Parbeau is 8 year manufacturer of Generator Parts & Accessories ,especially specilized in generator avr.
Want to repair you rgenerators? We have parts, diagrams, accessories and repair advice to help make your tool repairs easy.
Want to be a distributor?Our goodlooking shape ,package ,complete kinds of generator part make you be competitive.
Small qty? Online shop ,very convenient and easy for u to import item from international.
