Specifications
Types of Alternator Regulator1.for <50kw generator
2excitation system avr
3.OEM Service is available
Types of Alternator Regulator

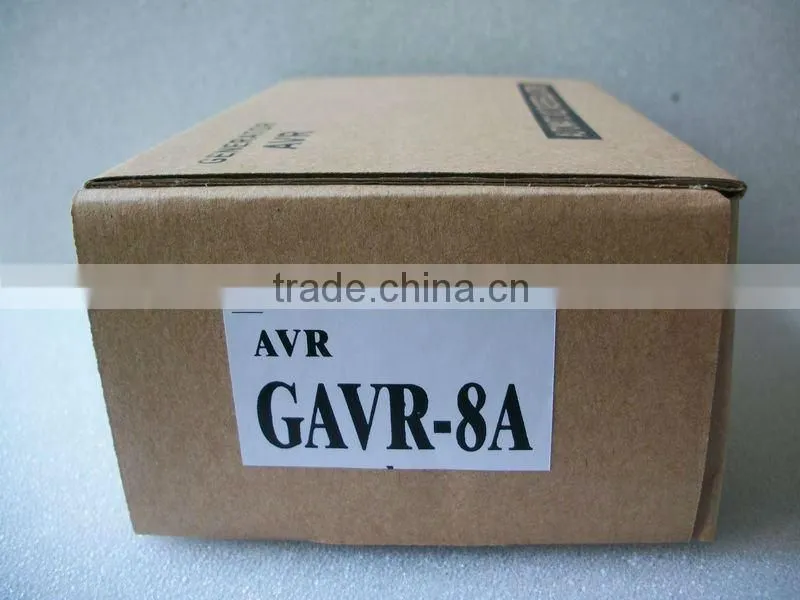

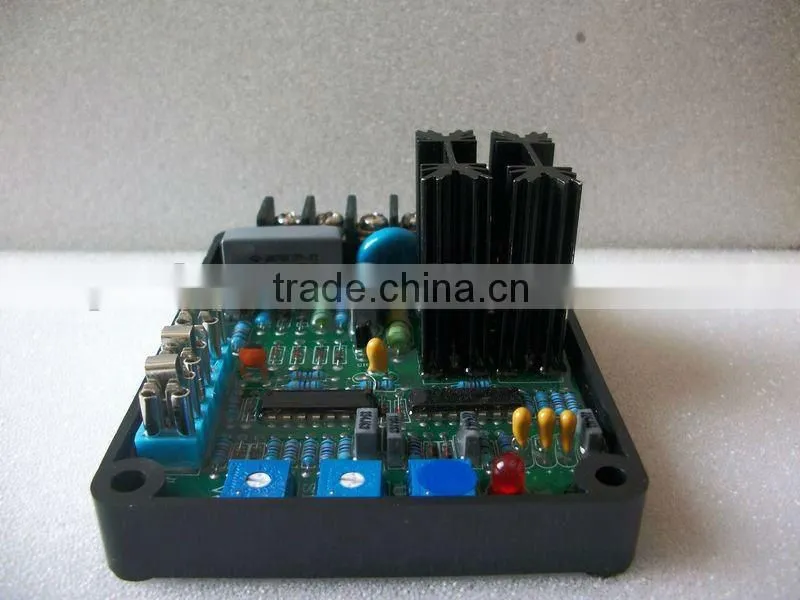

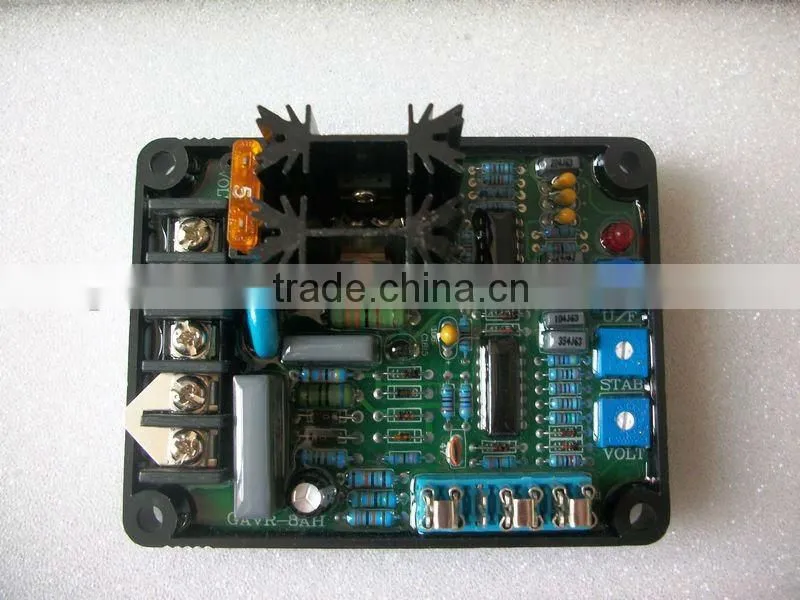

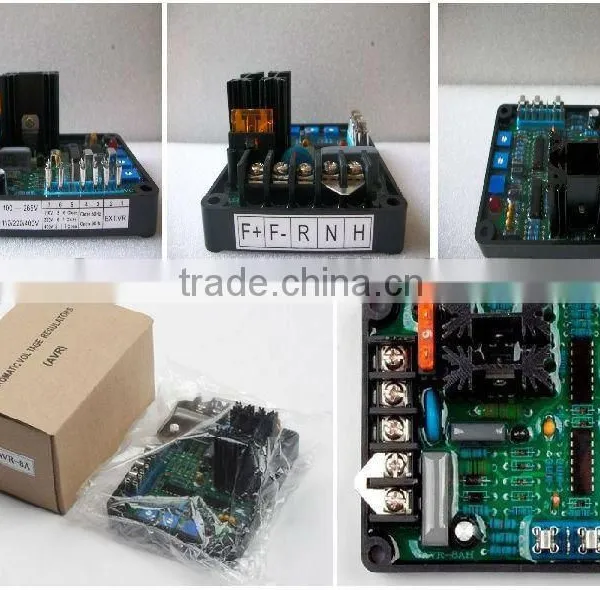

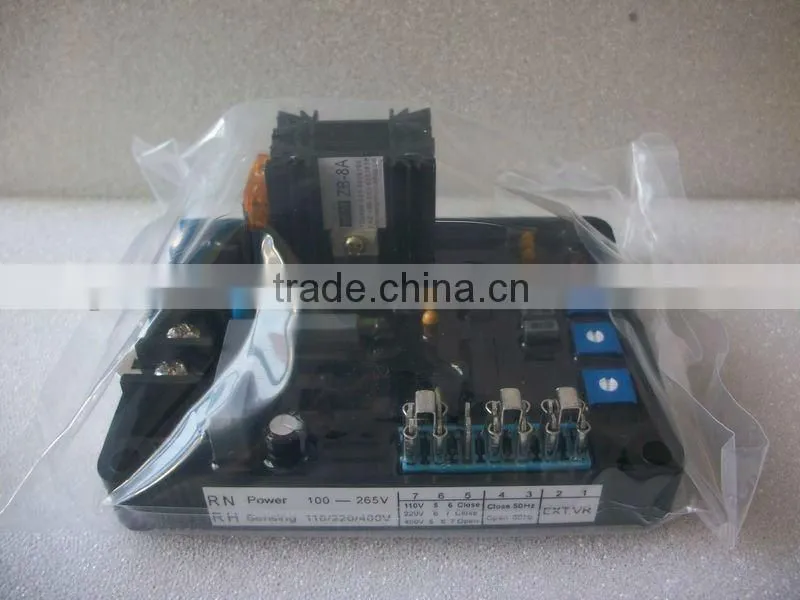

Gavr-8A isUniversal 8Amp 1/2 Wave Self Excited Dip-Switch Progmmable avr
Features
- Voltage Regulation < ±1%
- 220/440VAC Programmable Input
- Rugged Compact Desigh
- Soft Start Voltage Ramping
- With Under Frequency Roll Off Protection
- EMI Suppression
- Built-in High Capacity 8Amp Fuse
Technical specification/main parameter:
| Sensing input Voltage | 110/220/400VAC , 1 phase 2 wire |
| Power Input voltage | 100-260VAC , 1 phase 2 wire |
| Output voltage | max 90 VDC at 240VAC input |
| Current | Continuous 3 A , intermittent 5A for 10secs |
| Resistance | Min.15 ohm , Max 100ohm |
| Voltage Build-up | residual voltage at avr terminal >5VAC |
| Voltage Regulation | <±1% with 4% engine governing |
| Operating Temperature | (-40°C to +60°C |
| Storage Temperatue | (-65°C to +85°C |
| External Volts Adjutment | ±7% with 1k ohm 1 watt trimmer |
| EMI Suppression | Internal electromagnetic interference filtering |
| Unit Power Dissipation | Max.8 watt |
| Under Frequency Protection | 60Hz system presets knee point at 55Hz |
| 50Hz system presets knee point at 45Hz | |
| Dimensions | 107mmL*82mmW*50mmH |
Product line:
More Producsts Shown:
Our Products as follow:
- Stamford AVR:MX341,MX321,SX440,SX460,AS440,AS480,EA440-T,MX450
- Leroy Somer AVR:R230,R438,R448,R449,R250,R450
- Marathon AVR:SE350,EA350
- Siemens/Basler AVR:AVC63-7/7F,AVC63-7-1A,AVC63-7FS,AVC63-4,AVC63-4A
- Marelli AVR:M40FA640A,M16FA655A
- Universal AVR:GAVR-8A,GAVR-12A,GAVR-15A/B,GB-15A
- Others:EA05A,EA05AF,EA15A-2,EA04C,EA63-7D,EA06/UVR6,SR7
- Caterpiller:VR6
- Engar:WT-2
- Deep sea controller:DSE5110,5120,501k,GTR-168
- Cummins engine governor:ESD5500E,ESD5111,ESD5500,ESD5520,EFC3044196,3062322
- Cummins Actuator:3408324,3408326,ADC225
- Other parts:MPU,Stamford rectifier :RSK2001,RSK5001 ,SSYEC432,stop solenoid,current transfer
