1400 128kg m3 high zirconium ceramic fiber blanket for boiler insulation
Ceramic fiber blanket is made of special ceramic long-fiber that is produced by melting very pure raw materials in double surface needing process.
It also named aluminum silicate fiber blanket, because their main component is aluminum. It’s a new type of fire-resisting and heat-insulating materials with white color and accurate dimension.
This product does not contain any adhesive to ensure their good stability in high temperature or low temperature environment.
Their Classification Temperature: 1050-1600°C.
Features and advantage
1.Excellent chemical stability
2.Excellent heat stability
3.Excellent pull resisting strength
4.Low heat conductivity
5.Low thermal capacity
6.Excellent heat insulation performance
Application
1.Industry furnace wall lining
2.Back lining material
3.Fire prevention
4.High-temperature tube heat insulation material
5.Module/folding block processing material
6.Filling and sealing material in high temperature environment.
7.Sound-absorbing/high temperature filtration materials.
zirconium Ceramic Fiber Blanket Technical Index
product code |
MYTX-PT-02 |
MYTX-BZ-02 |
MYTX-GC-02 |
MYTX-GL-02 |
MYTX-DG-02 |
MYTX-HG-02 |
Heating permanent linear change(%) |
950°C×24h≤-4 |
1000°C×24h≤-4 |
1100°C×24h≤-4 |
1200°C×24h≤-4 |
1250°C×24h≤-4 |
1350°C×24h≤-4 |
heat conductivity(An average of 500°C)W/(m.k) |
|
|
≤0.153 |
|
|
|
Content of slag(Ø≥0.212mm)(%) |
|
|
≤15 |
|
|
|
Pull resisting strength (Thickness25mm)(Mpa) |
|
|
≥0.04 |
|
|
|
Theoretical volume density ( kg/m3) kg/m3 |
96/128 |
96/128 |
96/128 |
96/128 |
96/128 |
96/128 |
Al2O3 |
≥40 |
≥43 |
44-47 |
51-53 |
43-45 |
|
Al2O3+SiO2 |
≥95 |
≥96 |
≥98 |
≥99 |
≥90 |
|
Al2O3+SiO2+ZrO2 |
|
|
|
|
|
≥99 |
ZrO2 |
|
|
|
|
|
≥15 |
Fe2O3 |
<0.5 |
<0.5 |
≤0.3 |
≤0.3 |
|
|
Na2O+K2O+Fe2O3 |
<0.9 |
|
|
|
|
|
Product specification (mm)(customized according to customer demand) |
Normal length and width, thickness 6mm-60mm |
|||||
Packing form |
Woven bag or carton |
|||||
Quality and environment system certification |
ISO9001-2008, ISO14001-2004 |
|||||

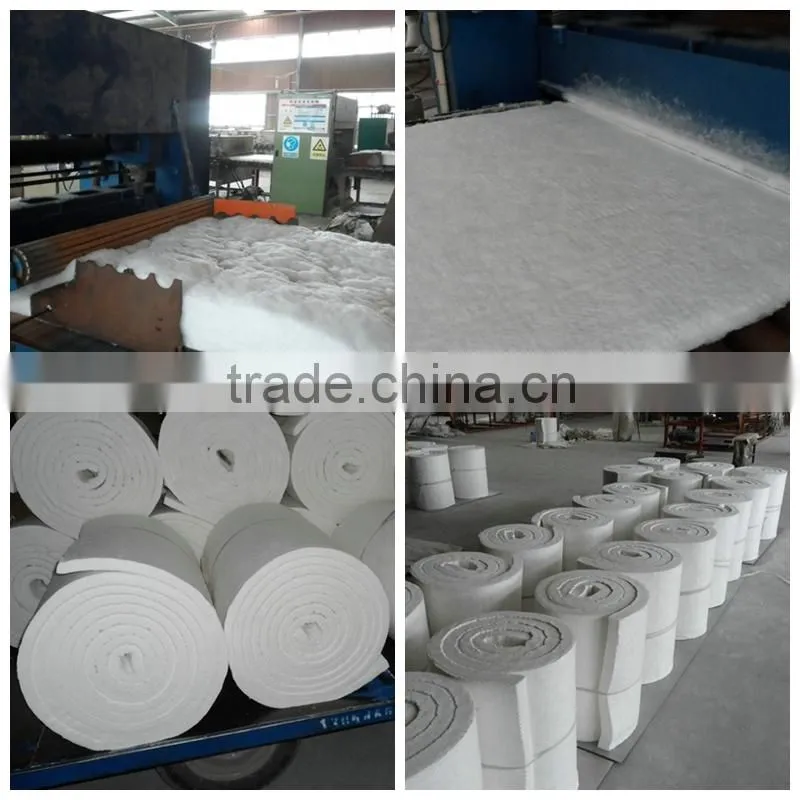

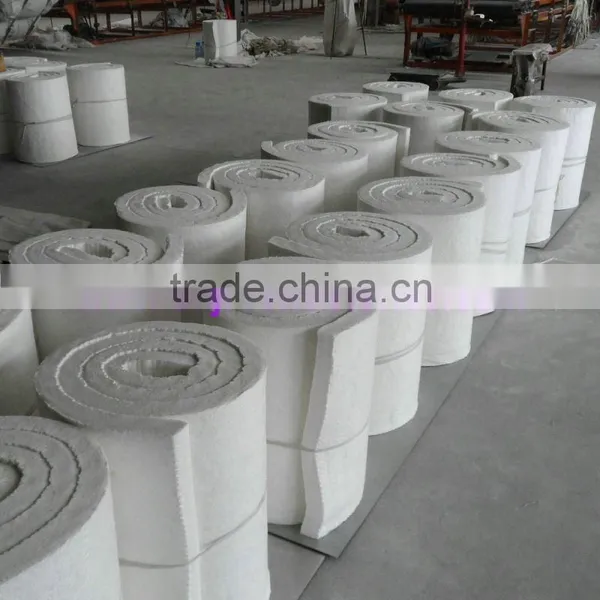

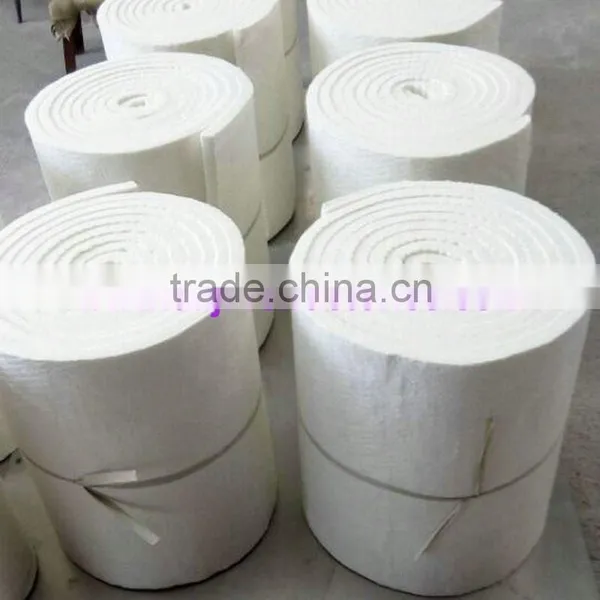

Pictures of zirconium Ceramic Fiber Blanket
Packing of zirconium Ceramic Fiber Blanket: woven bag or carton.
Shipping: By vessel or by train from any Chinese port, Samples can be delivered by International express.
package pictures of zirconium Ceramic Fiber Blanket
1. Timely response,
Timely response to your inquiry, multiple choice recommendations based on your demand, quickly respond mails and provide solutions.
2. Free sample
Sample and trial order are accepted for the quality evaluation.
3. Strict quality control
Arrange production on time and control quality strictly.
4. Shorter delivery time.
Book the earliest vessel or plane to guarantee the delivery time.
5. Professional Services
Provide all the detailed news and pictures from order to delivery;
Offer relative export documents and original certificate if needed;
Warm and considerable after-sale service
DKJL refractories exporting company is one of the most professional suppliers of refractories in China. Our main products are refractory and thermal insulation materials, heating elements, and industrial ceramics. They are available in various sizes and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.
1.How can I get your prompt quotation for zirconium Ceramic Fiber Blanket?
We can give you reply with quotation quickly if you kindly send the inquiry with following factors: working temperature, maximum working temperature, bulk density, dimension (length*width*thickness), and quantity.
2.What's the MOQ of trial order?
No limit, we can offer the best suggestions and solutions according to your condition.
3.Which payment terms can you accept?
T/T, LC, Western Union, MoneyGram are available for us.
4.After an order is placed, when to deliver?
15-25days after confirming the order.
5.Does your company accept customization?
We accept OEM service.
6.How to solve the quality problems?
If the products are not conform to customer samples or have quality problems, our company will be responsible for it.
7.What is the HS code?
The HS code is 68061010
