Specifications
self raise building tower craneMax. Load:3T Jib length:38m Tip load:0.8T
Hydraulic self-raising mechanism
CCC Certificati

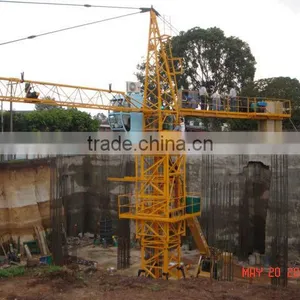

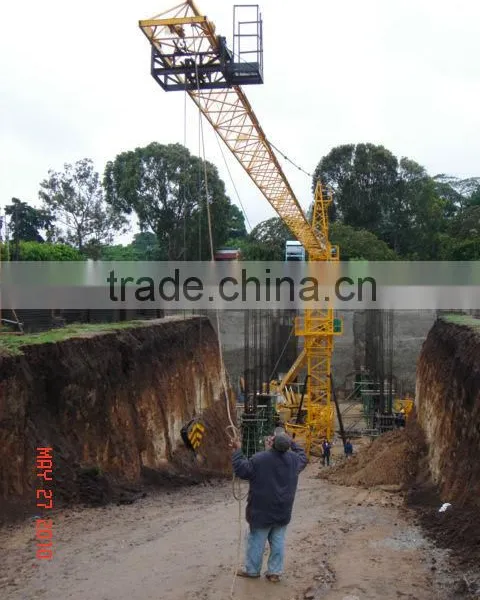

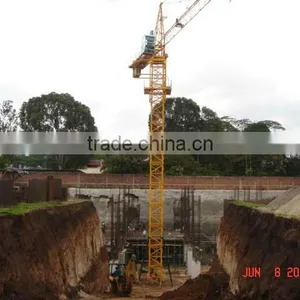

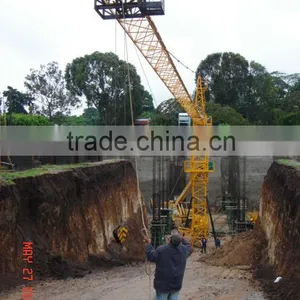

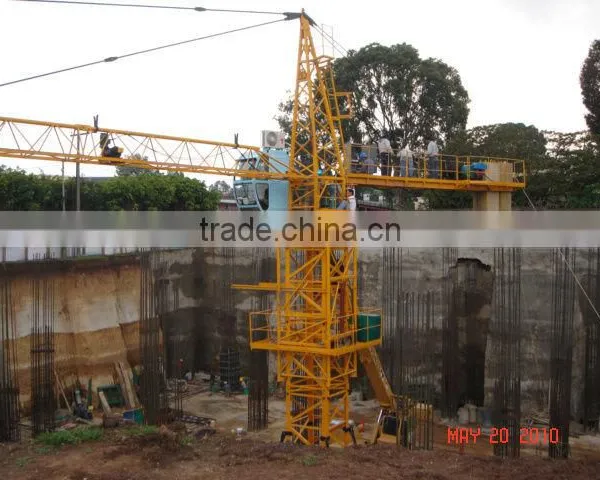

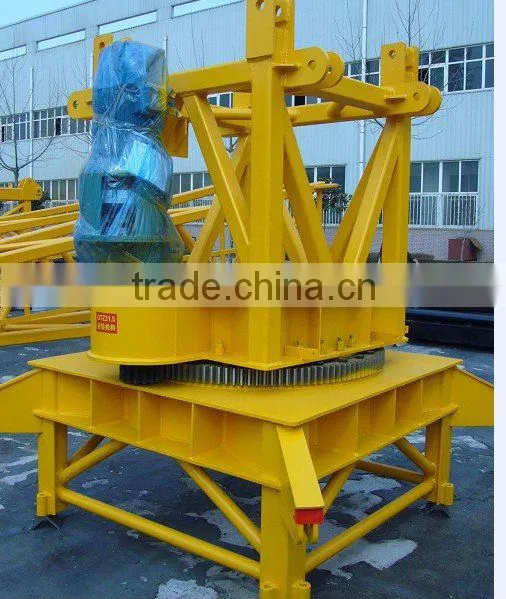

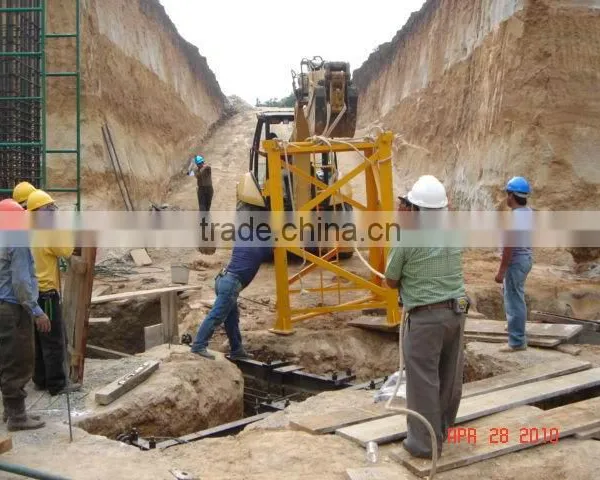

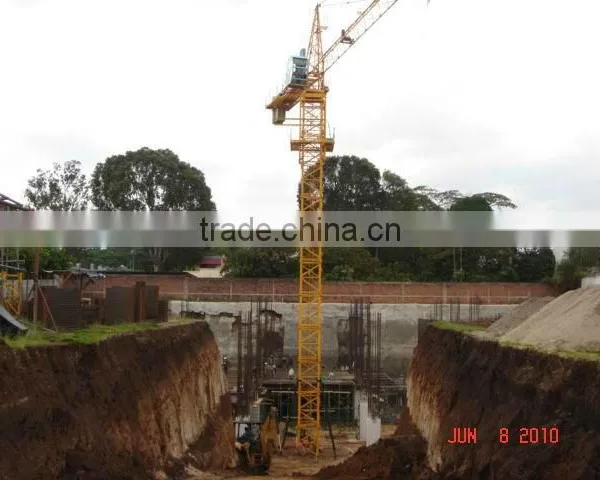

QTZ series self raise building tower crane
They cover a large working scope from QTZ31.5 to QTZ315with travel range varying from 38m to 70m, have multiple working methods and apply to many purposes. The series of tower crane has a horizontal jib frame, trolley travelling, hydraulic self-climbing, original mechanism, and a desirable shape. They can operate reliably with all safety devices well-equipped and have an improved working speed, a good speed control property, and a smooth and efficient working, which can widely apply to high-rise hotel, resident houses, high-rise industry buildings, large-span factory buildings, large chimneys and other high-tower buildings.. Quality first is not only a slogan, but has rooted in PEOPLE’s heart deeply. Classic after-sale service will remove all worries from your purchase of our products.
Main Technical Parameters of QTZ 31.5 self raise building tower crane
|
Model
Parameters |
QTZ31.5(3883)(4075)(4264) |
|
Tip load(KG) |
830 |
|
Max .Radius(m) |
42 |
|
Independent Height(m) |
30 |
|
Max. Lifting Capacity (t) |
3 |
|
Max. Height(m) |
100 |
|
Wall-attached Frame |
5 |
|
Main Material |
125x10(Angle steel) |
|
Standard Mast Section Dimension |
1.5x1.5X2.4 |
|
Hoisting Speed (m/min) |
57.5/26.6/5.2 |
|
Mini. Stabilizing Falling Speed (m/min) |
5.2 |
|
Slewing Speed(r/min) |
0-0.6 |
|
Traveling Speed (m/min) |
42/21 |
|
Climbing Speed (m/min) |
0.7 |
|
Motor Total Power(KW) |
20.7 |
|
Undercarriage Form |
Type A. Cross-shaped beam with slanting strut and ballast Type B. Cross-shaped beam with slanting strut but no ballast |
|
Complete Machine Total Weight |
Independent Structure Weight(KG) |
18961 |
Counter Weight(t) |
5.2 |
|
| Certification | ||||
|
Designing tower crane is available:
To provide you detailed quotation, we need to confirm the following details.
1.The height of the tower crane you needed.
2.The tip load and max loading you needed.
3.The span of the tower crane
4.The voltage frequency in your country
