Specifications
pre fabricated villas house1 thermal insulation,fireproof
2 easy to assemble and disassemble
3 low cost
4 durable,long life

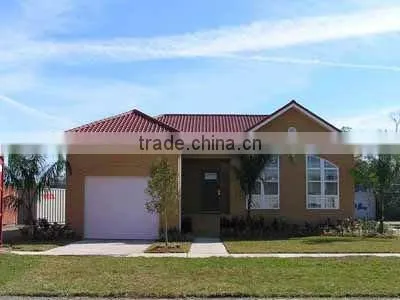

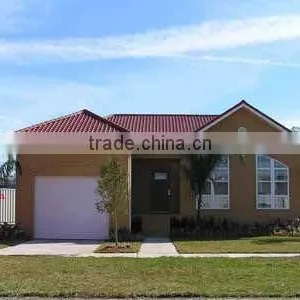

Light steel pre fabrication mobile villa house designs
This is a kind of light steel structure modular house with color steel sandwich panel,low cost and good quality, easy to assemble and disassemble at site.
They are widely used in construction site, office building, dormitory, dining hall, industry workshop and warehouse etc. they will have a good market because of the high quality and low cost.
Specifications of the prefabricated light steel villa house
PartⅠ
Sort |
Name |
Specification |
|
1 |
Specification |
length |
No limited |
2 |
Width |
Less than 15m |
|
3 |
Wall height |
Regular 3000mm |
|
4 |
Clear height |
Regular 2600mm~2800mm |
|
5 |
Roof slope |
Flat ,double pitched roof |
|
6 |
Conventional accessory(also customized) |
Wall board |
75mm thickness sandwich panel, 0.4mm steel sheet, 14kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k. |
7 |
Roof board |
75mm thickness sandwich panel, 0.4mm steel sheet, 12kg/m3 polystyrene density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/.k. |
|
8 |
Outside door |
Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. |
|
|
Inside door |
SIP, single door with dimensions of 800*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. |
|
9 |
Window |
PVC double glazed sliding window. / aluminum window |
|
10 |
Channel |
Galvanized Steel Plain Sheet press moulded, Material: Painted steel |
|
11 |
Post |
Square steel tube, Material: Painted steel |
|
12 |
Purlin |
C style steel Material: Painted steel |
|
13 |

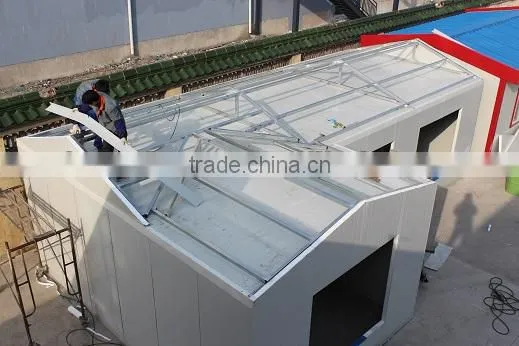

Roof truss |
Gabled truss, Material: Painted steel |
|
|
Decoration and connection |
Color steel sheet, 04mm thick |
|
|
Elevated ceiling |

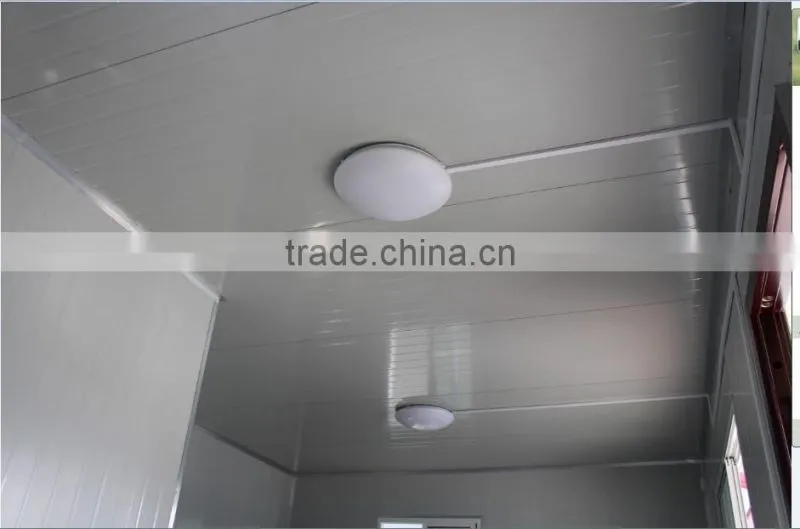

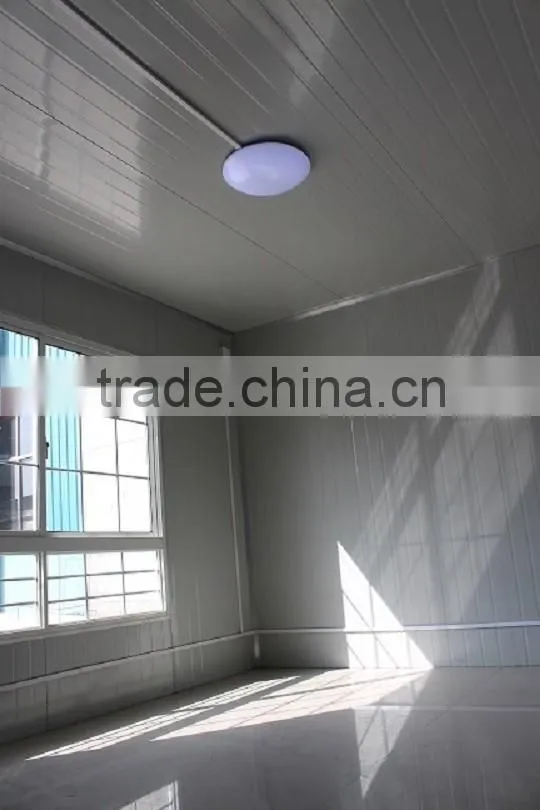

Ceiling of mineral wool acoustic panel in room and aluminum panel in bathroom and kitchen |
|
20 |
Option |
Decorative floor |
PVC, laminated or ceramic tile |
21 |
Drainage system |
Provided plan, design and construction |
|
22 |
Electric system |
Provided plan, design and construction |
|
25 |
Technical parameter |
Bearing load |
50kg/m2, can be adjusted according to climate |
27 |
Wind pressure: |
0.5KN/M2, can be adjusted according to climate |
|
28 |
Fire proof |
B grade |
|
29 |
Resistant temperature |
-25 to 50 |
|
30 |
The resistant earthquake grade |
7 fission activate |

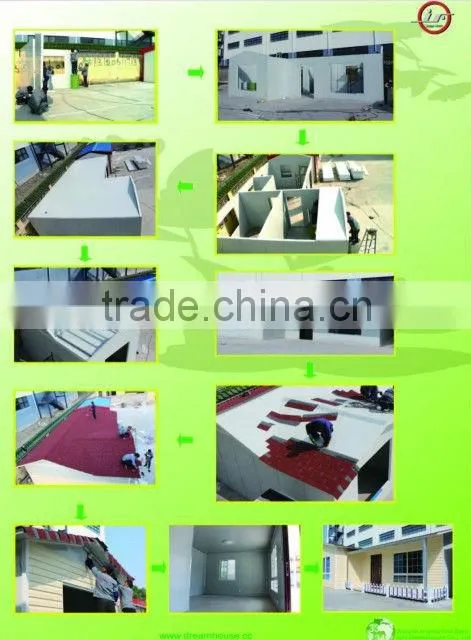

Installation
PartⅡ
Prefab house Joint material: steel column/aluminum alloy
1. Steel code: Q345, Q235
2. Designed life span: more than 30 years;
3. Seismic resistance up to 8 magnitudes
4. Safe---Able to stands for maximum 55 m/s typhoon
Prefab house advantage
1. Fast installation and low cost-all the components of the house are prefabricated, which is easy assemble and disassemble, as well as significant savings in site installation costs.
2. Energy saving- Additional 10%-15% net area compared to the traditional building, less 65% energy consumption than the concrete structure.
3. Thermal insulation and fire proof -color steel sandwich panels have a good fire proof and heat insulation performance for the characteristic of the EPS polystyrene /PU/ Rock wool materials.
4. Moisture and rust resistance of the PPGI surface of the house panels-Durable, long lasting, stood the test of time in the extremes of harsh climate.
5. Free from the damages by inspects, such as white ants and so on.
We provide the One-stop service for you.From the drawing designs to the final assemble.We have the professional teams to serve you.Just for presenting you the Dream House.
