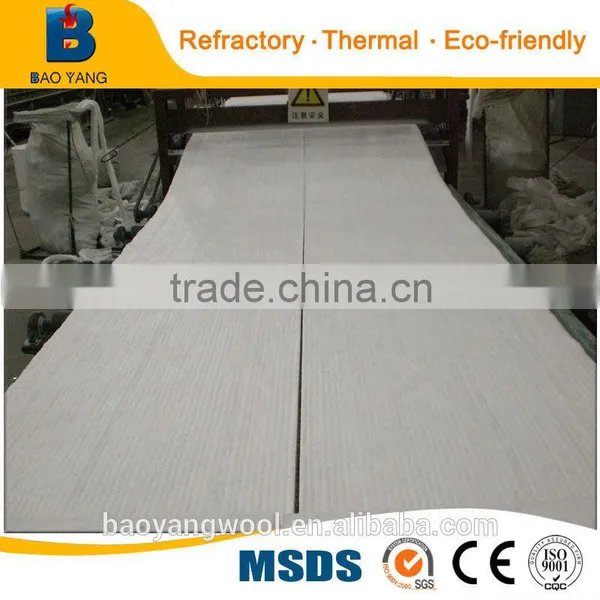

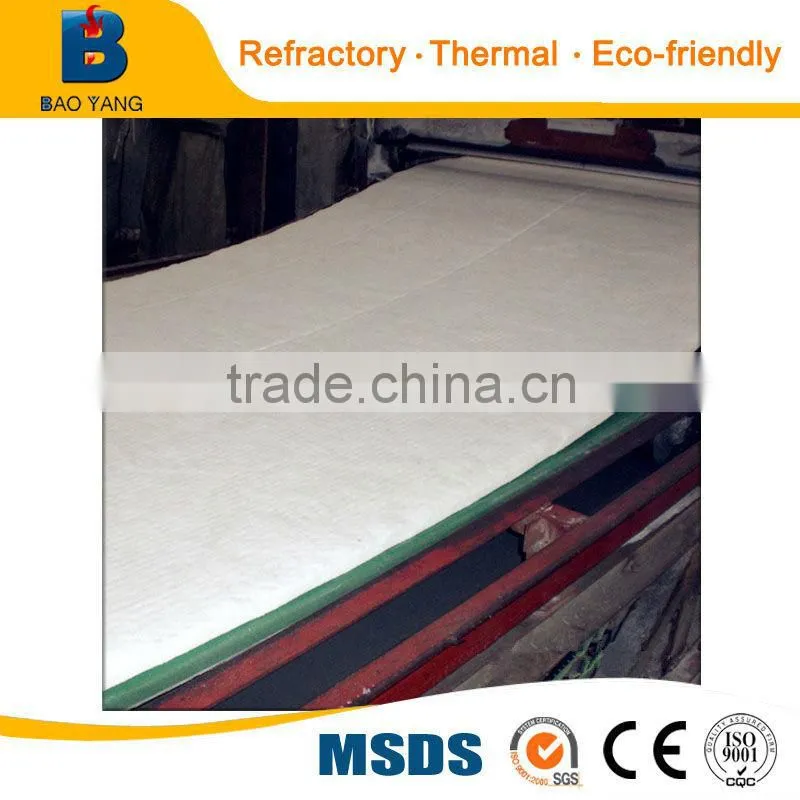

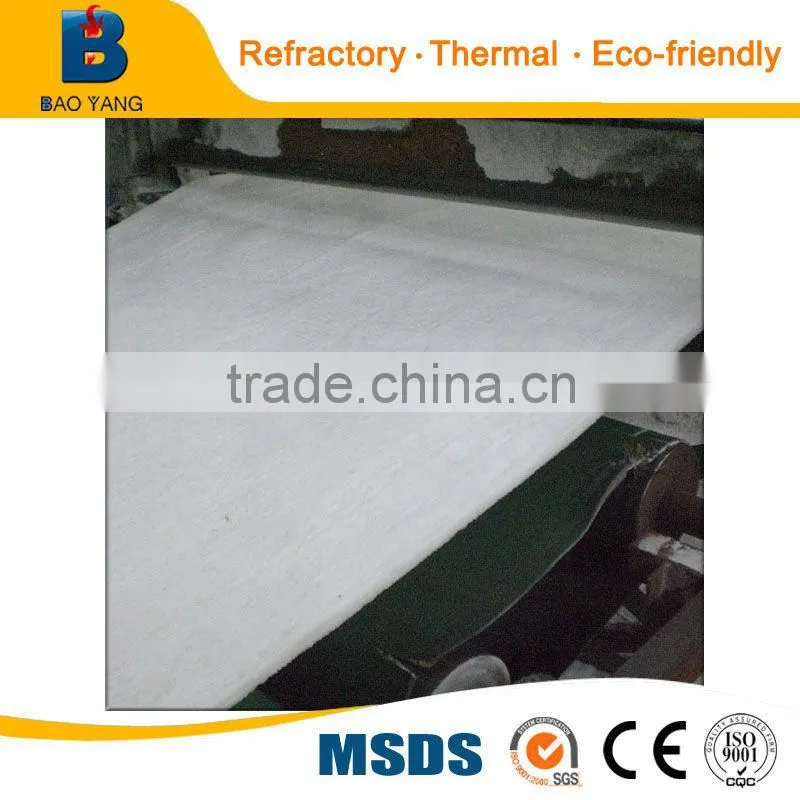

NBY-series blankets

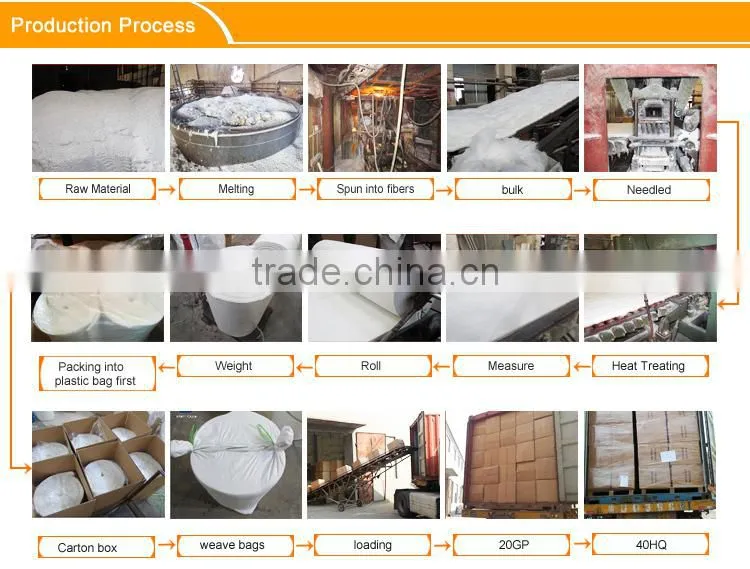

Pure raw material, good fiberzation quality control produc the low shots content and extra-long spun fiber.
Double sides cross needled process produce a blanket with high tensile strength.
Lower liner shrinkage on high temperature.
Product Characterics
Excellent tensile strength
Low thermal conductivity
Low heat storage
Corrosion resistance
Thermal stablity
Resiliency
High heat reflectance
Thermal shock resistance
Application range
1, Industrial furnace building, heating equipment, and high-temperature pipe wall lining materials.
2, Electric boilers, gas turbines and nuclear power insulation.
3, High-temperature chemical reaction industrial equipment and heating equipment lining the wall.
4, Fire safety in high-rise buildings and insulation.
5, Kiln oven door, roof insulation.
6, High-temperature filter material
Products Item |
NBYB-1260 |
NBYB-HP |
NBYB-AZS |
|
Specification temperature oC |
1260 |
1260 |
1430 |
|
Working temperature OC |
1150 |
1150 |
1250 |
|
Color |
Pure White |
|||
Density(kg/m3) |
96-160 |
64-160 |
64-160 |
|
Liner shrinkage(%)(OC*24h), Density kg/m3 |
≤-3.5 (1200OC) |
≤-3.5 (1200OC) |
≤-3.5 (1250OC) |
|
|
Thermal Conductivity (W/n.k) Density 128 kg/m3 |
0.09(400°C) 0.15(600°C) 0.20(800°C) |
0.09(400°C) 0.15(600°C) 0.19(800°C) |
0.09(400°C) 0.15(600°C) 0.19(800°C) |
|
|
Average Tensile Strength Mpa Density 128 kg/m3 |
70 |
50 |
70 |
|
|
Chemcal composition % |
AL2O3 |
45 |
47 |
35 |
AL2O3+SIO2 |
96 |
98.5 |
-- |
|
AL2O3+SIO2+ZrO2 |
-- |
-- |
99 |
|
ZrO2 |
-- |
-- |
15 |
|
Fe2O3 |
0.3 |
0.3 |
0.2 |
|
Na2O3+K2O |
0.2 |
0.2 |
0.2 |
|
Test data shown are average results of tests conducted under standard procedures and are subject to variation. |
Thickness |
Density KG/M3 |
Length |
Width |

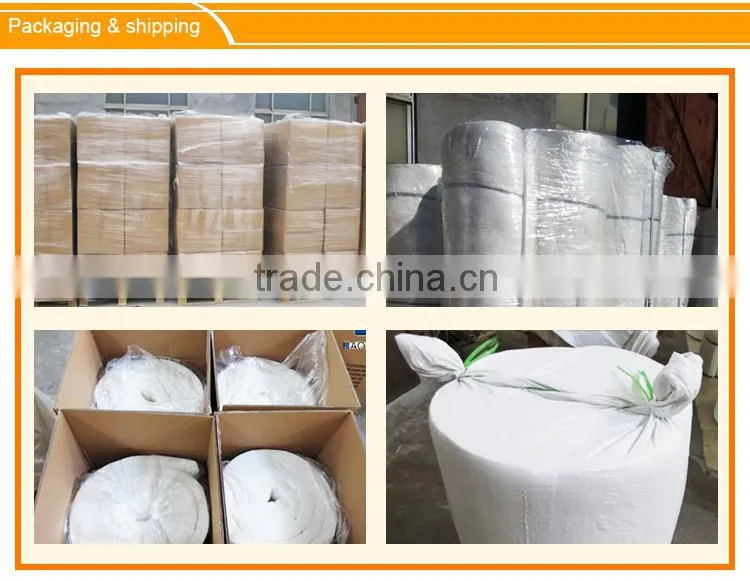

Roll/Carton |
|||
mm |
64 |
96 |
128 |
160 |
mm |
mm |
|
6 |
|
|
|
* |
7620 |
610 |
4 |
10 |
|
|
* |
* |
18000 |
1 |
|
13 |
|
* |
* |
* |
14640 |
1 |
|
19 |
* |
* |
* |
* |
9760 |
1 |
|
25 |
* |
* |
* |
* |
7320 |
1 |
|
38 |
* |
* |
* |
* |
4880 |
1 |
|
50 |
* |
* |
* |
|
3650 |
1 |
|
Special size: max width 1220mm,Can be produced | |||||||
