Home > Chemicals > Inorganic Fiber > Ceramic Fiber > 1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module

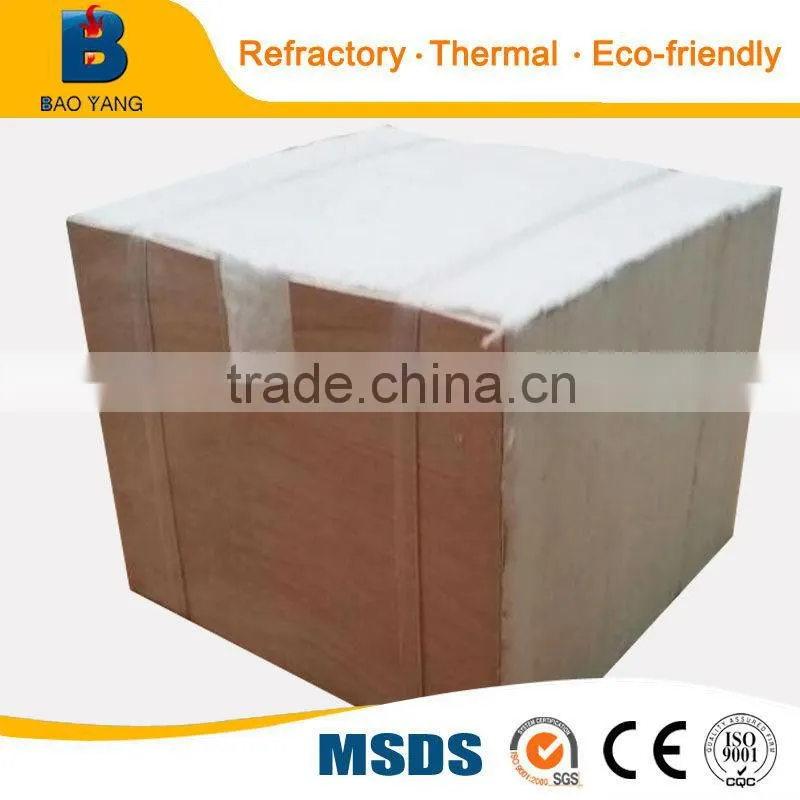

1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module

1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
BAOYANGWOOL
Model Number:
HZ
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name BAOYANGWOOL
Model Number HZ
Application heat preservation
Grade HZ (High Zirconium)
Dimensions As the customers'requirement
Working Temperature 1350
Fiber Diameter 2-3
Thermal Conductivity 0.22
Shrinkage (1800℉, 3h) -3

1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module



1. Classification Temperature

     HP ceramic fiber modules         1430 oC



2. working temperature

    HP ceramic fiber modules         1350 oC



3 Size:

Common Specification:

610*300*100-200mm (not match anchoring piece) );

300*300*250mm (match anchoring piece);

other specifications and other construction package are customized according to users special requirement.



4. Density: 160--240kg/m3



5.Color: pure white



6.Application range:

A ,Various Furnace of metallurgical steel. Ladle covered heat treatment furnace and annealing furnace, batch furnace.

B ,Shuttle kilns, horseshoe kilns, tunnel kiln and other kind porcelain kiln , Kiln Car,kiln door.

C ,Petrochemical cracking furnace, Transformation furnace, Crude Oil Furnace, Coking furnace,flue.

D ,Other various of industrial furnaces, such as soaking furnace, crucible furnace, hot resistance furnace and other high equipments.

 1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module

1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module

1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module



 1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module



 1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module1430 HZ 300*300*610mm Fireproof Material Ceramic Fiber Module
