Professional Audio 4 Channel Sound Audio Amplifier TD-6800AP
Audio Amplifier Features:
1)4ch Ultra high power switching power supply amplifier
2)All channels bridgeable to 2 or 3 channels configuration
3)Lo-Z or Hi-Z(70V/100V)--Seletable per channel ,normal or bridge
4)Efficient and uniform intercooler cooling
5)Voltage Peak Limiter(VPL)--Configurable per channel to optimize each output connected loads
6)Comprehensive protection and warning--Excessive output current DC,high temperature, very high frequency(VHF), short circuit,open load,mains fuse protection and soft start
7)PC long distance control by using the attached software
Audio Amplifier Specifications:
1)Input impedance: 20KΩ
2)Freq. Resp.: 4Hz-50KHz
3)THD: 0.05%
4)Slew rate: 40V/usec
5)Hum&Noise: 103dB
6)Radiator:High/Low Automatism Cortrol
7)Safeguard:DC Safeguard/out Overloading/Chancroid Sgartup/Boot-Strap Short Test
8)Peak total output all channels driven: 6800W
Stereo Model
9)Out Power(8Ω):4x1200W
10)Out Power(4Ω):4x1700W
11)Out Power(2Ω):4x1200W
Bridge Model
12)Out Power(16Ω):2400W
13)Out Power(8Ω):3400W
14)Out Power(4Ω):2400W
15)N.W.(kgs):12kgs(26.4lbs)
16)Dimension:483x88x343mm(2U)

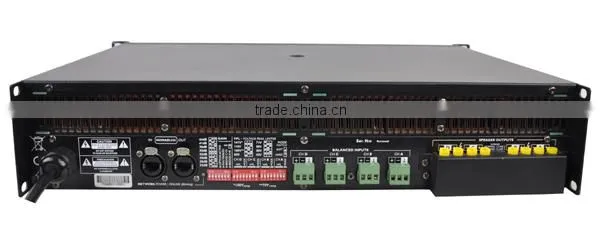

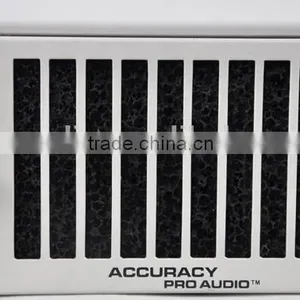

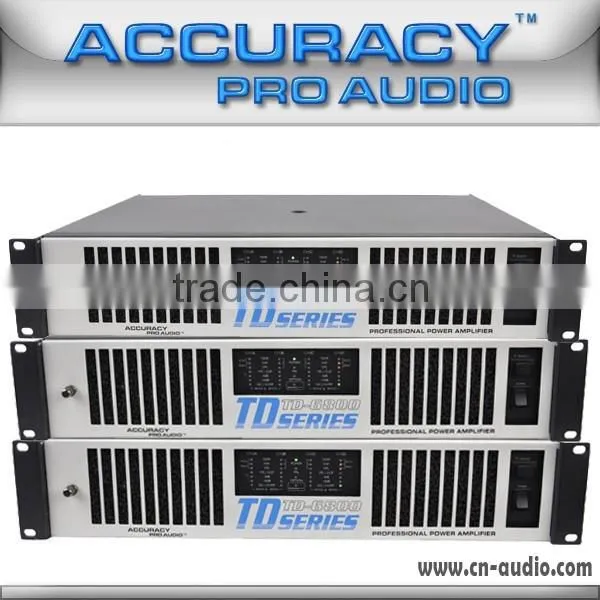

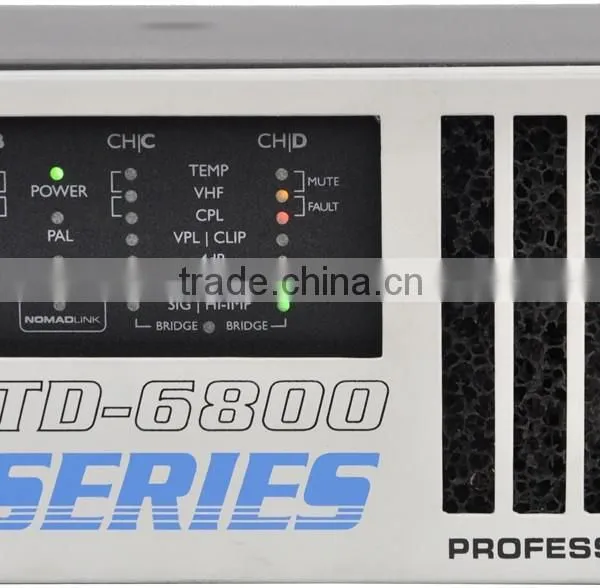

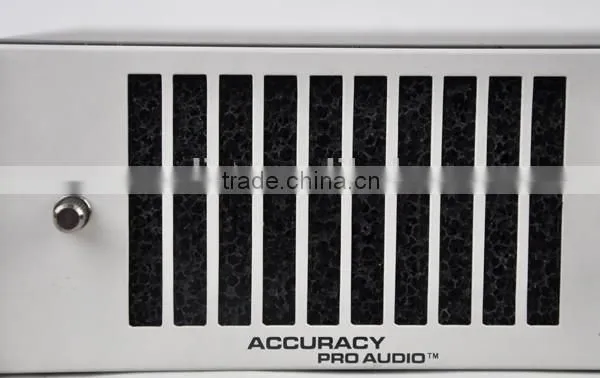

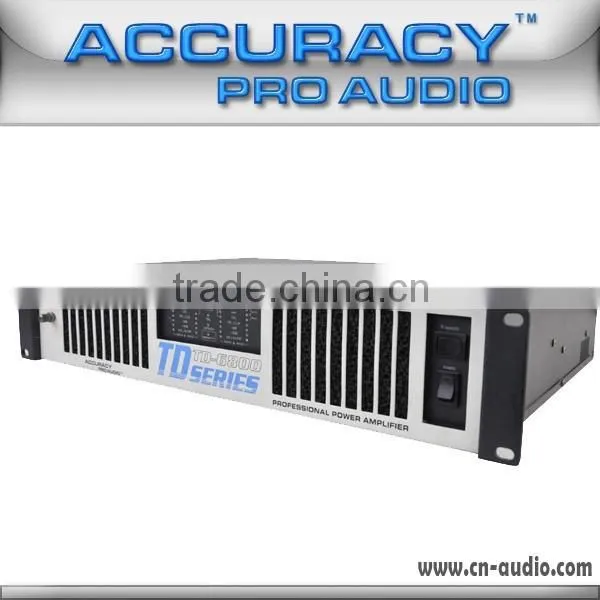

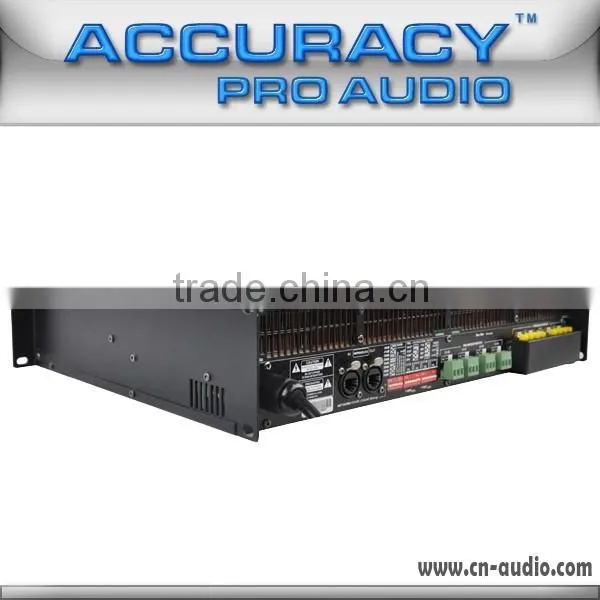

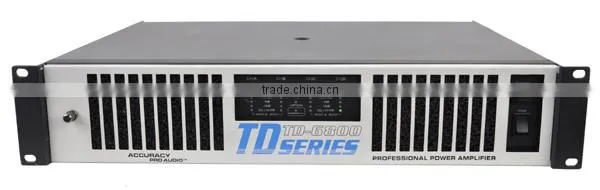

Power Amplifier Pictures:
Port : Ningbo
Package : Standard Carton ( 1pc/ poly bag, 1 poly bag / master carton, with foam padding inside for protection ), White box packing or color box packing, according to customer's requirements
Dimension of Carton Box: 56.8x48.5x15.5(cm)/0.0423(CBM)
