USE

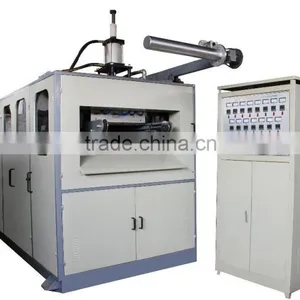

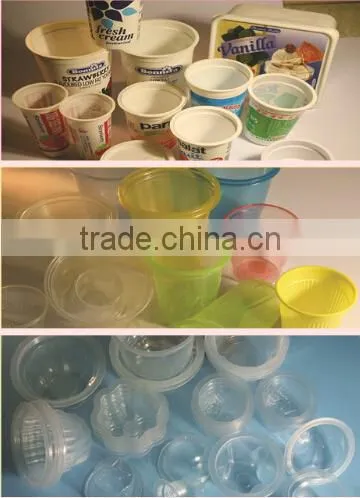

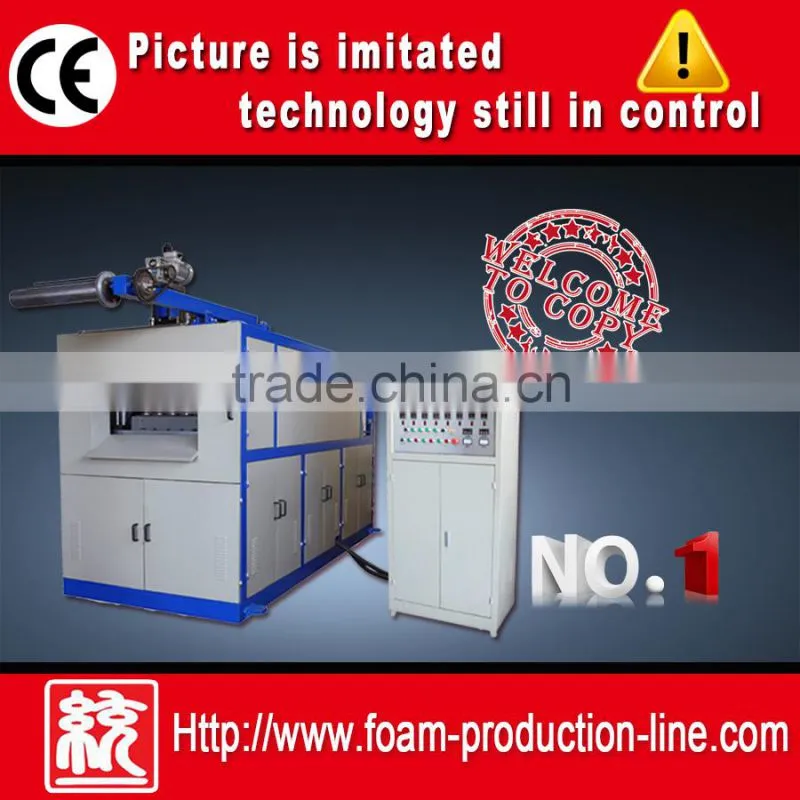

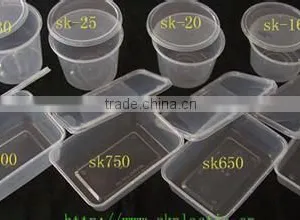

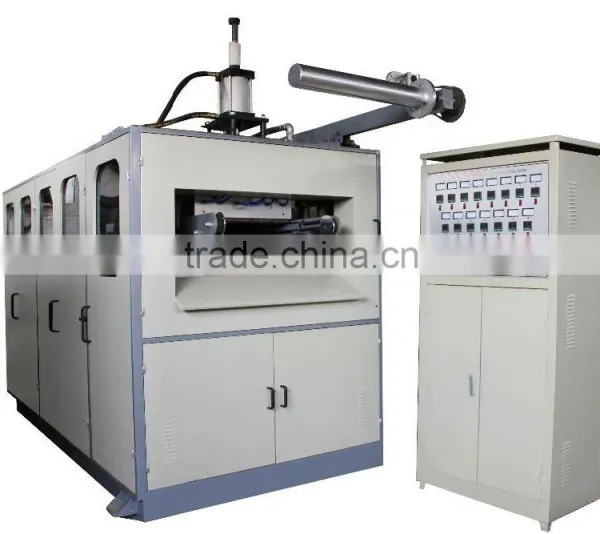

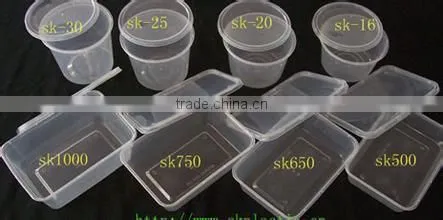

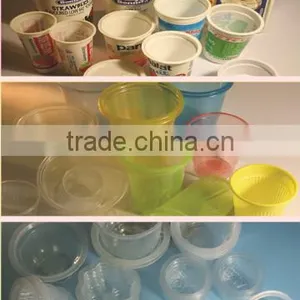

DY-660C MULTI-FUNCTIONAL THERMOFORMING MACHINE isdesigned with most advanced thermoforming technology,a combination of mechanical, electical and pneumatic components ,And the whole system is contrlled by PLC ,The machine has good operational interface and electric stove constant temperature preheating function Send sheets by chain Use heating tile with infrared ray to heat .form by up and down mould .Cut by mould knives. It integrates sheet seding ,heating ,strecthing ,forming ,trimming and winding into one process,the machine is suitable for PP,PS,PVC HIPS,PET material. They are widely used in producing disposable table wares such as plastic cup ,all kinds of cup lid ,ice cream cups ,milk cups ,jelly cups,instant noodle bowels,toy boxes etc .It can aslo be used in plastic package in medicine manufacturing,light industry ,textile ,tourism etc.
| Suitable thickness of sheet | PP,PS ,HIPS PET | ||
| Suitable width of sheet | 500-630mm | Sheet feeding motor power | 2.4-4.4kw |
| Suitable thickness of sheet | 0.35-2.2mm | Overall size | 3.3×1.65×2.25m |
| Max forming area | 640×330 | Productivity efficiency | 20-35die/min |
| Max forming depth | 180mm | Compressing air pressure | 0.8mpa |
| Adjustable length of the trip | 100-400mm | Air consumption | 2600L/min |
| Rated heating power | 67-78KW | Water consumption | 100L/min(20°c) |
| Using power | 380V/50HZ | Machine weight | 4.0/4.5T |
| Main machine motor power | 7.5w |
Successful orders
payment process
a.50% T/T earnest money
b.50%Remaining money,Paid before shipment
Our Services
We can solve the problem for you is
1.Our Professional engineer can help you go to your country. And adjustment the machine.
2.Our salesman will be 24 hours online for you to solve equipment problems.
3.Our machine is hight quality.
We can solve the problem for you is
1.Our Professional engineer can help you go to your country. And adjustment the machine.
2.Our salesman will be 24 hours online for you to solve equipment problem
3.Our machine is hight quality.
