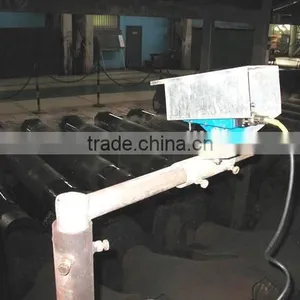

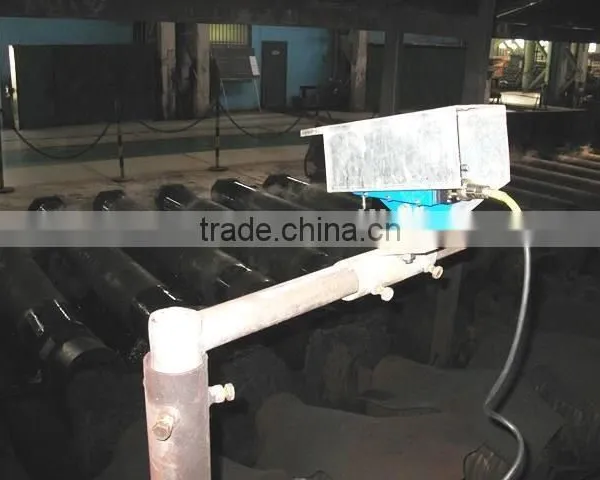

MSE REMOTE CONTROL HOT METAL DETECTOR
WITH AIR PURGE
1. Characteristic
• Fully digital “All-in-One” Design
• LED Bar Display of % IR input signal
• Programmable temperature threshold from 270°C
• Operates from 80-240VAC or 24VDC Supply
• Programmable response times from 1ms to 250ms
• Control Relay and Fast Reed Relay Outputs
• NPN and PNP Transistor Outputs
• Remote Self-Check Facility
• Unique combined air purge and coolant facility
• Optional Water Coolant Radiator & Separate Air Purge
2. Rear Bar Display
The rear bar display allows the user to clearly establish the amount of received IR both from the background metalwork and the bar being detected and thereby establishing the correct trip level required. This display also allows the user to align the Detector from a low energy source such as a flashlight, which normally would be insufficient to switch the Detector. Adjustment of both the threshold and the response time is also clearly defined by this bar.
3. Housing Specifications
Housing: Aluminum AL6, Oven baked blue paint
Housing Rating: IEC IP66, DIN, 89011
Weight w/o Cable: 1.9 Kg (4.2lb)
Connector: IP66 with connected Plug/Socket
Cable Length: 1.5 M Standard up to 15 M available
Cooling: Air Cooled & Air Purged or Water Cooled & Air Purged
4. General Specification
Lens F.O.V. (Filed of View) |
0.5° x 25° Rectangular Slit |
|
Min/Max I.R. Threshold Settings |
Adjustable from 270°C via Programming Switch |
Response Time |
1 ms to 250 ms, via Programming Switch |
Supply Voltage |
Standard: 80 - 240 VAC, 50/60 or 24 VDC ± 10% |
Power Consumption |
5 W |
Operating Temperature |
1. -20°C to +50°C without Air Cooling 4. up to 80°C with Heat Shield |
Output (#1) |
Cradle Relay Output, SPNO, 240 VAC, 7A with 20 ms Response Time. |
Output (#2) |
Reed Relay Output, (OPTION) SPNO, 240 VAC, 0.5A with 2 ms Response Time. |
Output (#3 & #4) |
NPN and PNP Outputs, N.O., 500 mA, 45 VDC, 2A Peak. |
