Specifications
motorized ball valve1.50,000 life cycles
2.1/2''-1'' (DN15-DN25)
3. Manufacture/factory
4.OEM service

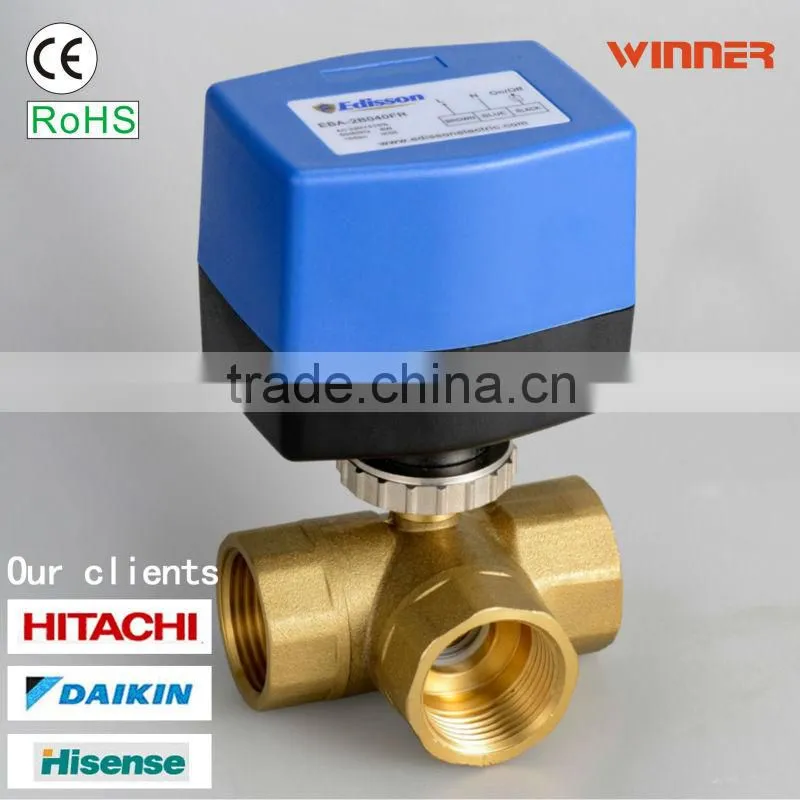

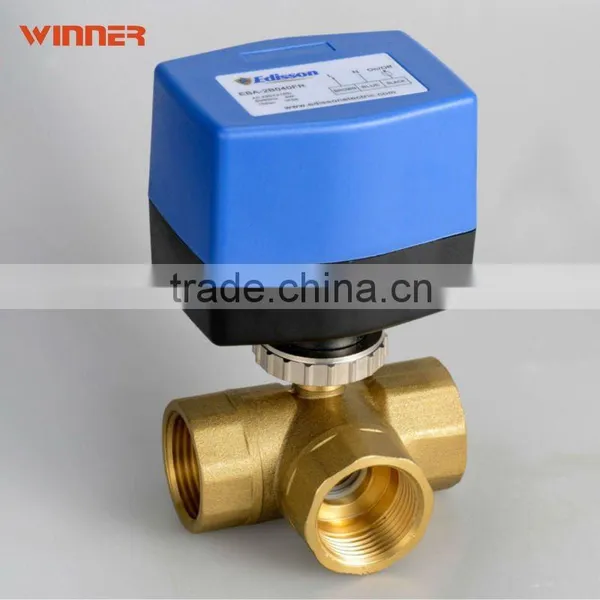

WRA-6320 Motorized Ball Valve for central air control
Actuator data sheet:
WRA-63… AC230/110/24V, 50/60Hz, 3-point or ON/OFF
Output torque: >3.5N.m Angle of rotation: 90°
Protect rank: IP55/IP54 On/off time: 16S
Function :
The actuator is controlled by a modulating on/off control modulation signal, using reversible synchronous motor and gear speed reducer drive to fix and lock.
Matching Brass ball valve:
Medium: cold/hot water, with 50% glycol Temperature of medium: 2°C...90°C
Rated pressure: PN20 Pipe connector: internal thread
Ambient temp. range: −5…+60°C;0…90%RH Size: 1/2’’, 3/4’’ and 1’’
Valve type: 3-way
Valve body: forged brass, Hpb59-1 Seal: ball: EPDM+PTFE
Ball: chrome-plated brass Stem: EPDM+ O-rings
Installation:
Insert the valve stem to the bottom of the actuator, and insert 2 pin, located in the bottom of the actuator to the valve’s mounting hole.
Then screw down the brass cap nut.

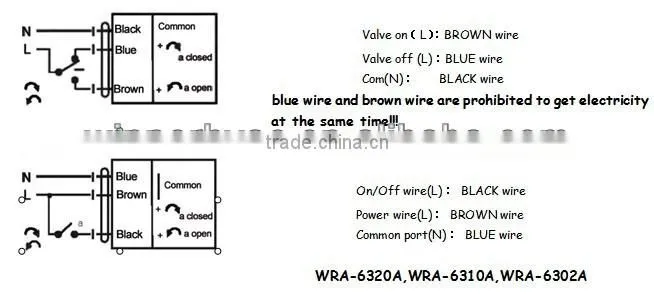

Wiring diagram:

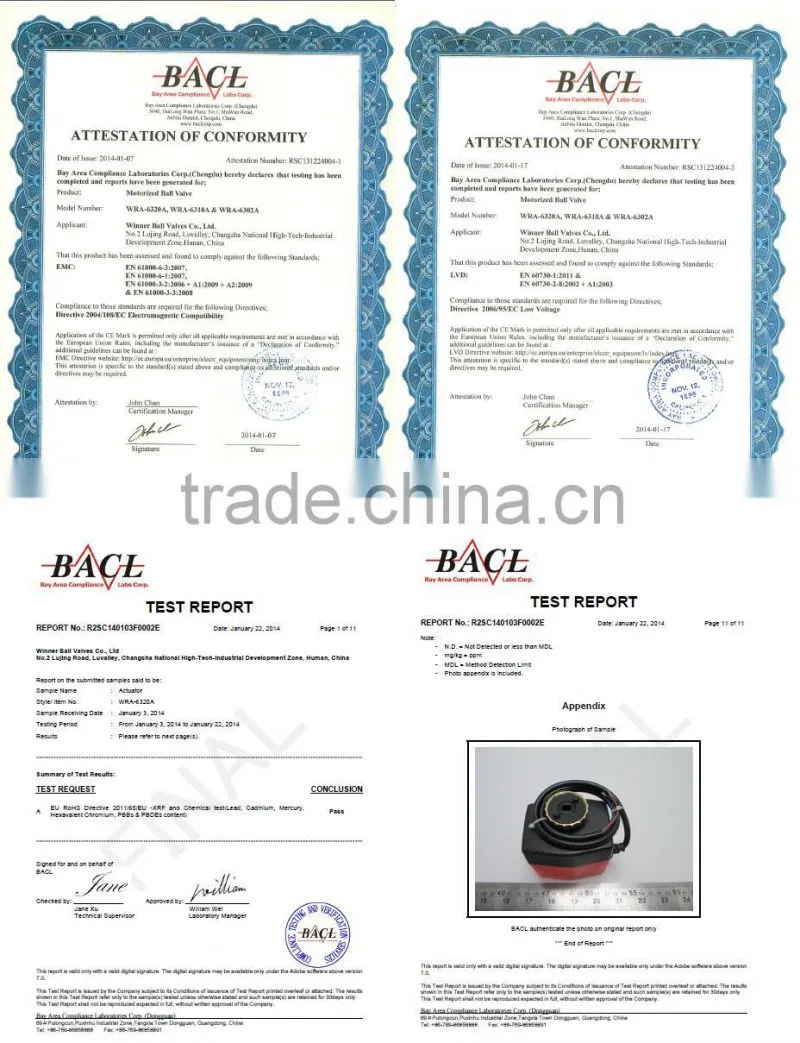

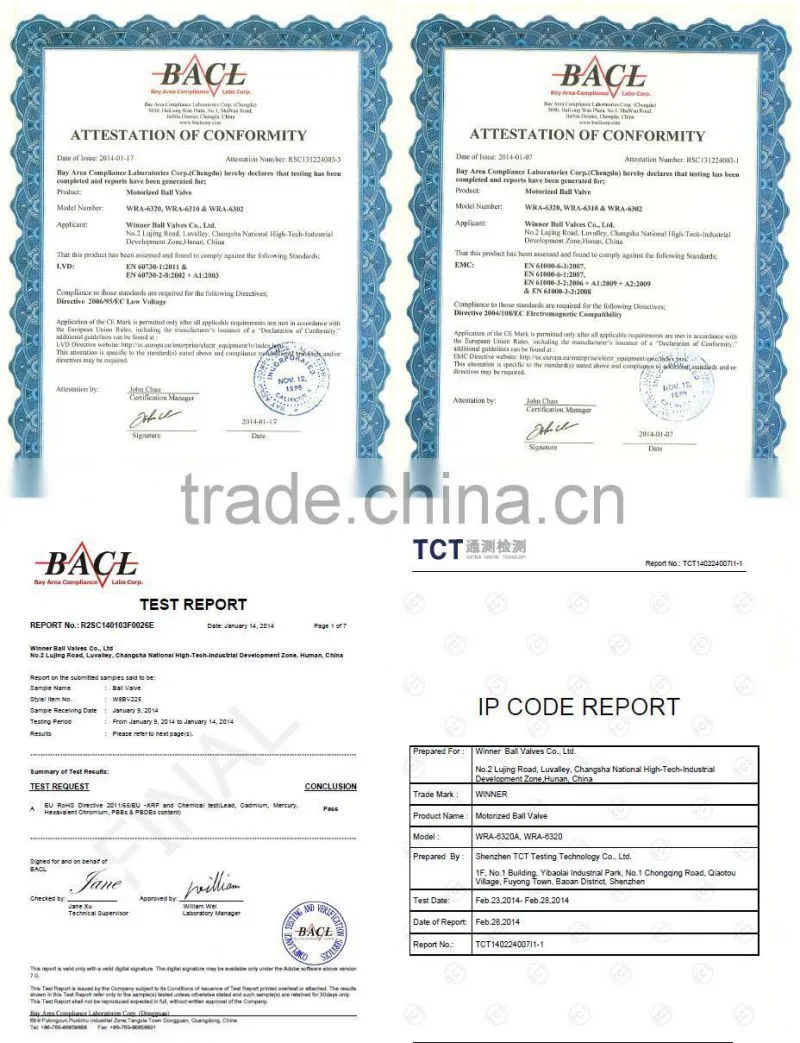

Certificates:

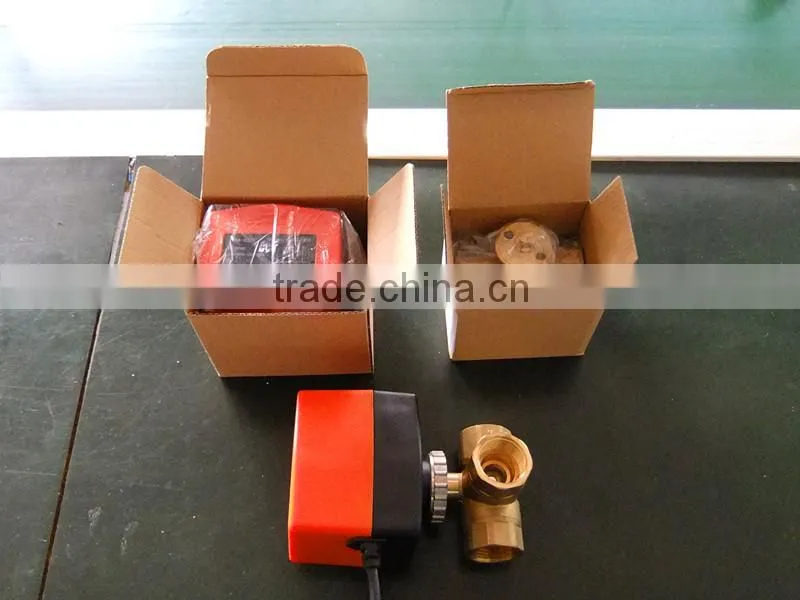

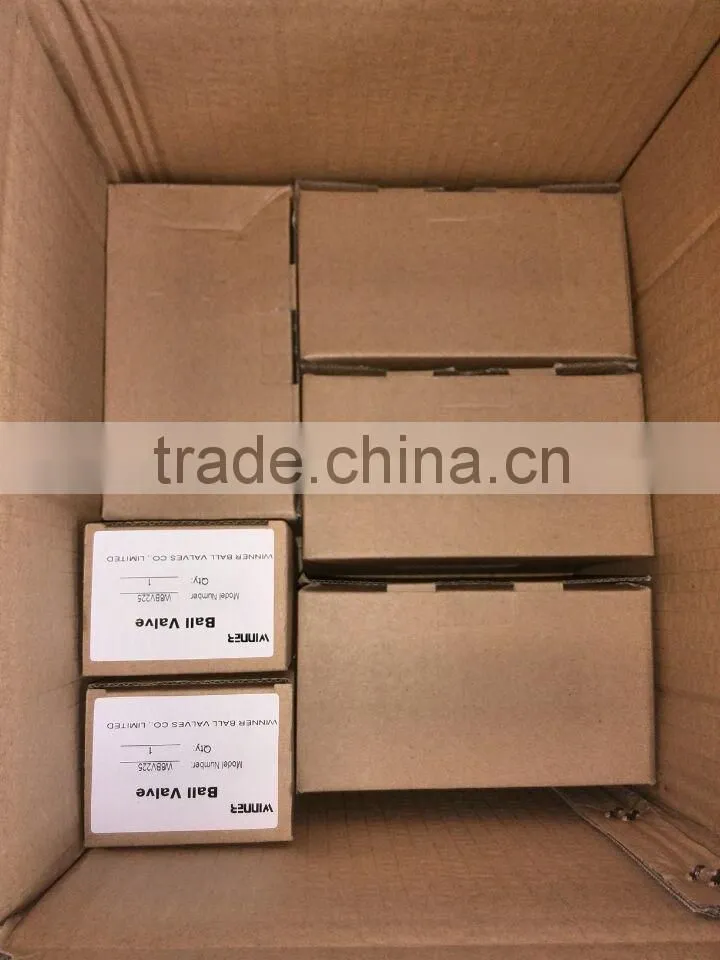

Package:
all goods are packed into inner box, then into master carton carefully and safety.
Remarsks:
1. Payment terms: T/T ( China costruction bank) & Western Union
2.Delivery date: Usual within 3 working days after get payment
