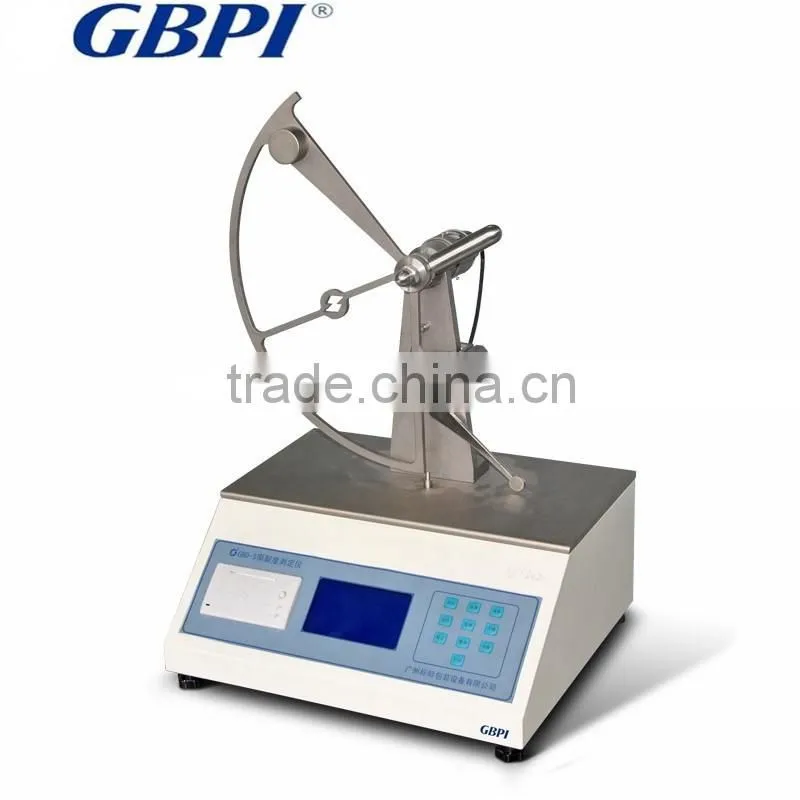

GBD-S Textile Tearing Tester
Function and usage
Mainly test the tear property of paper , mainly using for tearing strength of not more than 1000mN quantitative paper, plastic and foil.
Standards:
ISO 6383,ISO 1974,GB 11999,GB/T 455.1,GB/T 455.2,ASTM D1922,ASTM D1424,ASTM D689,TAPPI T414

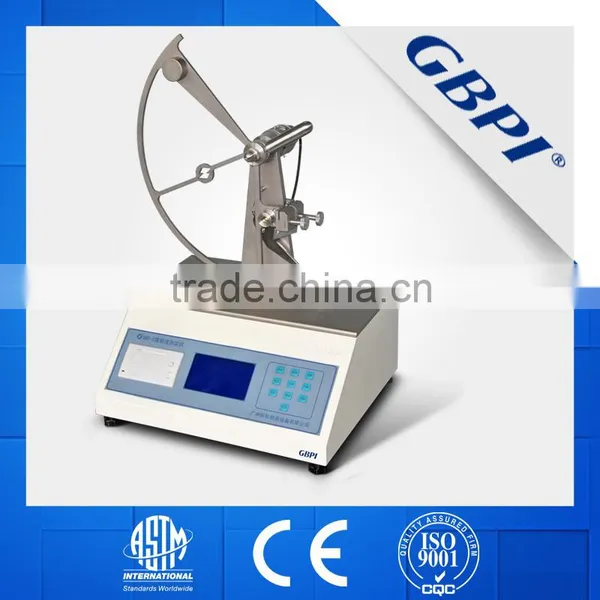

Textile Tearing Tester
working principle:
Lift the pendulum up to certain height, enable it to have a certain potential energy, pendulum tears the specimen while swinging down, computer calculates the decreasing energy caused by tearing.
Unit construction principle
Tearing tester elmendorf method is made up with pendulum bracket, pendulum, shaft, stationary clamp, movable clamp, augmenting weights, knife, pendulum releasing system, and computer.
Applications:
Specifications:
Test range |
0-6400gf |
Tearing arm |
104±1mm |
Initial tearing angle |
27.5°±0.5° |
Gas supply pressure |
0.6Mpa |
Gas supply port |
Φ6mm polyurethane pipe |
Indication error |
within ±0.5% in 20%-90% of max range |
Relative fluctuation |
within 1% |
Instrument size |
430x370x720mm |
After sale Service:
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
About GBPI
GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
Certificates:
ISO FTA
Gradation of the Certified Reference Materials
Calibration
Our customer:
Our Laboratory:
Our team:
