Help CenterImpact Strength Test Machine (GBD-L)
Related Products

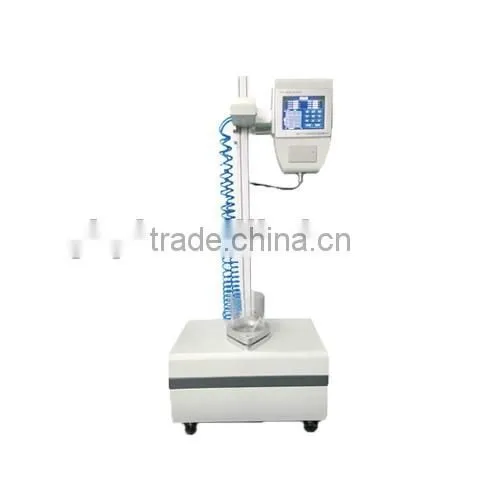

GBD-L Impact Strength Test Machine
Impact Strength Test Machine
Standards:
ISO7765-1, GB/T 9639, GB/T 15267, ASTM D1709, JIS K7124
Application:
Falling Dart Impact Tester is applied to conduct impact test on plastic films ,papers ,sheeting and so on. By testing the impact strength to estimate the material property of impact resistance, widely used in industries of packaging, plastic films, laboratory, research institute, inspection agency and so on.

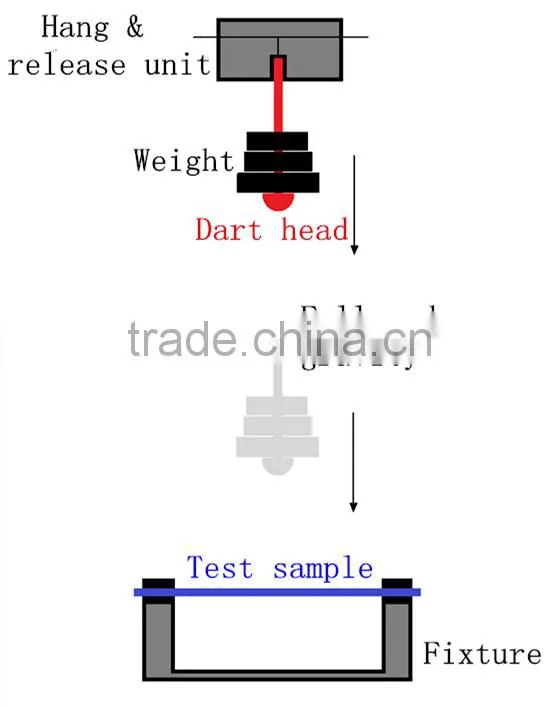

Working principle diagram:
Techinical Parameter:
Dart weight |
50-2000g, 5g/increase, deviation ≤ 0.5% |
Dart diameter |
mode A 38±1mm, mode B 50±1mm |
Clips diameter |
outer 150mm, inner 125mm |
Impact height |
1500mm/660mm |
Test range |
mode A 50~2000g, mode B 300~2000g |
Test accuracy |
1g |
Instrument size |
650× 650×(2200~2600)mm |
Weight |
50kg |
Power supply |
220V 50Hz |
After sale Service:
l 1 year coverage
l Speedy reply, 12hrs response to customer questions
l Software free update
l Minor maintenance ---parts ship within 24 hrs
l Major maintenance---Technical will be sent within 15 days
l Free inhouse training for customer operator
About GBPI
GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
Certificates:
ISO FTA
Gradation of the Certified Reference Materials
Calibration
Our customer:
Our Laboratory:
Our team:
