Help CenterCharpy Pendulum Impact Tester (GBD-B)
Related Products

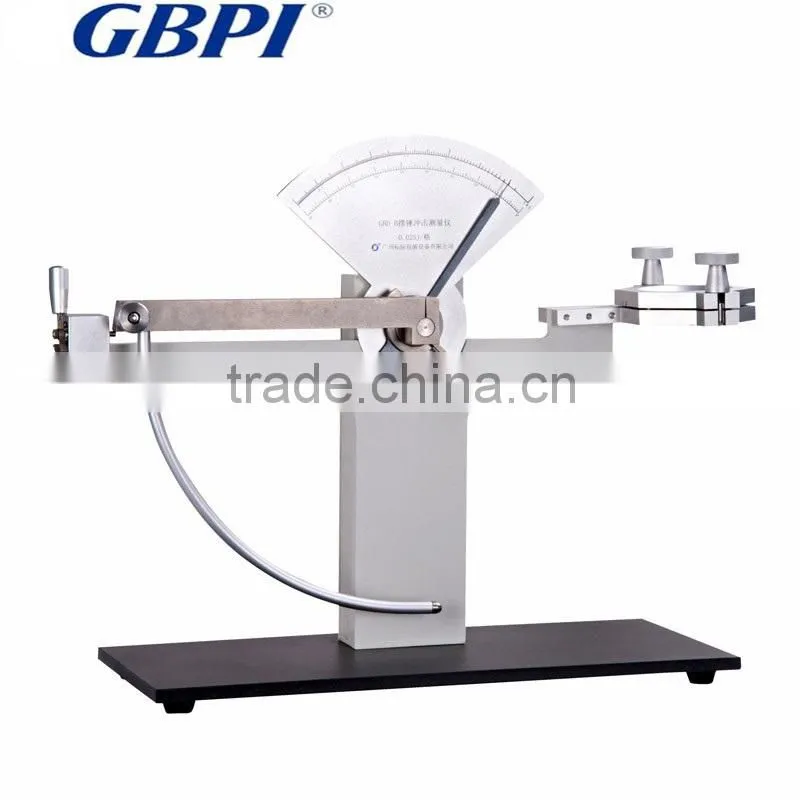

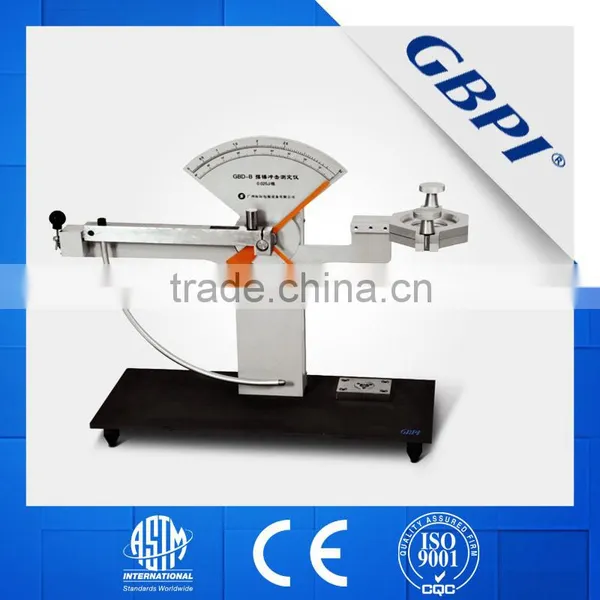

GBD-B Charpy Pendulum Impact Tester
Charpy Pendulum Impact Tester
Standards & Application
The instrument is designed and manufactured according to the ASTM D 3420, applied to determine the film materials like plastics, papers and rubber and the impact elasticity like tinsel materials and so on. Through the piercer of semi globe shape, the instrument impacts and breaks through the sample with certain ram speed so as to measure the consumptive energy of the piercer, and use this energy to estimate the energy value of pendulum impact resistance of the film sample.

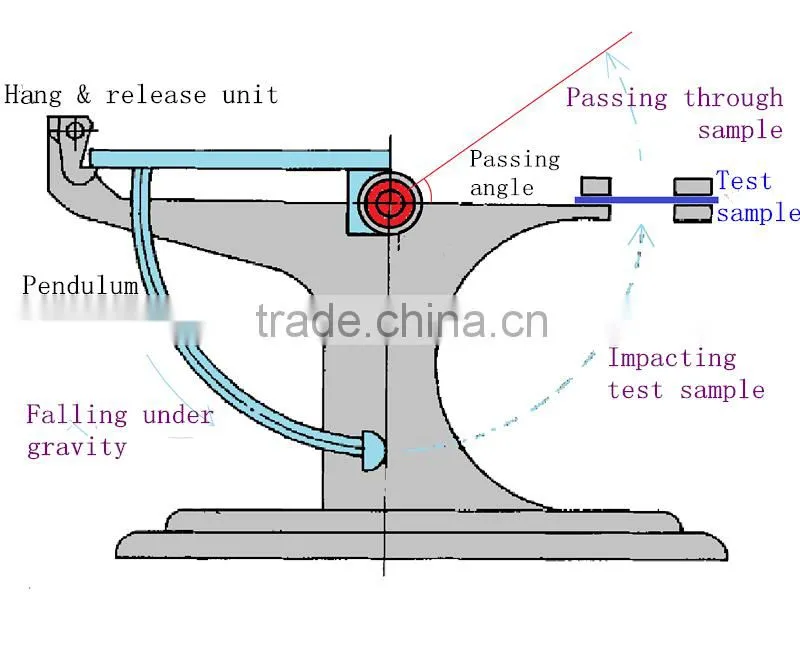

Working Diagram
Measure the energy consumed by pendulum breaking sample to evaluate the impact resistance.
Application:
* Films
Rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP

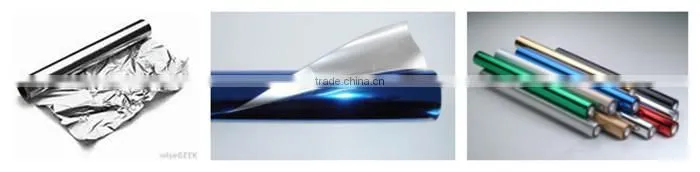

*Metallic foil
Techinical Parameter
Max impact energy |
3J |
|
Min division value |
0.02J |
|
Pendulum swing angle |
90° |
|
Swing semi-diameter of the pendulum |
R 280 mm |
|
Ram speed |
2.5m/S |
|
Piercer size |
D 12.7 mm |
|
Sample holder diameter |
D 60 mm |
|
Sample size required |
100 mm X 100 mm |
|
Instrument size |
740 mm X 260 mm X 560 mm |
|
Features:
1. Dial meter intuitively show test result.
2. Manual operation, easy to use.
3. Can customize clips and impact head.
Service:
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
About GBPI
GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
Certificates:
ISO FTA
Gradation of the Certified Reference Materials
Calibration
Our customer:
Our Laboratory:
Our team:
