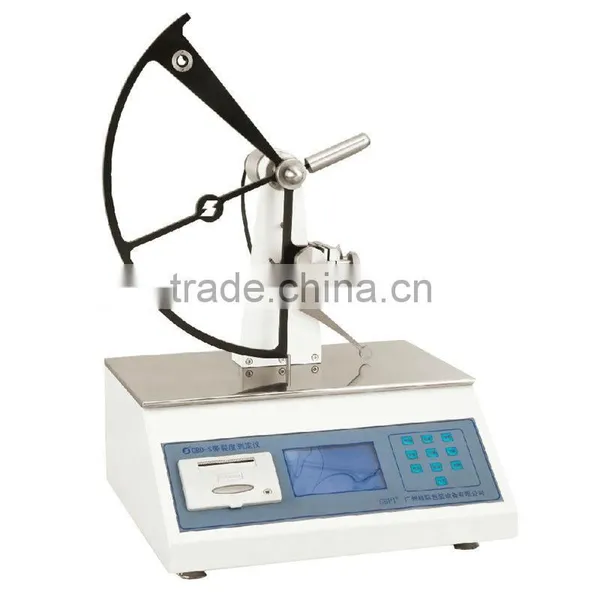

GBD-S Tear Testing EquipmentGBD-S Tear Tester
Function and usage
Mainly test the tear property of paper , mainly using for tearing strength of not more than 1000mN quantitative paper, plastic and foil.
Standards
ISO 6383,ISO 1974,GB 11999,GB/T 455.1,GB/T 455.2,ASTM D1922,ASTM D1424,ASTM D689,TAPPI T414
Test principle
Lift the pendulum up to certain height, enable it to have a certain potential energy, pendulum tears the specimen while swinging down, computer calculates the decreasing energy caused by tearing.
Unit construction principle
Tearing tester elmendorf method is made up with pendulum bracket, pendulum, shaft, stationary clamp, movable clamp, augmenting weights, knife, pendulum releasing system, and computer.
Specifications
Test range:0-1000Mn
Measuring range :0-6400gf
Tearing arm: 104 ± 1mm
Tearing the initial angle: 27.5 degree ± 0.5 degree
Indication error: In the power of the ruler maximum range of 20% -90% range, showing the value of the error should not exceed the maximum range of ± 0.5%
Relatively change value: less than 1%
Sample clamp: by manual
Swing arm release: by air pressure
Software: RS232, computer adjust assist system
Power: 220V/50HZ
Configuration
Cut sample table: no
Standard: Mainframe, 200gf basic pendulum, 1600gf augmenting weight400gf,200gf check weight, communication cable, software
Optional:
Augmenting weight: 800gf, 3200gf, 6400gf
Check weight: 400gf, 800gf, 1600gf, 3200gf,6400gf,
User-owner
Computer, gas source0.2-0.4MPa
Service
1: One year guarantee and all lifetime techinical support
2: USA, Australia Aisa Local agent for service
3 Speedy reply, 12hrs response to customer questions
4 Software free update
5. Minor maintenance ---parts ship within 24 hrs
6 Major maintenance---Technical will be sent within 15 days
