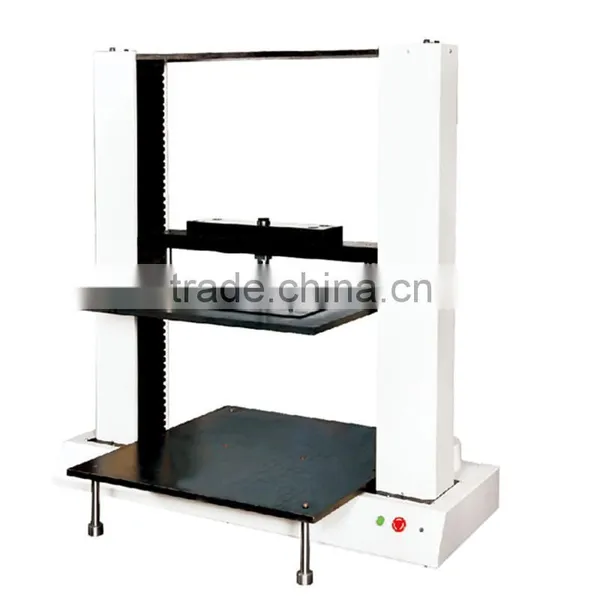

Box Compression Tester
Standards:
GB/T16491,GB4857.4 ,GB/T4857.16,
ISO2872 ,ASTMD642 .ASTM D4169, TAPPI T804, ISO2872,ISO12048,JIS Z0212
Function:
GBN 2000Z Box compression tester is used to test the compression strength, bending strength ,proof pressure, deformation and stowage for flexible packaging cases , corrugated cases, honeycomb crates, and other packaging cases
Techinical Parameter
Model |
GBN 2000Z |
GBN 200Z |
Maximum load |
20KN |
180KG |
Accuracy rating |
Grade 1( ± 1% ) |
0.001KG |
|
Effective force measurement range |
0.4%-100% |
|
Effective testing space |
800(L)mm*800(W)mm* 800(H)mm |
200MMX140MM( working aera ) |
Range of test speed |
0.01-200mm/min (stepless speed changing) |
|
Speed accuracy |
Within ±1% of the indicating value |
|
|
Accuracy of displacement measurement |
Within ±1% of the indicating value |
|
Gas input pressure |
|
0~0.6MPA |
Power supply |
AC220/50HZ |
AC220/50HZ |
Service
1: One year guarantee and all lifetime techinical support
2: USA, Australia Aisa Local agent for service
3 Speedy reply, 12hrs response to customer questions
4 Software free update
5. Minor maintenance ---parts ship within 24 hrs
6 Major maintenance---Technical will be sent within 15 days
Certificate:
Our customer:
Our workshop:
Our team:
