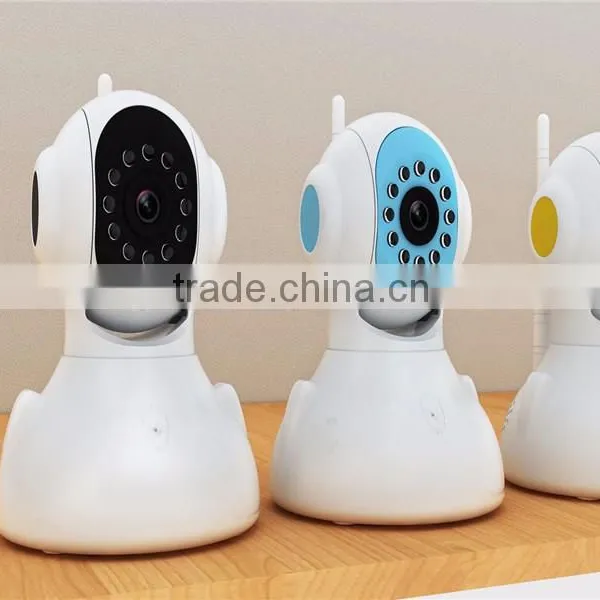

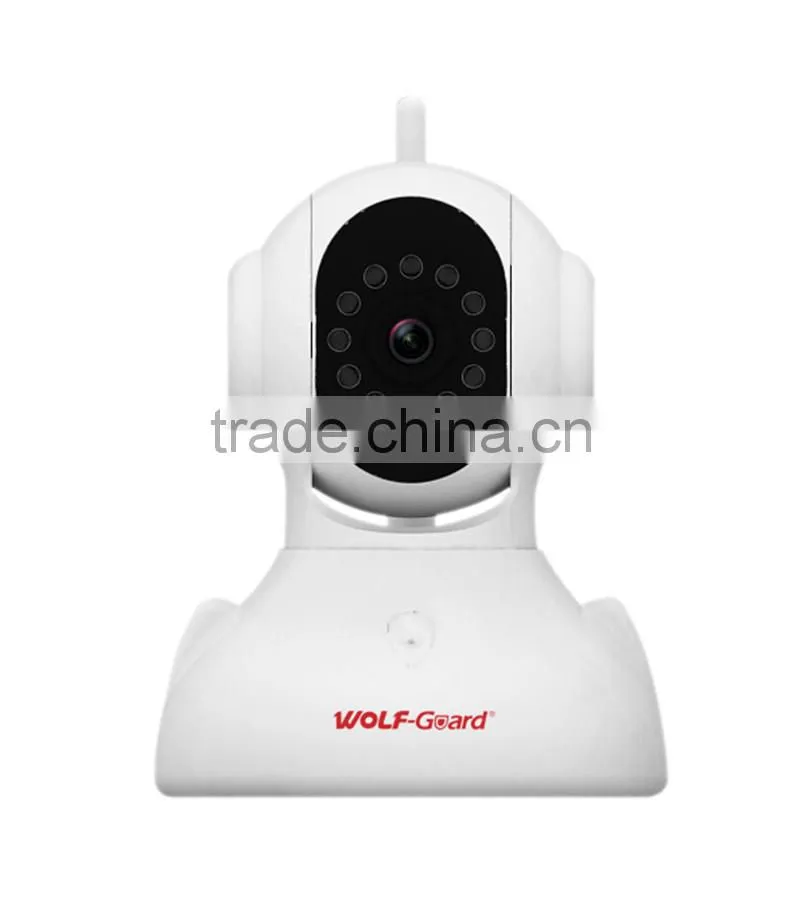

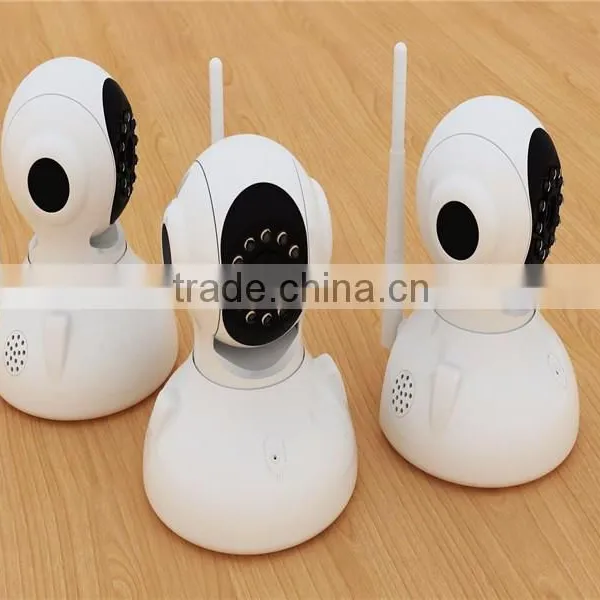

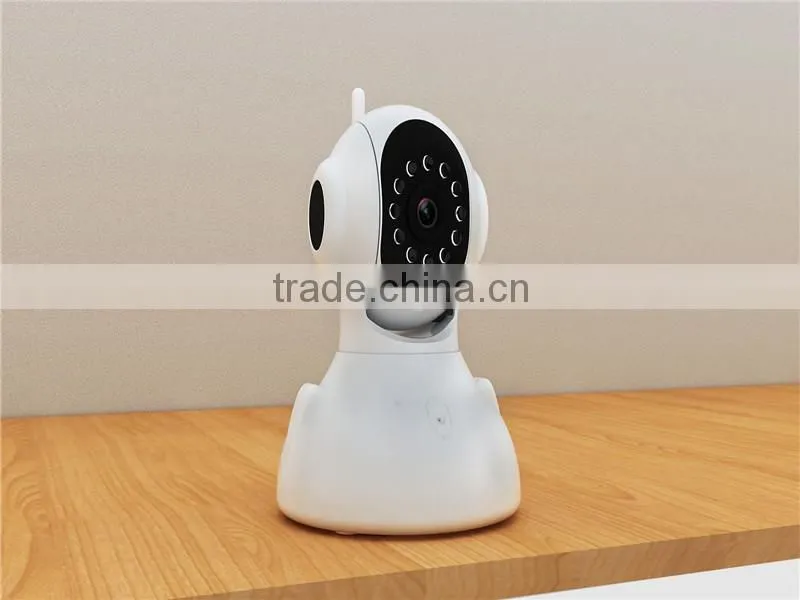

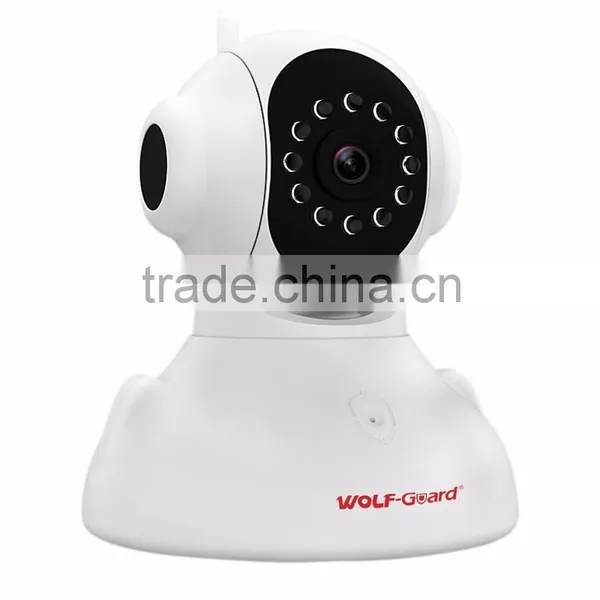

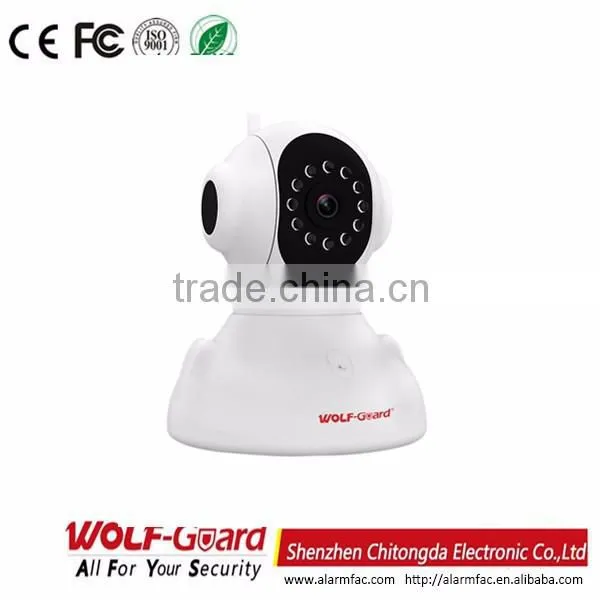

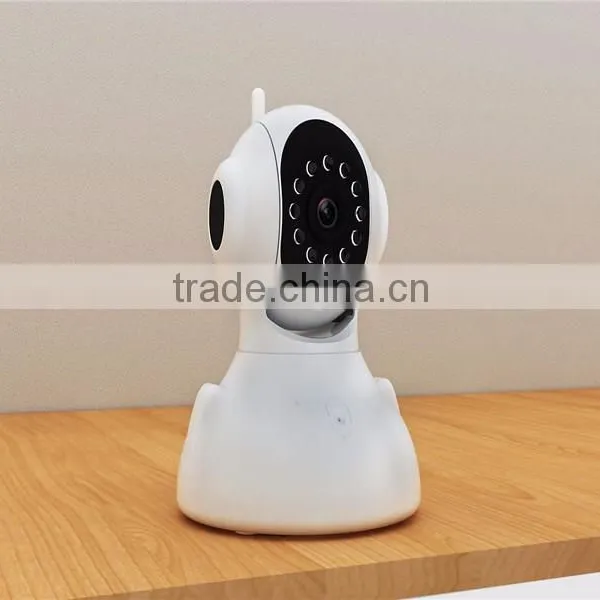

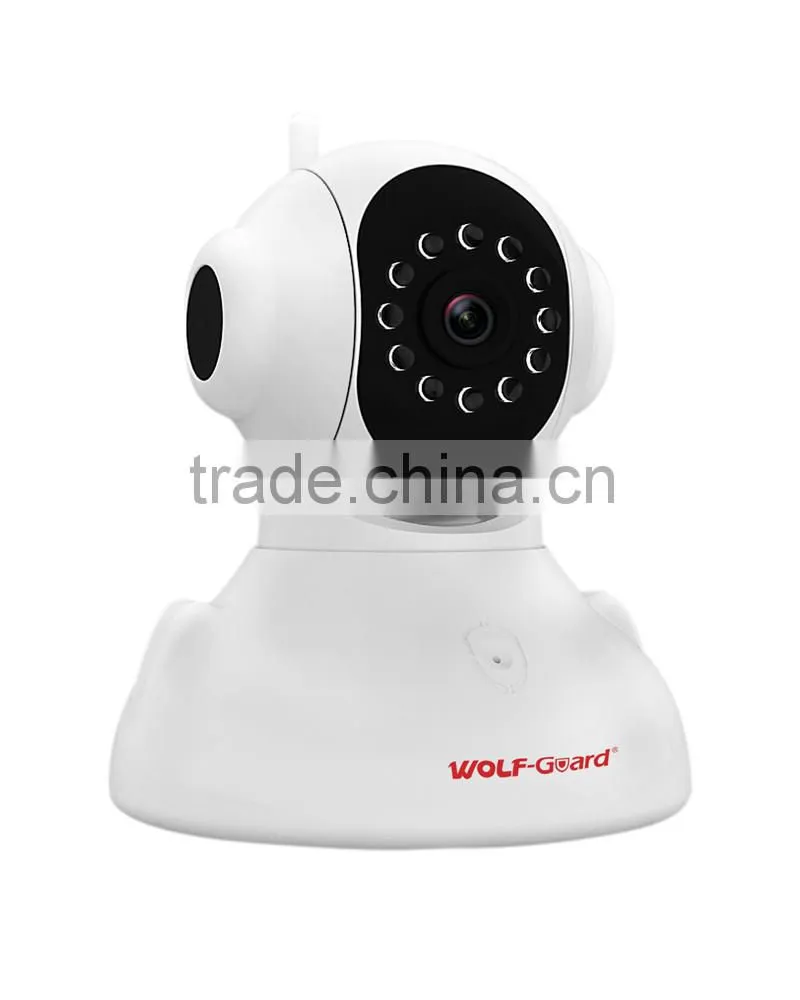

306AX Wifi Video 1 Wired 64 Wireless Camera and Alarm System
1 build in 3C smart card
it is a cloud communication intelligent card that we specially design for eRobot. It can transmit bulky data among different LANS. Through 3C smart card, you don't need domain name or set port in router,you can easily realize remote monitor and video call,It won't charge you any fees except flows generated by network.
2 After install a free APP offered by us in IOS or Andriod device, then start APP program, you can directly dial eRobot's 3C number to make free video call with your family or friend.
3 Through APP program to remote control eRobot, you also can know everything happen at home, and care family always.
4 eRobot can learn code to match the wireless detectors such as smoke detector,remote control,and then construct a wireless alarm system.
5 If no one at home, eRobot can help to monitor your house. If someone break into your house or accidently catch fire, eRobot will alarm immediately, Pushed to your phone client software, at the same time it will captures pictures and send the pictures to you by e-mail, so that you can know what happen at home.
6 eRobot can make continual recording in 24 hours, it can record everything happen at home, it won't miss any wonderful pictures.
7 If we launch new software version, eRobot will update online, so that you can try the newest function.
8 After install a free APP offered by us in IOS or Andriod device, then start APP program, you can directly dial eRobot's 3C number to make free video call with your family or friend.
Technical Parameters:
| Model: 306AX | Product Features | |||||
|
|
H.264 video compression | |||||
| Support IE ,IOS , Android , PC etc. | ||||||
| Support 64 Wireless Defence Alarm Zone | ||||||
| Built-in Siren 75dB Two Way Speaker | ||||||
| 3 Sets Video Alarm ID ,1 set Mail Alarm ID | ||||||
| High Definition 1280*720,clear image | ||||||
| P2P technology , plug and play : no any settings | ||||||
| Smart transmission technology: adaptive bandwidth, dynamic code rate adjustment, voice first, the jitter buffer. | ||||||
| Support two-way audio, telecommunication level of signal processing, (echo cancellation, noise suppression, comfort noise, silence suppression) | ||||||
| Support Android /iOS system mobile devices, remote real-time monitoring(25 fps image transmission, 720P HD images) | ||||||
| Support multiple platforms, terminals, networks | ||||||
| Support remote firmware upgrade | ||||||
| Support multiple-users access ,multiple users management | ||||||
| Motion detection, I/O alarm, real-time App push notifications | ||||||
| 12 pcs infrared LEDs, night vision distance: 10 meters, 24 hours day and night monitoring, IR-CUT switch | ||||||
| Support micro SD card (max 32 GB) storage | ||||||
| Support WIFI (IEEE802.11 b/g/n) | ||||||
| Support QR code login | ||||||
| Support Pan and Tilt (level: 320 ° & vertical: 120 °) | ||||||
| POE power supply (optional) | ||||||
| specifications | 306AX | |||||
| Image sensor | Image sensor | 1/4 "color CMOS sensor | ||||
| Display resolution | 1280 * 720 (720P) | |||||
| Lens | f: 3.6mm, F:2.4 | |||||
| Minimum illumination | 0.5Lux | |||||
| Audio | Input/output | Two-way audio (built-in microphone and speaker) | ||||
| Audio compression | AAC(Advanced Audio Coding) | |||||
| Video | Video compression | H.264 | ||||
| Lighting frequency | 50Hz, 60Hz | |||||
| Image frame rate | 25fps | |||||
| Image resolution | 1280*720 | |||||
| Image adjustment | Brightness, Contrast, Saturation, Sharpness | |||||
| White balance, BLC | Automatically | |||||
| Night vision | 12 infrared LEDs, IR distance: 10 meters | |||||
| Internet | Wireless networks | WiFi(IEEE802.11b/g/n),External antenna | ||||
| Ethernet | 10/100Mbps RJ-45 interface | |||||
| Protocols | TCP/IP.UDP/IP.HTTP.DHCP | |||||
| IP address | Static IP address and dynamic IP address | |||||
| Alarm | Alarm detection | External I/O input trigger (normally open type, the switch quantity), motion detection | ||||
| Alarm linkage | Snapshot, audio/video record, external I/O output trigger | |||||
| Alarm notification | Real-time App push notifications | |||||
| Interface | power | 1DC 5V / 2.0 A, power consumption < 8W | ||||
| Audio input/output | 1CH audio input/output (3.5 MM audio connectors) | |||||
| Buttons | A reset button, a WPS (WiFi Protected Setup) button | |||||
| Alarm input/output | Switch input/output interface | |||||
| Network interface | One 10/100 Mbps RJ-45 self-adaptive interface | |||||
| WiFi | External antenna | |||||
| Others | pan & tilt | Level: 320 ° & vertical: 120 ° | ||||
| LED instructions | Network signal/power/network function | |||||
| Video storage | Micro SD card (max 32 GB) storage | |||||
| Environment | Work temperature | 0° ~ 55°C (32°F ~ 131°F) | ||||
| Work humidity | 10% ~ 80% No condensation) | |||||
| Storage temperature | -10°C ~ 60° (14°F ~ 140°F) | |||||
| Storage humidity | 0% ~ 90%(No condensation) | |||||
| Specifications | Size(L*W*H) | 112(L) *114(W) *157(H)mm | ||||
| Net weight | 562g | |||||
