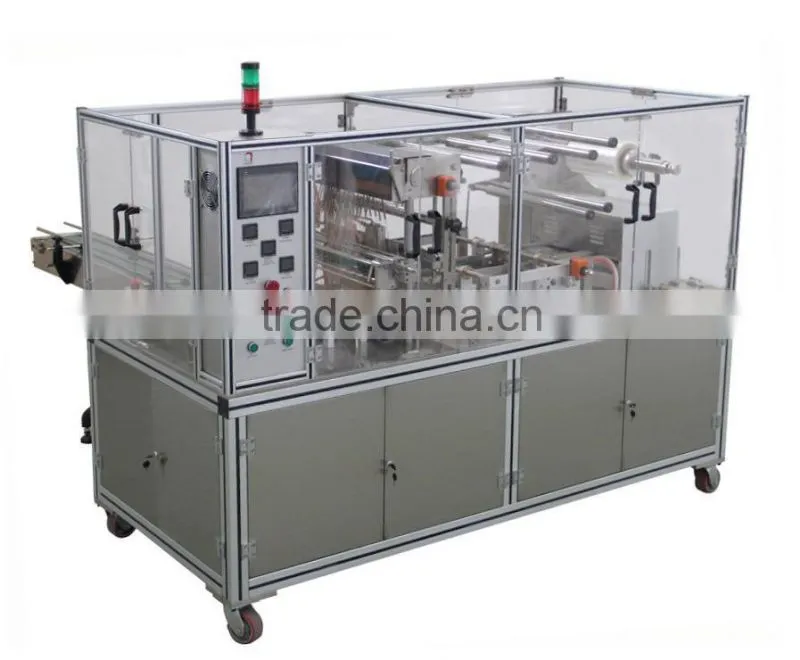

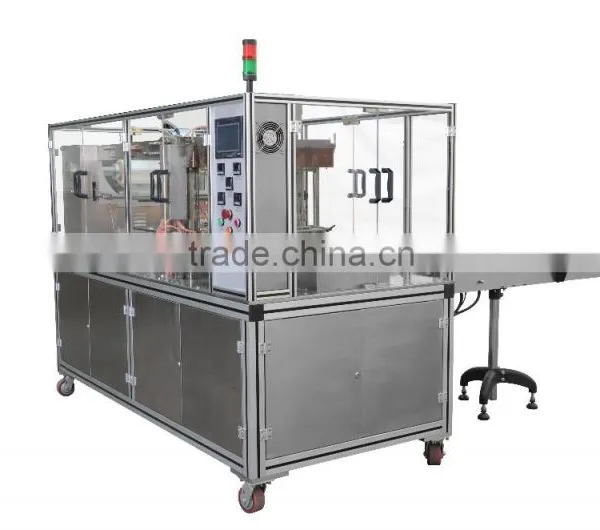

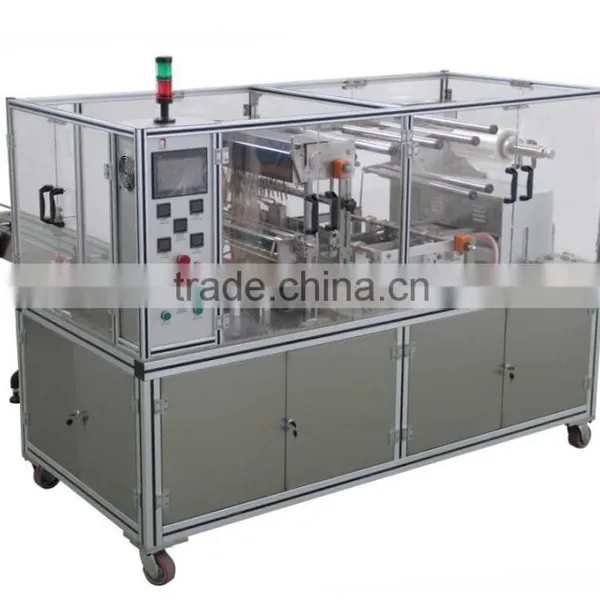

XT-480 Adjustable Cellophane Tri-dimensiona Overwrapping Machine (With Tear Tape)
Uses & Functions:
This machine is suitable for single automatic packaging of various carton boxes products in drug, health product, food, cosmetics, stationery and audio & video products such as the packaging of single box and bundled box of drug, pocker, VCD, DVD, CD boxes, tape, cigarette, napkin paper, chewing gum, eraser etc. Functional features: this machine is controlled by PLC interface, which is drived by cylinder, and the film falling system is controlled by servo motor. The dimension of film could be adjusted freely. It has the features of stable and reliable operation, firm sealing. The tear tape has the U-type easy tear gap. The machine is made up of imported alloy and closed protection shell. The appearance is very beautiful and attractive, and it is very easy to be operated.
Main Technical Parameters:
Packaging speed |
12-23(cases)/min |
Packaging dimension(mm) |
(L)100-400mm(W)45-240mm(H)20-115mm |
Equipment dimension(mm) |
(L)2180×(W)1000×(H)1500mm |
Conveyor dimension |
(L)1600×(W)270×(H)770mm |
Main gas working pressure |
0.6-0.7mpa |
Weight(about) |
800 kg |
Total power |
6.5 kw |
Voltage |
3×380V+N+PE |
Alibaba onsite check picture:
