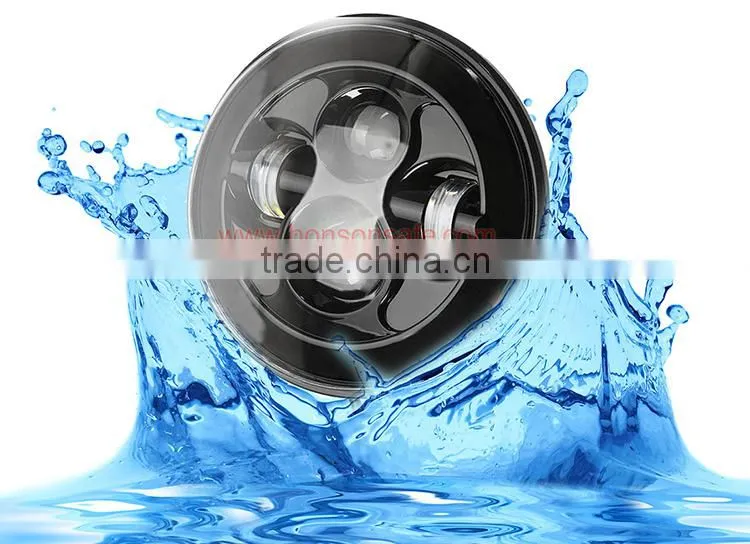

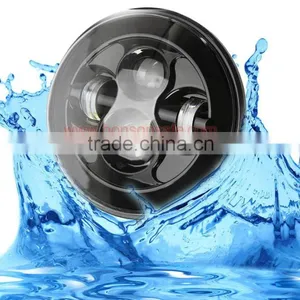

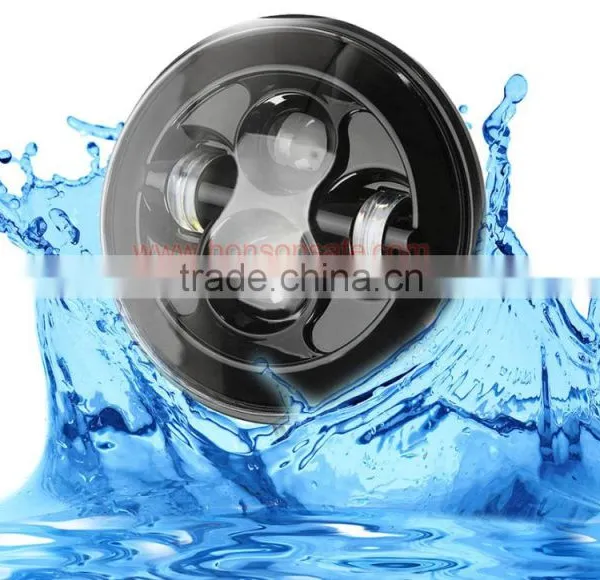

Help CenterLED Driving Lights LED-0860L for JEEP Offroad Lighthead
Related Products
-
60W CREE LED Offroad Vehicle Work Lights LED-D3060US$ 65.00 - 65.00MOQ: 10 Pieces -
75W DC9-32V LED Driving Lights LED-0875US$ 80.00 - 80.00MOQ: 10 Pieces
-
120W/180W/240W/288W/300W CREE LED Bending Type Off-road Vehicle Lightbar LED-BW3288US$ 80 - 120MOQ: 1 Piece
-
40W/80W/120W/160W/200W/240W/280W Double-Deck CREE LED Off-road Vehicle Lightbar LED-BT2280US$ 80 - 120MOQ: 1 Piece
-
9W LED Colorful Transform Car Chassis Lights Decorative Light, Adjustable Brightness,changed With the Car Stereo Rhythm.US$ 20 - 180MOQ: 1 Piece
1 |
Type: |
LED Off-road vehicle work lights |
2 |
Brand Name: |
HONSON |
3 |
Model Number: |
LED-0860L |
4 |
Voltage: |
DC9V-30V |
5 |
Light source: |
12pcs*5W CREE LED/ Flood Light and Spot Lights Optional |
6 |
LED/Lens color: |
Red/Blue/Amber/White/Green |
7 |
Theoretical Lumens Output: |
4800LM |
8 |
Materials: |
Diecast aluminum housing/PC Cover |
9 |
Switch: |
Can with wireless controller to control flashing |
10 |
Color Temperature: |
6000K |
11 |
Waterproof: |
IP67 |
12 |
Working Temperature: |
-45 to +70 degree |
13 |
Certification: |
CE ROHS |
14 |
Size(L/W/H): |
165mm*165mm*110mm |
15 |
Life time: |
50000h |
16 |
Mounting Bracket: |
Stainless Steel |
Fitment:
Please verify that this headlight fits your vehicle before you purchase

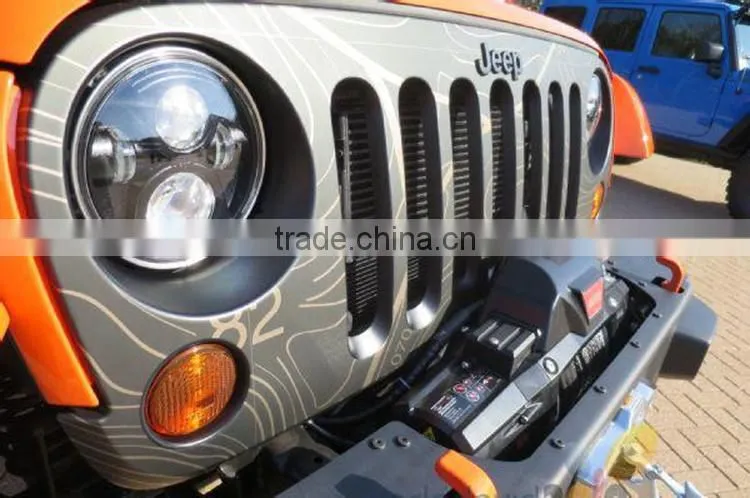

For Jeep Wrangler TJ 2 Door 1997~2006
For Jeep Wrangler JK 2 Door 2007~2014
For Jeep Wrangler LJ unlimited(4 Door) 2004~2006
For Jeep Wrangler JK 2007~2015
Also apply to the following models(may need to cut the connetor for wiring)
For Land Rover Defender 110 1993
For Land Rover Defender 90 1994~1995
For Land Rover Defender 90 1997
For Land Rover Defender 2012~2014
Part Number: 0547891- sold individually
Technical Specification:

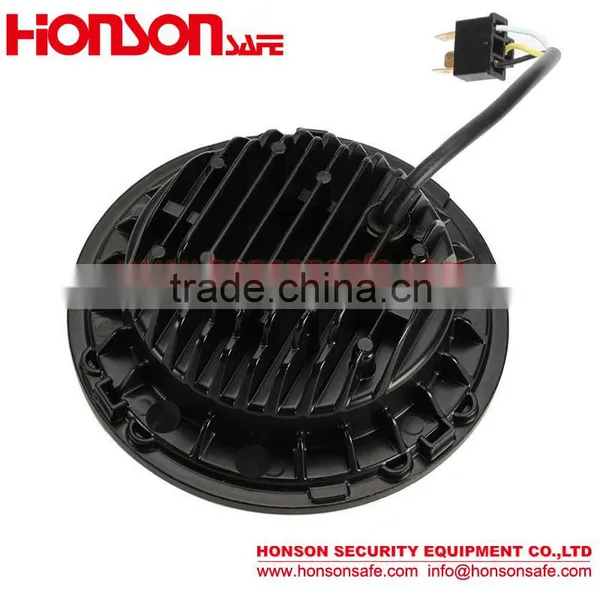

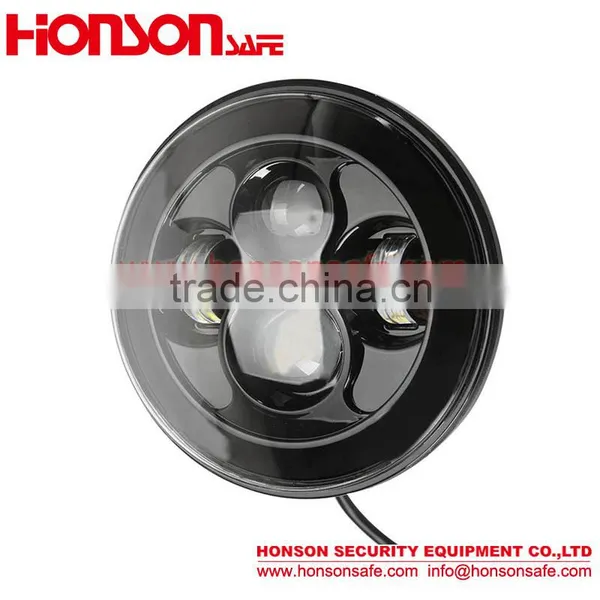

Headlight Type: 7" round,Black inner bezel
Connector Type: H4
Power: 40W@high beam,20W@low beam
LED Quantity: 4
Input Voltage: DC12V/24V
Luminous Flux: 3980lm@high beam,1900@low beam
Size(D*H): approx 180mm(7")*95mm(3.75")

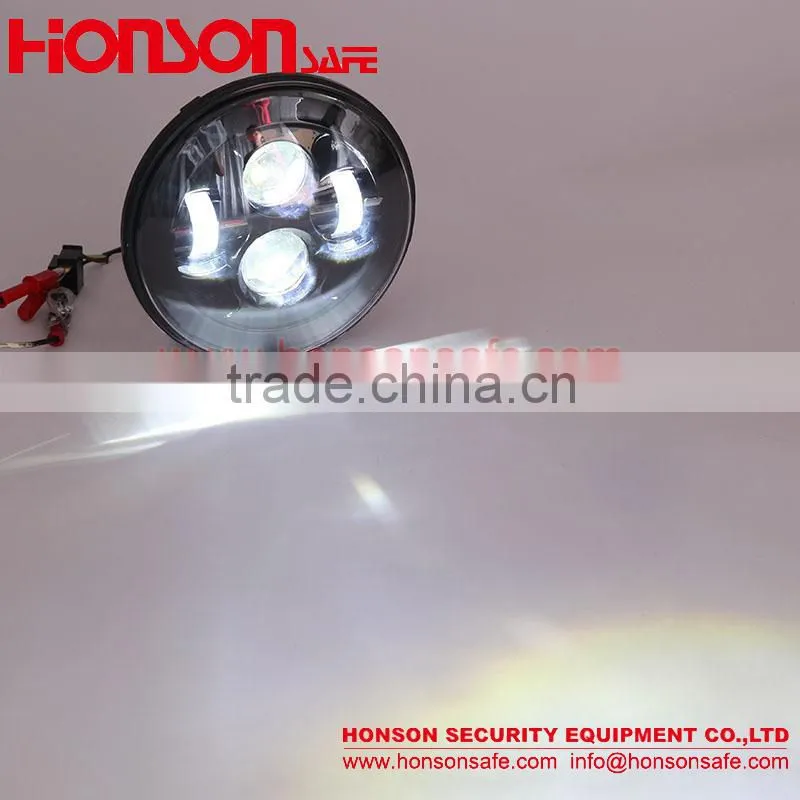

Two modes:high beam-all LEDs on,Low beam- only two side LEDs on
Wire connection: Black-ground,Brown-high beam,Green/yellow-low beam

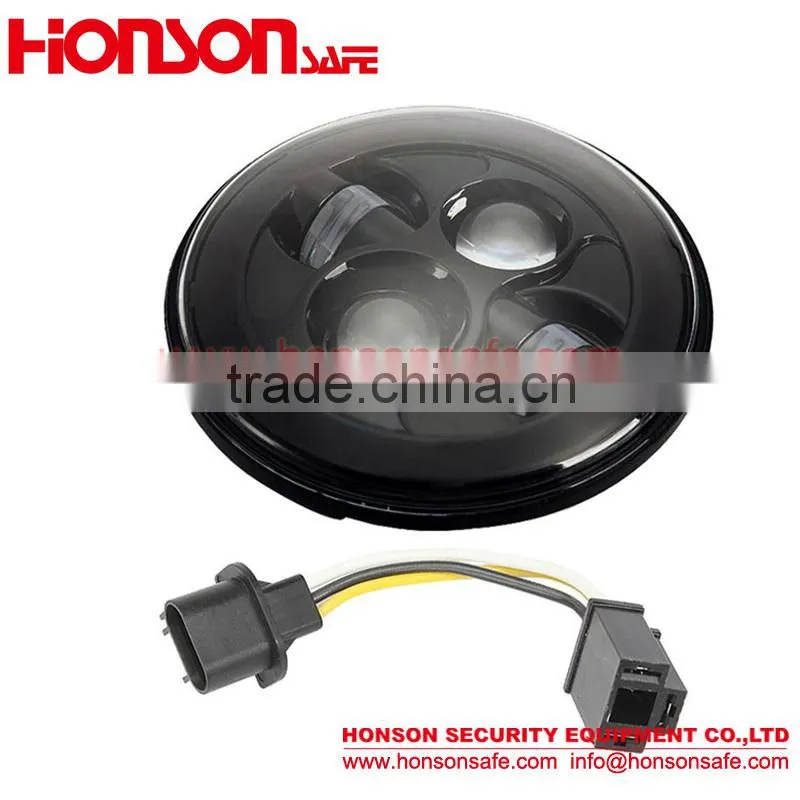

Come with a H13 to H4 adapter harness for Jeep wrangler JK
Package Included:
1x 7" round LED headlight for Jeep Wrangler
Feature:
High Brightness CREE LEDS
Compact structure design, effectve view angles, Fashion, Wide range of use, appearance,Simple installation.
Material:Casting Aluminum Alloy Housing/PC Lens Rugged, Light weight.
The glass surface is made of PC Lens with high light transmission
Applying to difference light resource(Such High LED Lamp)
The suitable design for heating elimination.
The high performance of tight waterproof,dustproof , quakeproof.
Anti explosion
Install light resource easily
The valid irradiation distance is much more longer than normal bulb.
