Film Sticking Machine for Screen Protector Film

Film Sticking Machine for Screen Protector Film thumbnail-1
Film Sticking Machine for Screen Protector Film photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
chuangwei
Model Number:
ATM-2
Contact Supplier Request Quote Chat Now
Dongguan Chuangwei Electronic Equipment Manufactory
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name chuangwei
Model Number ATM-2

Specifications

name:Film Sticking Machine ATM-2
selling point:reliable quality
advantage:professional design



Applications:
1,machine product application in mobile phones, GPS, digital camera, LCD, touch panel, OELD, MP4 and     other electronic products.Lamination finished panels have surface smooth, no bubbles, no wrinkles, completely solve the manual laminating film without no efficiency and high quality problem, make your company to reduce costs and improve efficiency.
2,the machine is used mainly for automaticly laminating ITO film ( Sensor ), all kinds of protective film, all kinds of explosion-proof film, functional thin film switch, double-sided tape, insulating film, shading treatment film etc.
3,the machine has high efficiency and automation degree, convenient operation, automatic feeding, automatic tear film, automatic laminating continuous composite motion .

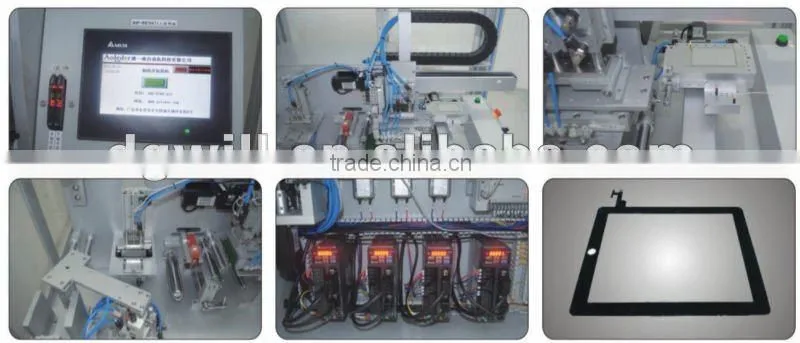

Film Sticking Machine for screen protector film



Characteristics:
1, can laminate the single sheet or roll film by two ways.
2, the creative roller position control eliminates the linear bubble.
3, according to the film type diaphragm attached to the demand for change the roller.
4, the main components imported aluminum alloy, through strict precision machining and grinding and surface treatment, make the machine keep stable for a long time working, equipment parts precision without the stress deformation effects.
5, machine top mounting FFU, strictly meet the clean working environment.
6, servo motor driven feeding material, import brands fiber sensor for positioning.
7, precision mechanical hand to achieve film lamination action.
8, workbench using right-angle edge positioning and vacuum adsorption fixed position, avoid scratching, simple operation.
9, imports PLC control, interface using color screen human-machine interface, can set the parameters and store multiple groups of different products.
10, photoelectric inductive XY achieve two-axis calibration function, and workbench equip with the micrometer can make the XY orientation precision slight adjust , thus ensure high fitting precision.
11, use the professional structure to achieve film lamination with  product surface smooth, no bubbles, no wrinkles.
12, use LED lighting,  energy-saving lamp, save cost.
13, the machine structure humanity, safe operation, beautiful shape.



Specifications and parameters:

1, tracheal diameter:Φ 12mm
2, working gas pressure:0.4-0.6MPa
3, working power supply:220V  50HZ
4, feed rate: adjustable
5, lamination accuracy:± 0.1mm
6, lamination size: 2-5inches
7, correction methods: X, Y correction
8, working cleanliness: class 100 FFU high-efficiency filtering device
9, incoming film method:

10, manpower equipment : one person with one machine, responsible for feeding panel and recovering  finished panel.
11, lamination efficiency:12-16pcs/min   about 900pcs/H
12, machine size:1250( L ) *450( W ) *1980( H ) mm
