Specifications
:Touch screen Film Attachment Machine2.delivery time: 20 days
3.selling point: high efficient
4.establish year:1999
Specification:
| Model | ATM-1 |
| Gas supply pressure | ≥ 0.4Mpa |
| Working voltage | AC220V 50/60Hz |
| Correction methods | XY correction |
| Fitting accuracy | ± 0.05mm |
| Maximum fit size | 2.5~5 inch 950*850*1720mm |
| Work cleanliness | one hundred and efficient filter |
| Fit results | smooth, without folds |
| The efficiency of fitting | 10~20 pcs/min |
| Weight | 450KG |
| Size | 950*850*1720mm |
Features:

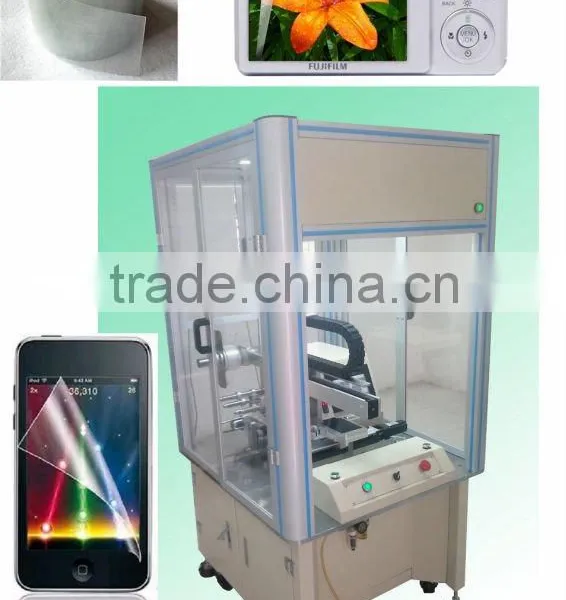

Automatic sticking film of the touch screen is designed to adapt to stick the touch screen mobile
phone lens, digital photo frame, car navigation systems, with optical adhesive film, protective film,
explosion-proof membrane film, polarizer high precision and no bubbles fit the requirements of the
development of precision sticking film machine. The photoelectric sensor XY direction of the high
accuracy position automatic proofreading, to ensure the accuracy of the fitting process. By the PLC,fit bodies, and components of the feed mechanism, the man-machine interface. The device is characterized by small size, positioning reliable, secure; PLC control, feeding positioning servo
system control, display and operation of the human-machine interface, high precision control,easy to adjust.
Advantages:
1. The machine ensure that no bubbles and no scratches when sticking film.
2. Have Stable performance, sticking film with high precision, high work efficiency, and greatly improves the production efficiency and product qualification rate
3. Beautiful appearence and reasonable price
Applications:
The machine is mainly designed for sticking protective film and riot film on the screen&panel of mobile phones, GPS, handheld computers, MP4, digital cameras products.
