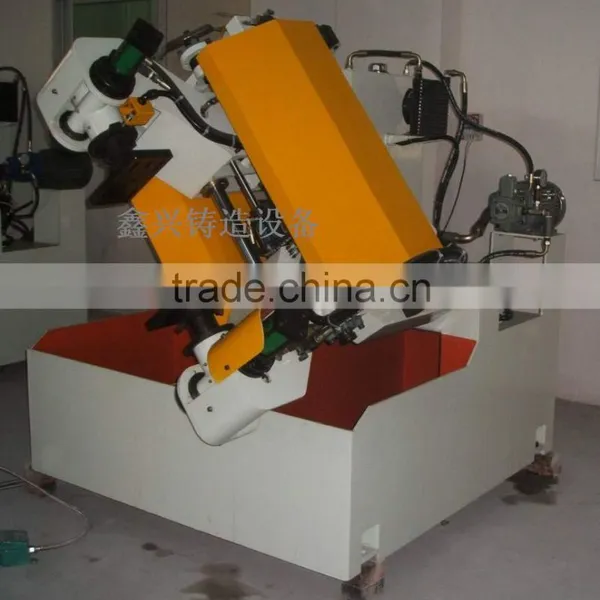

Gravity Die Casting Machine
Machine features:
1) Japanese Mitsubishi PLC controls, full hydraulic drive, high dependability.
2) Can adjust the incline angle, biggest can up to 90 degrees.
3) Three kinds of functions as manual, single-cycle automatic, automatic circulation.
4) Three pouring methods: pouring from front, side & top. Its suitable for different workpieces pouring.
5) Urgent stop button is set on the machine body, it is for safety.
6) Activity button is set on the machine body, it is convenient for mould installing and regulating.
7) Its applied to gravity casting of copper & non-ferroalloy.
Main technical parameter:
|
Biggest mould size
|
450mm |
Hydraulic pressure impetus |
4.5kw |
Most open mould distance |
400mm |
Mix motive force
|
1.1×2kw |
Most close mould distance |
300mm |
Hydraulic pressure
|
4.0MPa |
|
Biggest mould weight
|
100kg |
Pouring angle
|
Positive pouring 0-90 |
|
Biggest casting weight
|
5kg |
Side pouring 0-90
|
|
|
Operation function
|
Manual automatic circulation |
Machine weight
|
2000kg |

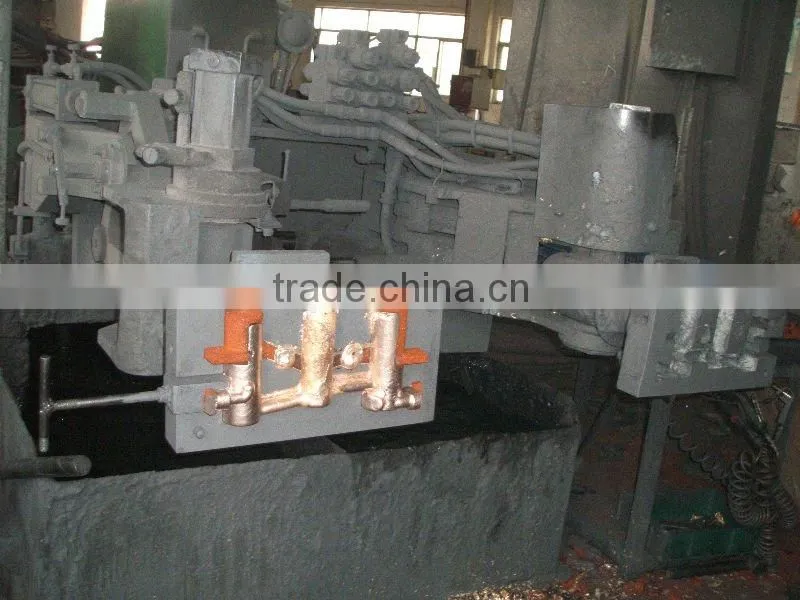

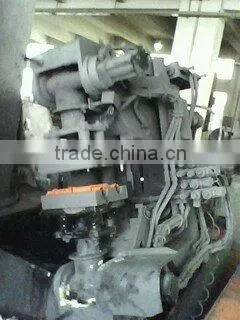

Casting site picture:
Xinxing casting which is specializes in various kinds of casting equipment.We can provide the whole production process equipment and technical support.
