Lintratek 4G LTE repeater with LCD display booster FDD LTE 2600mhz 4g display repeater
Specification:
| Model No | KW20L-LTE-26 4g signal booster | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | 4G LTE 2600 | 2500-2570 Mhz | 2620-2690 Mhz |
| Output Power | 15±2dBm | 20 ±2dBm | |
| Gain | 65 ±2 dB | 70±2dB | |
| LED Display screen | show signal bars, Gain,power detect, DC power | ||
| Bandwidth | Wide Band | ||
| Ripple in Band | WCDMA≤5dB | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 2A | ||
| Power Comsumption | < 6W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Dimensions (D*W*H ) | 200*110*25(mm) | ||
| weight | 1Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||

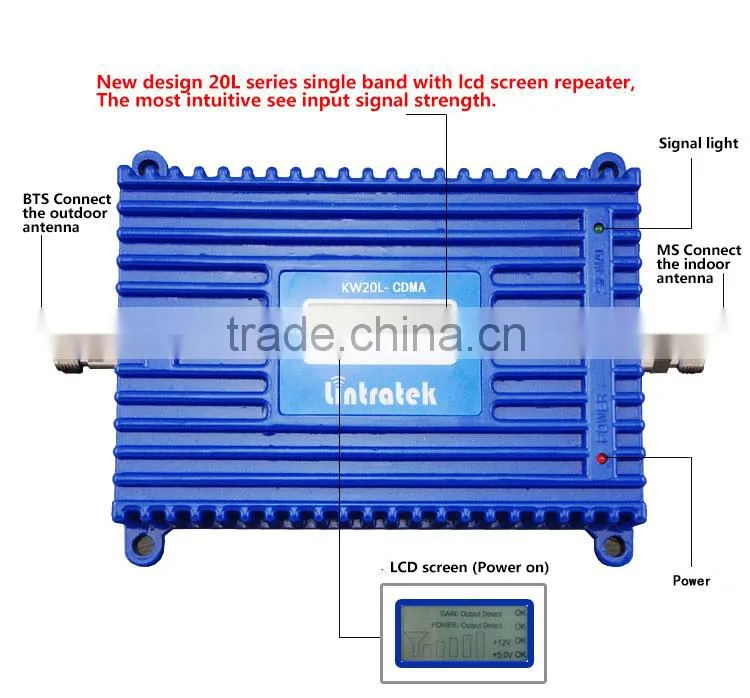

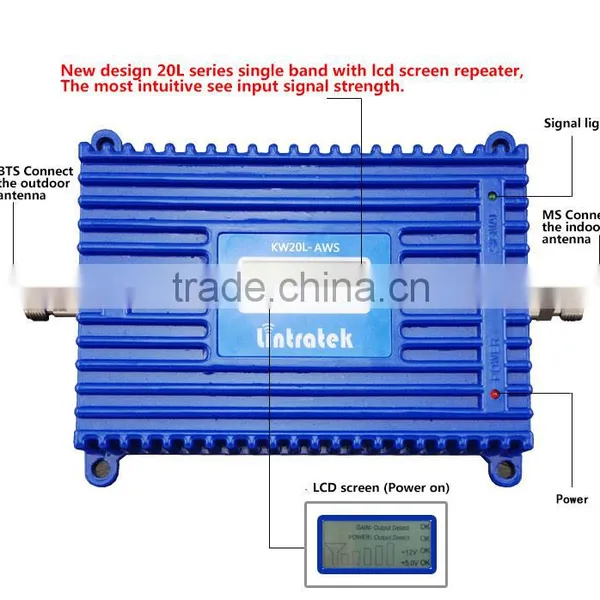

Display details:
After sale service
We have two years quality warranty for all customers,you can return goods to us when you receive defective repeater,but freight charges should be responsible by buyer.
How should you install repeater (very easy and simple):
Step 1: Use your mobile photo to test signal strength outside house or on roof, -70dbm is the basic requirement (full bar).
Step 2 Install outdoor antenna in that location and keep adjusting, point it to signal tower station, try to get best signal.
Step3: Run outdoor coaxial cable into building in a convenient location to connect with signal repeater.
step 4: Mount your indoor antenna with signal repeater
step5: Power up signal repeater device to check the signal inside, moving outdoor antenna until you get satisfied signal.
Note: Connect outdoor ANT (BTS) port with outdoor antenna, connect indoor ANT(MS) port with indoor antenna, outdoor antenna is mounted at a higher position. Both antennas should be 10 meters far away from each other at least.
Indoor and outdoor antenna must be separated by wall.
