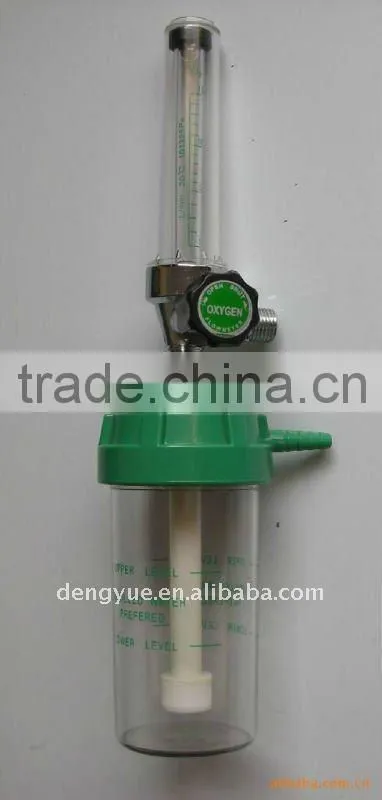

Help CenterHot-selling Suspension Type Medical Oxygen Regulator (DY-C4)
Related Products
-
Cylinder Valve With Pressure Reducing DeviceUS$ 9 - 15MOQ: 1000 Pieces -
Medical Oxygen RegulatorUS$ 13.5 - 14MOQ: 1000 Sets
-
Medical Oxygen CylinderUS$ 10 - 100MOQ: 200 Pieces
-
Medical Oxygen Regulator With FlowmeterNegotiableMOQ: 480 Pieces
-
China Gas Quick Connector ManufacturerUS$ 1.5 - 5MOQ: 600 Pieces
Specifications
Input pressure:15MpaOutput pressure:0.2-0.3Mpa
Safety Valve:0.35+_0.05Mpa
Range of Flow:1-10L/min

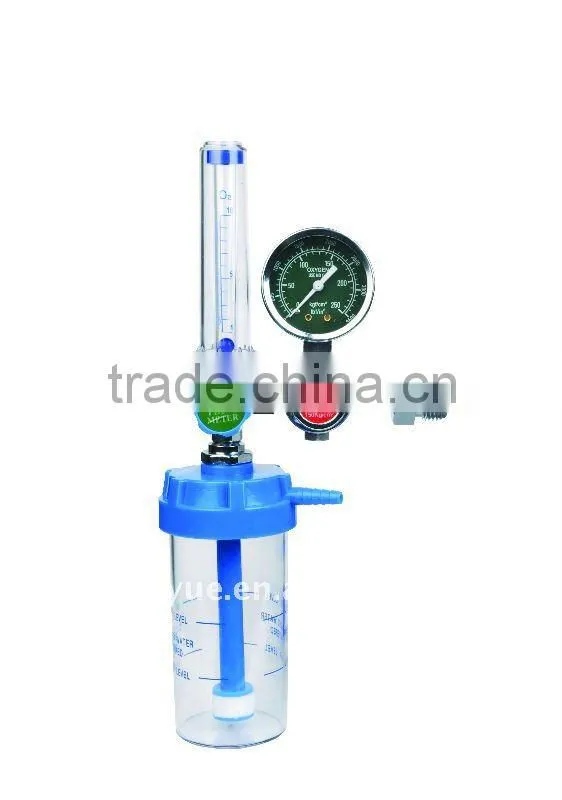

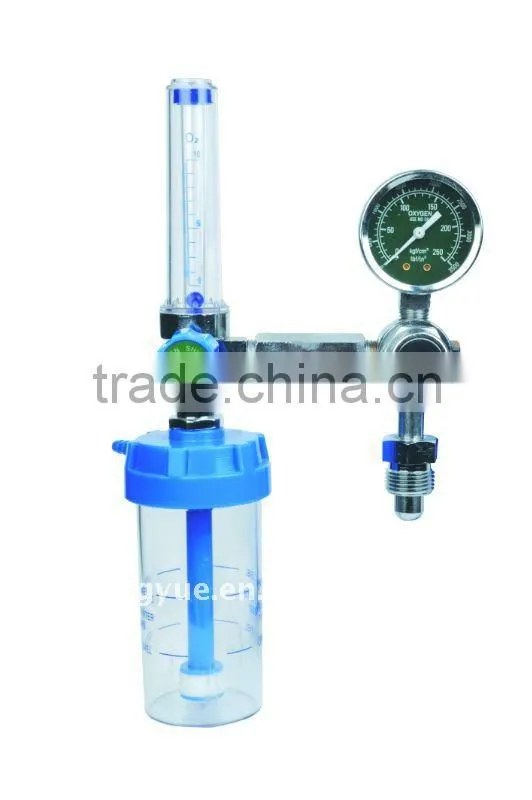

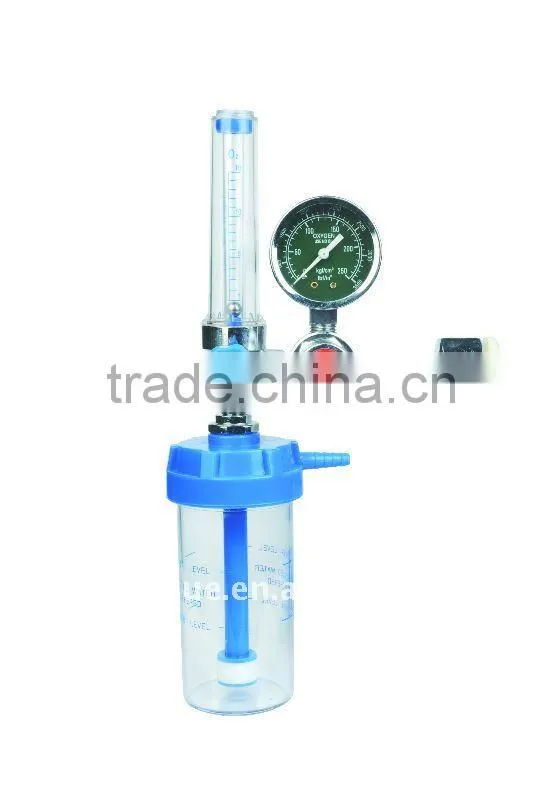

medical oxygen regulator
- medical oxygen regulator
- Oxygen flowmeter with humidifier
- Original facotry OEM
- ISO9001ISO13485
- Kind standards optional
Model |
DY-C4 |
Service Medium |
Oxygen |
Inlet Pressure |
15Mpa |
Adjusting Range |
<0.15MPa |
Nominal Flow Rate |
0~10L/min |
| Weight | 0.85kgs |
Outlet Connection |
Φ8.5 soft tube |
Inlet Connection |
G5/8" |
Discharge Pressure of The Safety Valve |
0.35+_0.05Mpa |
oxygen regulator with humidifier(range of application)
Give oxygen for first-aid or oxygen uptake for the people
How to use
1. Open the valve of oxygen cylinder after connect the screw nut of air intake closely
2. Connect the oxygen pipe to the oxygen outlet firmly
3. Demount the humidifying cup(anticlockwise rotation), put some distilled water in (purified water or plain boiled water can also take place), the water quantity should be between the bottom and top tick mark, then tighten up the bottle cap to the humidifying cup(clockwise rotation)
4. Rotate the flow regulating valve to the rate you need (anticlockwise to up, clockwise to down, till to close), then put it to nose to use.
5. Close the valve of oxygen cylinder firstly while not using, then close the flow regulating valve until the pointer of oxygen manometer return to zero.
