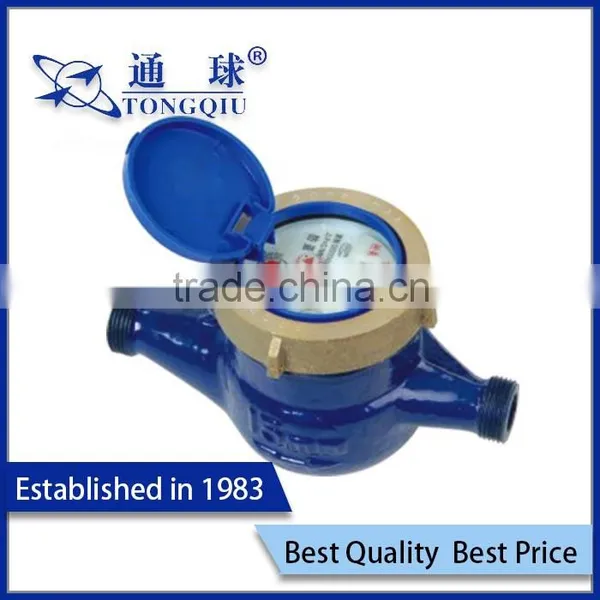

Help CenterRotary Vane ISO 4064 Blue Cast Water Meter Quality Choice
Related Products
-
LXSG-15~25 Multi Jet Dry Dial Nylon Plastic Water MeterUS$ 4 - 30MOQ: 1000 Pieces -
Volumetric Rotary Piston Class C Water Meter LXH-15E1~20E1US$ 1 - 50MOQ: 1000 Pieces
-
Rotary Vane Wheel Dry Dial Iron Water Meter LXSG--15E~50EUS$ 1 - 5MOQ: 1000 Pieces
-
Rotary Vane Wheel Hot Water MeterNegotiableMOQ: 500 Pieces
-
Multi Jet Dry Dial Plastic Nylon Water Meter LXSG-15S~40SUS$ 2 - 50MOQ: 500 Pieces
Each piece in one inner box(common or colorful depends on requirement).
DN15~DN20,10 pcs in one carton;
DN25~DN32,5 pcs in one carton;
DN40~DN50,3 pcs in one carton;
Shipping Port,Ningbo or Shanghai Port.
Features :
The mechanism of the register shall be selfhoused in the container of the corrosion resistant metal,with wet dial,straight reading,and rotation of the wheel be driven with magnet to the register,the case of water meter is made of cast copper and is beautifully shaped, Easy for reading, clearness and long service are its advantages.
Working Condition :
Water temperature: ≤40℃ pressure: ≤1Mpa
INDICATING ERROR:
At low zone is ±5% from minimum flow rate(qmin) to transitional flow rate(qt) exclusive boundary ;
At high zone is ±2% from transitional flow rate(qt) to overload flow rate(qs)
| Type | Meter size Dia DN (in.) | Class | qs Overload Flow | qs Nominal Flow | qs Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura |
| m3/h | 1/h | m3 | ||||||
| LXS-15 | 1/2" | A | 3 | 1.5 | 150 | 60 | 0.0001 | 9999 |
| B | 120 | 30 | ||||||
| LXS-20 | 3/4" | A | 5 | 2.5 | 250 | 100 | 0.0001 | 9999 |
| B | 200 | 50 | ||||||
| LXS-25 | 1" | A | 7 | 3.5 | 350 | 140 | 0.0001 | 9999 |
| B | 280 | 70 | ||||||
| LXS-32 | 11/4" | A | 12 | 6.0 | 600 | 240 | 0.0001 | 9999 |
| B | 480 | 120 | ||||||
| LXS-40 | 11/2" | A | 20 | 10 | 1000 | 400 | 0.001 | 99999 |
| B | 800 | 200 | ||||||
| LXS-50 | 2" | A | 30 | 15 | 4500 | 1200 | 0.001 | 99999 |
| B | 3000 | 450 | ||||||
| Type | Length | Width | Height | Connecting D(d) | Weight (Kg) |
| mm | |||||
| LXS-15 | 165 | 99 | 104 | G 3/4B(R1/2) | 1.35 |
| LXS-20 | 190 | 99 | 107 | G 1B(R3/4) | 1.45 |
| LXS-25 | 225 | 99 | 112 | G1 1/4B(R1) | 1.9 |
| LXS-32 | 230 | 104 | 112 | G1 1/2B(R11/4) | 1.9 |
| LXS-40 | 245 | 125 | 145 | G 2B(R11/2) | 4.4 |
| LXS-50 | 300/280 | 125 | 150 | G2 1/2B(R2) | 8.4/8.1 |
