Product name: Granite slab cutting machine
Feature:
Technical data | ||
Generally this machine is provided with fully automatic girder displacement positioning and microcomputer control, and is very high in automation level. The main parts and components of the machine (such as frequency converter, magnetic rule, laser reticule apparatus.) are all of imported good-quality materials, thus ensuring high precision, stable performance, good adaptability as well as high reliability of the whole machine. It is particularly applicable for cutting valuable and large stone plates. | ||
Blade diameter |
mm |
Φ350-Φ600 |
Blade vertical stroke |
mm |
220 |
Size of cutting table |
mm |
3200*2000 |
Worktable rotation angle(by hydraulic) |
° |
90° or 360° |
Worktable upturning angle |
° |
0-85 |
Main motor power |
kw |
11 |
Voltage/Frequency |
|
380V/50HZ |
Feeding motor |
kw |
2.2 |
Slicing motor |
kw |
1.1 |
Dimension |
mm |
5480*4700*2800 |
Weight |
kg |
6200 |

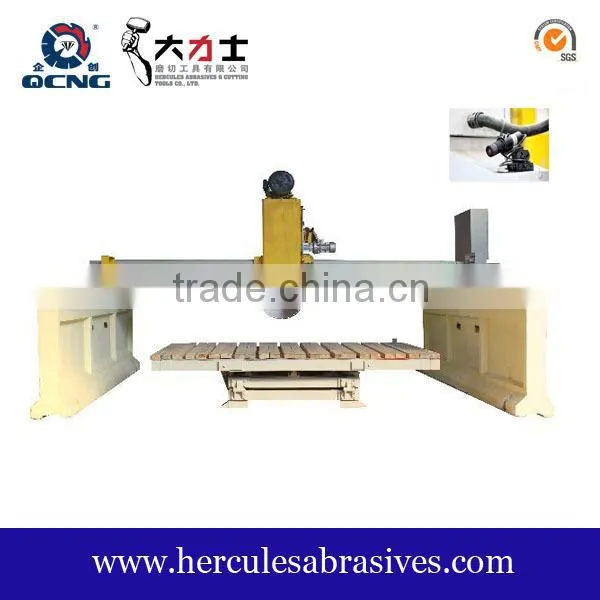

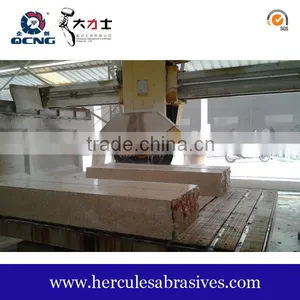

Granite slab cutting machines in bridge type images:

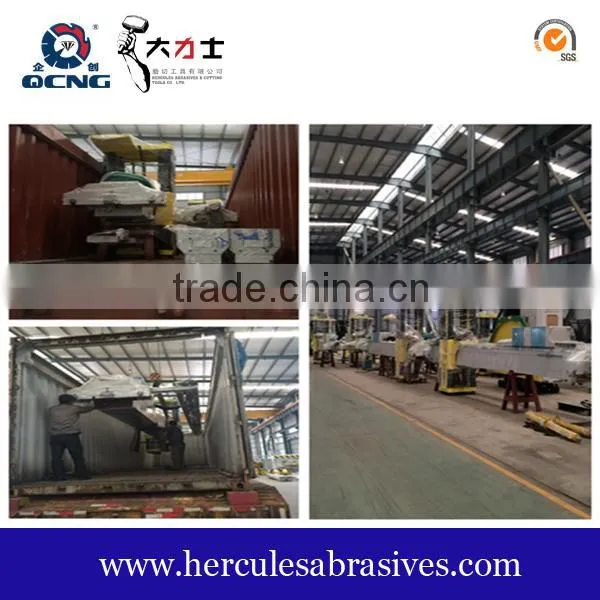

1. Packaging: nude packing, sent in whole set
2. Shipping: By sea in 1*20'GP
1. Engineer available to service machinery oversea.
2. Proposal for quarry development and plan, if necessary.
3. Top quality machine accessory are offer, such as motor, blades, segments.
4. Professional One-Stop Service for your production line.
- Stone machines include quarry exploiting, block cutting, slab polishing & grinding, tiles cutting, countertop processing, engraving etc. For example, Quarry Wire Saw, Double Blades Quarry Machine, Multi-blades Block cutting Machine, Multi-Heads Grinding Machine, Radiam Arm Grinding Machine, Laser Bridge type Edge cutting Machine, Manual Edge Cutting Machine, CNC Machine etc.
- Diamond tools product range from stone/ ceramic/ construction cutting, drilling, profiling to grinding. Such as Diamond Wire Saws, Diamond Blades and Segments, Diamond Polishing Pads, Diamond Fickert Abrasives, Frankurt Abrasives, Diamond Router Bit, Cup wheel etc.
