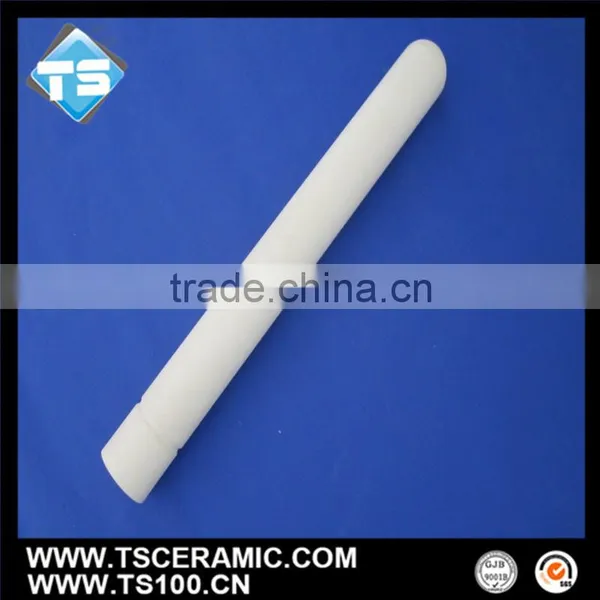

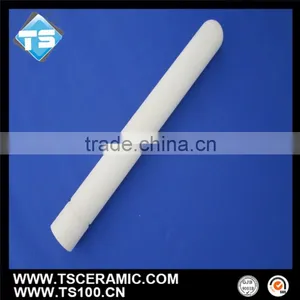

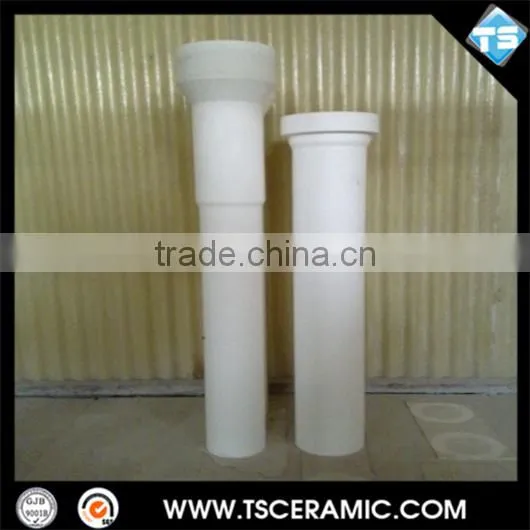

Aluminium Titanate Ceramic Riser Tube:
The low pressure casting lift tube is a key part of low pressure die casting machine. In die casting process, molten aluminum (700-900℃)is sent from riser tube to mold cavity every 3~5 minutes.
Compared with traditional steel lift tube, aluminum titanate becomes the optimum material for riser tubes due to its lower thermal expansion, good thermal shock resistance and nonstick aluminum.
Physical and Chemical Index:
Items |
Datas |
Bulk Density |
3.3-3.5g/cm³ |
Flexural Strength |
30-50Mpa |
Porosity |
<8% |
Thermal-expansion coefficient |
0.5-1.5*10-6℃ |
Heat Conductivity (800℃) |
0.86W/m.K |
Feature:
1,Excellent thermal shock resistance
2,No infiltration with the non-ferrous metal
3,Excellent wear resistance
4,Low thermal-expansion coefficient
5,Long service life
Popular Dimension:
Diameter |
Thickness |
Length |
Φ60,Φ80,Φ100 |
18mm |
<1,150mm |
We can manufacture the tubes based on your drawings.

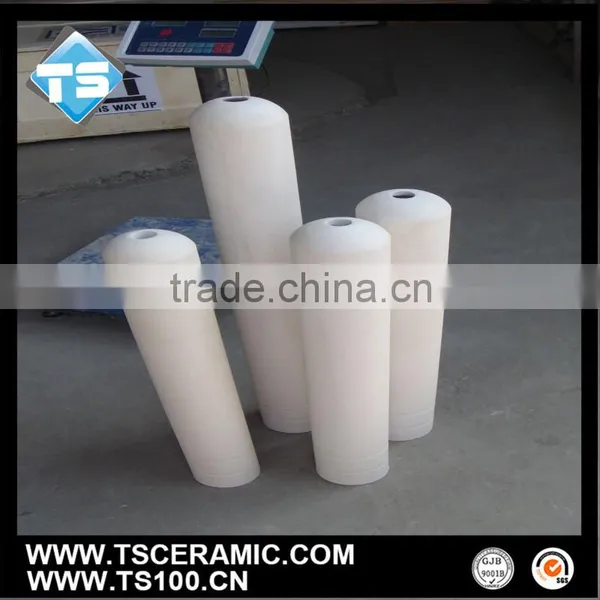

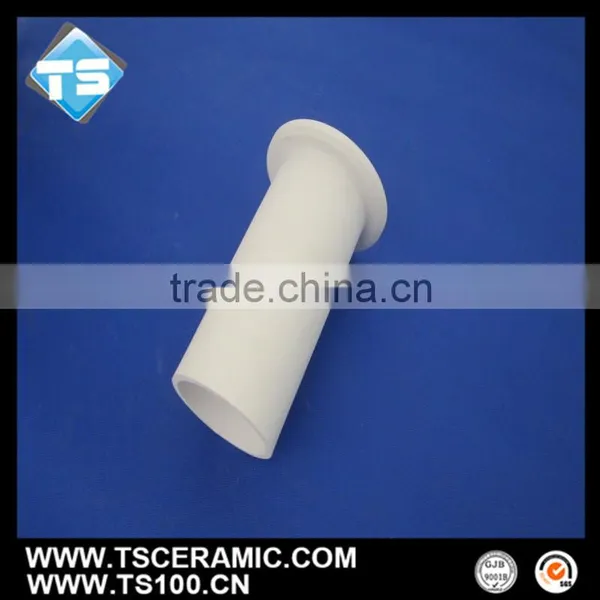

Products details:

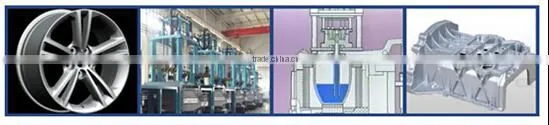

Application
Our riser tube is wided used in alumina low pressure die casting.
Related products of Zibo Taisheng:
Aluminium Titanate Sprue Bushing
Aluminium Titanate Auto Pour Ceramic Ladle
Relevant Website:
Logistics:
1, by air
2, by express
3, by sea
We are the most largest factory for silicon niride products, aluminum titanate products and alumina products in China, there’s more than 100 people and 8 production lines in our company.
Our products have been sold to all over the world.
Welcome to visit our factory!
1, How about your QC system?
We have ISO9001 certification.
2, What’s the MOQ?
1piece or 1set.
3, What’s the delivery time?
15~30days, it depends on your quantity.
4, Can you provide sample?
Yes!
5, Are you manufacturer or trading company?
We are manufacturer in Zibo city, China. Welcome to visit our factory!
