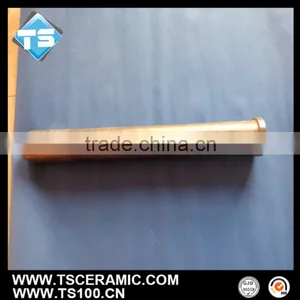

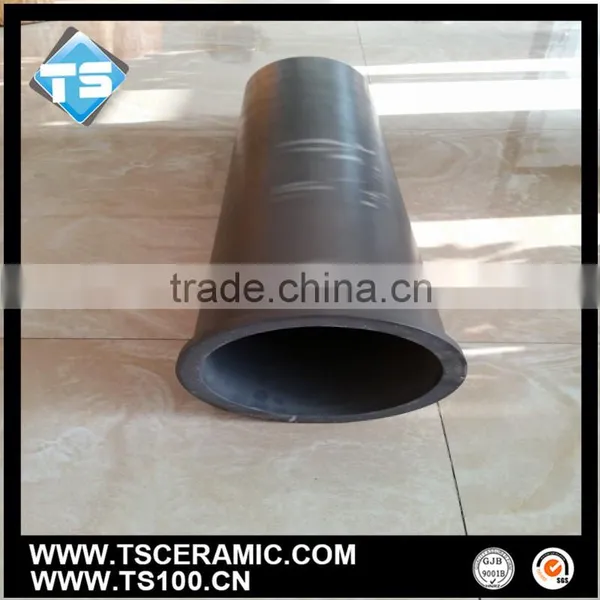

Silicon Nitride Heater tube
Product Description
Silicon Nitride heater protection tube is used in molten aluminum, high oxidation resistance, high-speed and efficient dispersal and removal of hydrogen and other unwanted particles, long service time.
Physical and chemical index
Types |
Gas Si3N4 |
Density |
>3.2g/cm3 |
Si3N4 content |
>92% |
Flexural strength |
>700Mpa |
Compressive strength |
>1500Mpa |
Thermal conductivity(W/mk) |
16-22 |
Porosity |
0 |
Thermal expansion coeff.(RT-1000℃) |
3.2 |
|
Max temperature In air |
1400℃ |
Hardness(HRA) |
>92 |
Features
1, Moulding: Cold isostatic pressing(CIP)
2, Sintering: GPSN
3, High strength &good compactness
4, Low thermal expansion coefficient
5, Excellent thermal shock resistance
6, No wetting by molten aluminum and other non-ferrous molten metal
7, Good corrosion resistance
Common size:
Inner diameter: φ100~200mm.
Length: 800~1200mm.
We can also prodcue other sizes according to your drawing.
Products details:
Application
Aluminum foundry.
Relevant Recommendation
Silicon Nitride Thermocouple Protection Tube
Silicon Nitride Riser Tube
Silicon Nitride Heater Sheath
Relevant Website:
Packing details:
Logistics:
1, by air
2, by express
3, by sea
We have professional logistics team and shipping agent to ensure diliver the goods in time.
Company information:
We are the most largest factory for silicon niride products, aluminum titanate products and alumina products in China, there’s more than 100 people and 8 production lines in our company.
Our products have been sold to all over the world.
Welcome to visit our factory!
FAQ:
1, how about your QC system?
We have ISO9001 certification.
2, what’s the MOQ?
1piece or 1set.
3, what’s the delivery time?
15~30days, it depends on your quantity.
4, can you provide sample?
Yes!
5, are you manufacturer or trading company?
We are manufacturer in Zibo city, China. Welcome to visit our factory!
