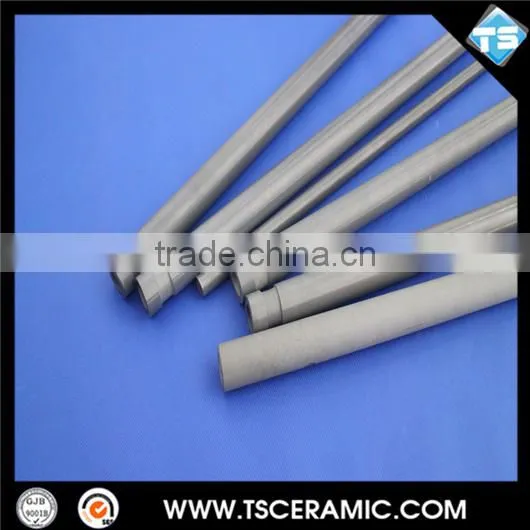

Silicon Nitride Thermocouple Protection Tube
Thermocouple’s long-time stability and service life will be up to outside protection tube. Thermocouple shielded by silicon nitride thermocouple sheath will quickly react to temperature due to its good thermal conductivity and thinner wall thickness. Silicon nitride thermocouple protection tube is for continuous temperature measurement and protect thermocouple without erosion.
Physical and chemical index
Types |
GPSN |
RSSN |
Density |
>3.2g/cm3 |
>2.4g/cm3 |
Si3N4 content |
>92% |
>92% |
Flexural strength |
>600Mpa |
>200Mpa |
Compressive strength |
>1500Mpa |
|
Thermal conductivity(W/mk) |
>22 |
>14 |
Porosity |
0 |
<15% |
Thermal expansion coeff.(RT-1000℃) |
3.2 |
2.8 |
|
Max temperature In air |
1400℃ |
1400℃ |
Hardness(HRA) |
>92 |
>85 |
Features
1, Moulding: Cold isostatic pressing(CIP)
2, Sintering: GPSN/RSSN
3, High strength and good compactness
4, Low thermal expansion coefficient
5, Excellent thermal shock resistance
6, No wetting by molten aluminum and non-ferrous metal
7, Good corrosion resistance
Recommended Sizes
OD(mm) |
ID(mm) |
Length(mm) |
16 |
8 |
300-600 |
22 |
12 |
300-800 |
28 |
16 |
300-1200 |
30 |
18 |
300-1000 |
45 |
25 |
300-1000 |
We can also prodcue other sizes according to your drawing.

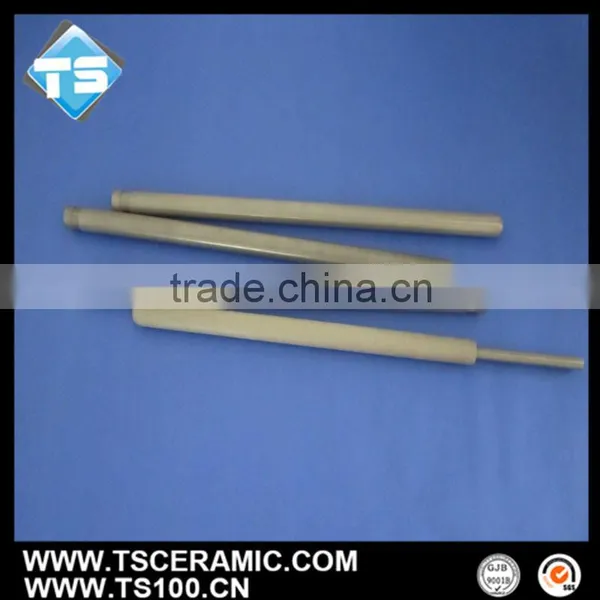

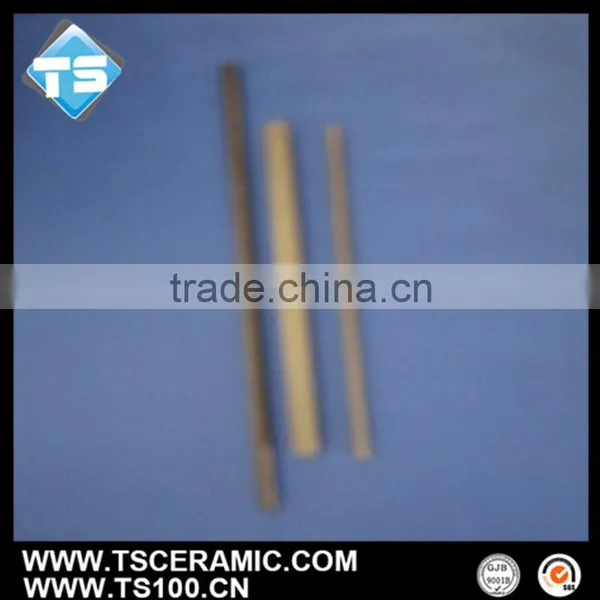

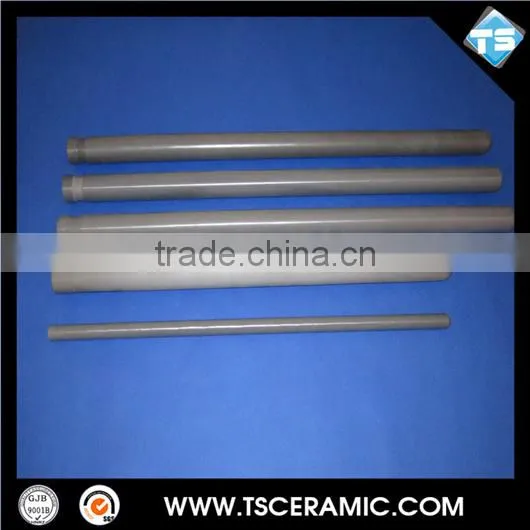

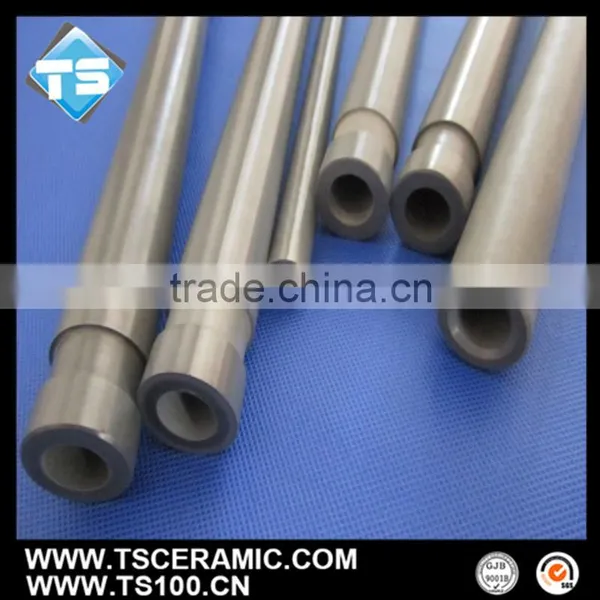

Products details:
Application
Relevant Recommendation
Silicon Nitride Riser Tube
Silicon Nitride Heater Sheath
Silicon Nitride Degassing Rotor
Relevant Website:
Logistics:
1, by air
2, by express
3, by sea
We are the most largest factory for silicon niride products, aluminum titanate products and alumina products in China, there’s more than 100 people and 8 production lines in our company.
Our products have been sold to all over the world.
Welcome to visit our factory!
1, How about your QC system?
We have ISO9001 certification.
2, What’s the MOQ?
1piece or 1set.
3, What’s the delivery time?
15~30days, it depends on your quantity.
4, Can you provide sample?
Yes!
5, Are you manufacturer or trading company?
We are manufacturer in Zibo city, China. Welcome to visit our factory!
