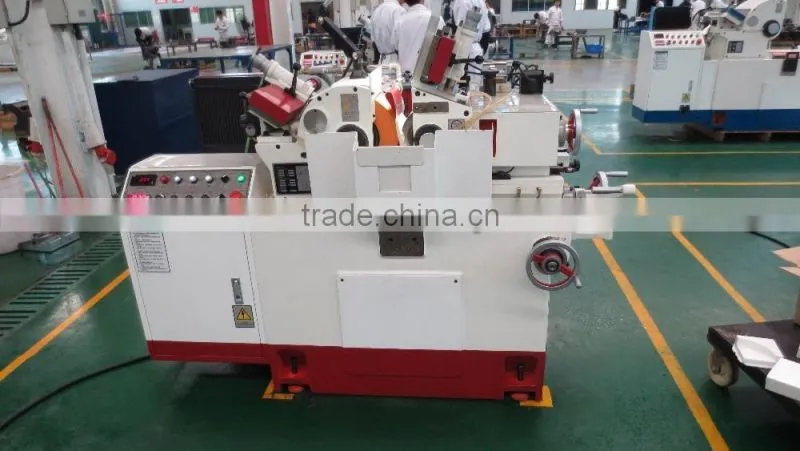

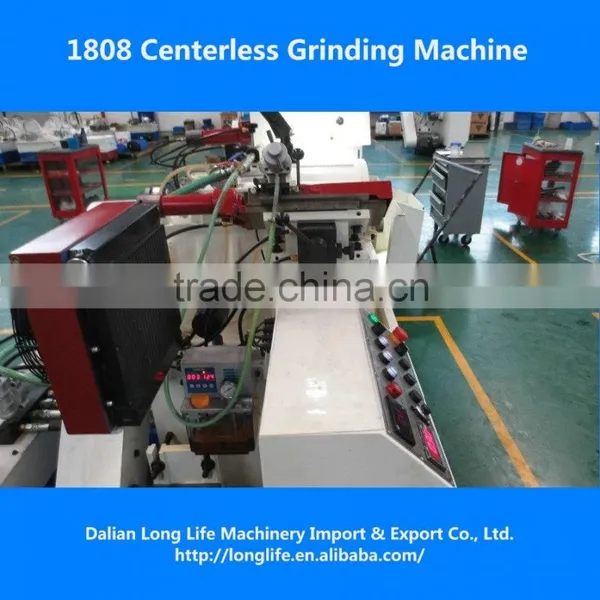

1808 high precision centerless grinding machine
1. Servomotor driving;
2. High precision;
3. CE Standard and CE Certificate;
Roundness: ≤0.001mm;
Straightness: ≤0.002mm
Roughness: ≤0.2Ra
Size accuracy: ≤0.002mm
Specifications |
Unit |
Parameter |
Grinding diameter |
mm |
Φ1 ~ Φ50 |
Special work rest (dia.) |
mm |
Φ40 ~ Φ120 |
Grinding wheel size |
mm |
Φ455×205×Φ228.6 |
Regulating wheel size |
mm |
Φ255×205×Φ111.2 |
Grinding wheel speed (speed less) |
rpm |
18~1520 |
Regulating wheel speed |
rpm |
0~260 |
Grinding wheel motor |
|
15HP(11kW)AC380V/50HZ |
Regulating wheel motor |
|
4HP(3kW)AC380V/50HZ |
Hydraulic pump motor |
|
1HP(0.75kW)AC380V/50HZ |
Coolant pump motor |
|
1/4HP(180W)AC380V/50HZ |
Regulating wheel feed on hand wheel |
mm |
4 (Rev) 0.05 (Gra) |
Regulating micro feed on hand wheel |
mm |
0.1 (Rev) 0.001 (Gra) |
Table feed on hand wheel |
mm |
9 (Rev) 0.10 (Gra) |
Table micro feed on hand wheel |
mm |
0.2 (Rev) 0.001 (Gra) |
Dressing hand wheel |
mm |
2 (Rev) 0.01 (Gra) |
Regulating wheel tilt angle |
|
+6° ~ -5° |
Regulating wheel swivel angle |
|
±6° |
Floor space (L×W×H) no more than |
mm |
2350×1960×1560 |
Package dimension (L×W×H) |
mm |
2400×2000×1800 |
Net weight |
kgs |
2850 |
Working accuracy |
|
|
Roundness |
mm |
≤0.001 |
Straightness |
mm |
≤0.002 |
Roughness |
|
≤0.2Ra |
Size accuracy |
mm |
≤0.002 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
1. 30% down payment, 70% by T/T before shipment;
2. 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
1. 1 Set;
2. ≥2 sets, there will be much discounts.
Warranty:
1. Normally, 12 months for parts as of delivery of the machines;
Shipment:
1. For machine itself, by sea or train(inland countries).
2. For documents, by international express. eg DHL, TNT or EMS.
