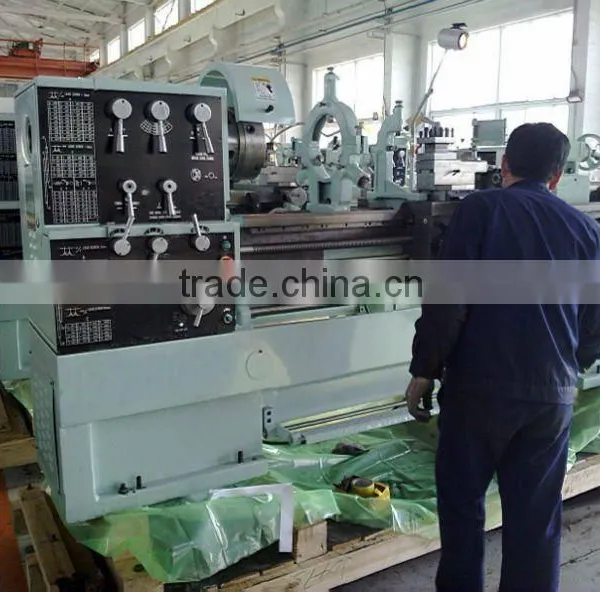

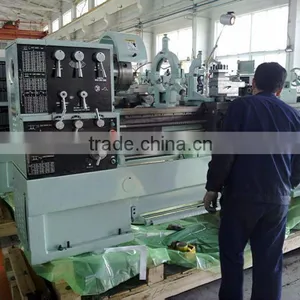

CDL Series 1000mm Bench Lathe

Name: CDL Series 1000mm Bench Lathe
Brand: DALIAN
SKU: 102718905

US$ 4,050 - 6,720 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 510mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number CDL6236 CDL6241 CDL6251

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 3~5.5kW

After-sales Service Provided Engineers available to service machinery overseas

CDL Manual Lathe Parameter

Main Features:

When CDL6236/CDL6241/CDL6246 spindle head is C6:Spindle holeΦ48 mm

When CDL6236/CDL6241/CDL6246 spindle head is D6:Spindle holeΦ52 mm

When CDL6251 spindle head is C6:Spindle holeΦ48 mm

When CDL6251 spindle head is D8:Spindle holeΦ82 mm

Guide rail width:300mm

Guide rail hardness:HRC50, Depth1.5mm

Largest load capacity between two core clamper: 300kg

Standard machine is left-handed wheel slip board boxes, could provide right-hand wheel

Order notice must be specified: condition of installed taper imitated shape device

Machine tool bed box are non-clutch, three boxes are all self inside lubricating

CDL6236 / CDL6241 split leg Structure, CDL6251 integrated base structure

CE mark machines are not provide

Specifications	Unit	CDL6236	CDL6241	CDL6251
Max swing over bed	mm	360	410	510
Max swing over carriage	mm	180	230	320
Center distance	mm	1000	1000	1000
Max swing in gap	mm	590	640	735
Width of bed	mm	300	300	300
Spindle nose		C6/D6	C6/D6	D8
Spindle bore	mm	48	52	82
Taper of spindle bore		M6	M6	1:20(F 90)
Spindle speeds	rpm	32~2000 (12 speed)	32~2000 (12 speed)	16~1600 (12 speed)
Range of inch threads	TPI	2~56	2~56	2~56
Range of metric threads	mm	0.5~14	0.5~14	0.5~14
Range of module threads	mm	0.5~14	0.5~14	0.5~14
Range of Diametrical pitch thread	D.P	2~56	2~56	2~56
Longitudinal feed	mm/rev	0.06~0.82 (0.002"~0.032"/r)	0.06~0.82 (0.002"~0.032"/r)	0.06~0.82 (0.002"~0.032"/r)
Cross feed	mm/rev	0.017~0.242 (0.007"-0.0095"/r)	0.017~0.242 (0.007"-0.0095"/r)	0.017~0.242 (0.007"~0.0095"/r)
Lead screw diameter	mm	36	36	36
Pitch of lead screw	mm	6	6	6
Taper of tailstock quill		M4	M4	M4
Travel of tailstock quill	mm	150	150	150
Diameter of tailstock quill	mm	60	60	60
Power of main motor	kW	3/4.5 (4/6HP)	3/4.5 (4/6HP)	5.5
Power of coolant motor	W	90(0.125HP)	90(0.125HP)	90(0.125HP)
Net weight	kg	1353	1390	2040
Gross weight	kg	1553	1585	2585
WOODEN CASES STEEL PALLET (L×W×H)	cm	248×109×200 230×110×178	248×109×200 230×110×178	298×109×200 258×110×178
