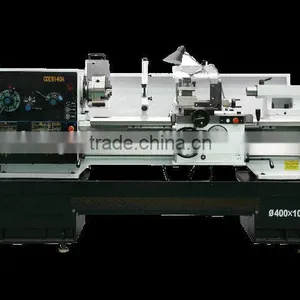

CDE6240x1500 Manual Horizontal Turning Lathe Machine

Name: CDE6240x1500 Manual Horizontal Turning Lathe Machine
Brand: DALIAN
SKU: 102719041

US$ 4,500 - 32,230 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 400mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number CDE6240Ax1500 horizontal turning lathe

Voltage 220V,380V,415V,440V,480V;

Power(W) 7.5kW;

Dimension(L*W*H) 3490x1150x1900mm

Weight 2170kgs

Certification ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

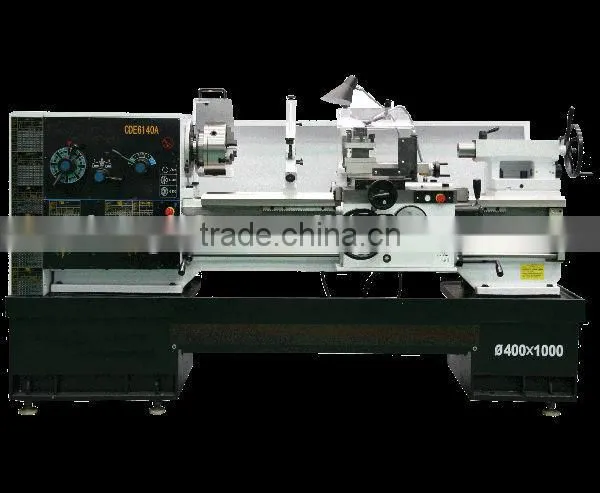

CDE6240x1500 horizontal turning lathe machine

Main Features:

Spindle nose: C6-type (No D-type spindle nose)
Chucktype: Direct-coupled;
New improved direct-coupled 3-jaw, 4-jaw chuck;
Guide rail width: 394mm;
Guide rail hardness: HRC50,Depth 1.5mm
Max load capacity between two centers: 500kg;
Provide left and right wheel,
Apron with rapid shift handle in longitudinal and cross direction;
Special indication is required iftailstock sleeve is with a scale;
Mechanical clutch is used for such lathe. No foot brake, No electrical cabinet;
The precision can reach up to IT7 level; the surface roughness can be up to 1.6 grade;

Main Usage

It can machine inner circle, outer circle, and end and head surface, taper surface of Steel, cast iron, non-metal material.
Its Gap can process the deformation parts.
Function is including the drilling and reaming.
Metric, inch, diametrical pitch, module thread;

Main Technical Data

Specifications	Unit	Parameter
Max. swing over bed	mm	Φ400
Max. swing over carriage	mm	Φ220
Max. length of work piece	mm	1500
Max. swing over gap	mm	Φ700
Width of guide way		394
Dia. of spindle bore	mm	Φ52
Taper of center sleeve		Morse No.6
Spindle speed	rpm	11~1400/22
Longitudinal feed	mm/rev	0.035~2.842
Cross feed	mm/rev	0.009~0.804
Metric thread		0.5~240(66)
Whitemouth thread	tpi	80~1/4(49)
Module thread	mm	0.25~120(57)
Diametrical pitch thread	mm	160~7~16DP(50)
Section of tool shank	mm	25×25
Travel of top slide	mm	150
Max. travel of cross slide	mm	348
Pitch of longitudinal lead screw	mm	12
Travel of tailstock center sleeve	mm	150
Diameter of tailstock center sleeve	mm	Φ75
Taper of tailstock center sleeve	Morse	No.5
Main motor power	kW	7.5(50Hz)/5.5 (60Hz)
Wooden case	mm	3490x1150x1900
Gross/net weight	kg	2905/2170
