Large Spindle Bore 130mm Universal Horizontal Lathe With GAP Hot-sale CW6280E

Name: Large Spindle Bore 130mm Universal Horizontal Lathe With GAP Hot-sale CW6280E
Brand: DALIAN
SKU: 102719177

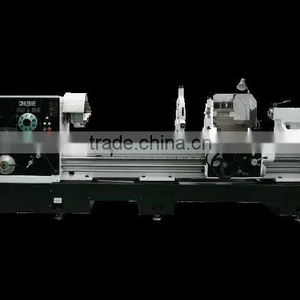

Large Spindle Bore 130mm Universal Horizontal Lathe With GAP Hot-sale CW6280E thumbnail-1

Large Spindle Bore 130mm Universal Horizontal Lathe With GAP Hot-sale CW6280E thumbnail-2

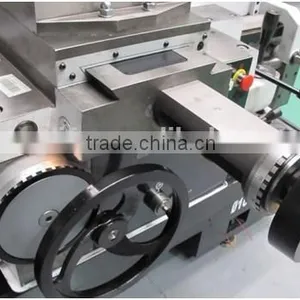

Large Spindle Bore 130mm Universal Horizontal Lathe With GAP Hot-sale CW6280E thumbnail-3

Large Spindle Bore 130mm Universal Horizontal Lathe With GAP Hot-sale CW6280E photo-1

Large Spindle Bore 130mm Universal Horizontal Lathe With GAP Hot-sale CW6280E photo-2

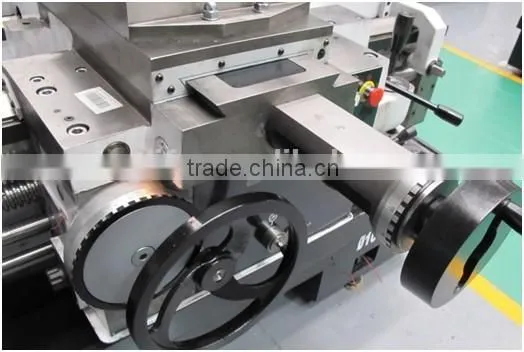

Large Spindle Bore 130mm Universal Horizontal Lathe With GAP Hot-sale CW6280E photo-3

US$ 14,500 - 32,230 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 320~1000mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number CW6263E CW6280E CW62100E

Voltage 220V,380V,415V,440V,480V;

Power(W) 11/15kW;

Certification ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

Horizontal GAP Lathe Technical Data

(For detailed information, to: export(at)longlife-machinery(dot)com)

It can machine inner circle, outer circle, and end & head surface, taper surface. Gap lathe can process the deformation parts. Function includes the drilling and reaming. Metric, inch, diametrical pitch, module thread.The bed is made of high-grade cast iron. The bed is undergoing surface quenching, the hardness can be HRC50.The noise can be under 83(A).

Specifications	Unit	CW6263E	CW6280E	CW62100E
Max. swing over bed	mm	Φ630	Φ800	Φ1000
Max. swing over carriage	mm	Φ350	Φ520	Φ720
Center distance	mm	750 1000 1500 2000 3000 4000 5000 6000	750 1000 1500 2000 3000 4000 5000 6000	750 1000 1500 2000 3000 4000 5000 6000
Width of gap	mm	320	320	320
Swing over gap	mm	Φ800	Φ1000	Φ1230
Width of guide way	mm	550	550	550
Spindle bore diameter	mm	Φ105	Φ105	Φ105
spindle nose		C11/D11	C11/D11	C11/D11
Spindle speed	rpm	(18 speeds) 7.5~1000	(18 speeds) 7.5~1000	(18 speeds) 7.5~1000
Longitudinal feed	mm/r	(64) 0.1~24.3	(64) 0.1~24.3	(64) 0.1~24.3
Cross feed	mm/r	(64) 0.05~12.15	(64) 0.05~12.15	(64) 0.05~12.15
Rapid traverse speed	m/min	3.8	3.8	3.8
Metric thread	mm	(39)1~240	(39)1~240	(39)1~240
Inch thread	TPI	(26) 14~1	(26) 14~1	(26) 14~1
Module thread	mm	(53) 0.5~120	(53) 0.5~120	(53) 0.5~120
Diametrical pitch thread		(24) 28~1	(24) 28~1	(24) 28~1
Max. travel of cross slide	mm	445	493	493
Travel of top slide	mm	200	200	200
Main motor power	kW	11	11	11
Rapid traverse motor power	kW	1.1	1.1	1.1
Coolant pump motor power	kW	0.09	0.09	0.09
Wooden box/Pallet packing
Gross/Net weight
