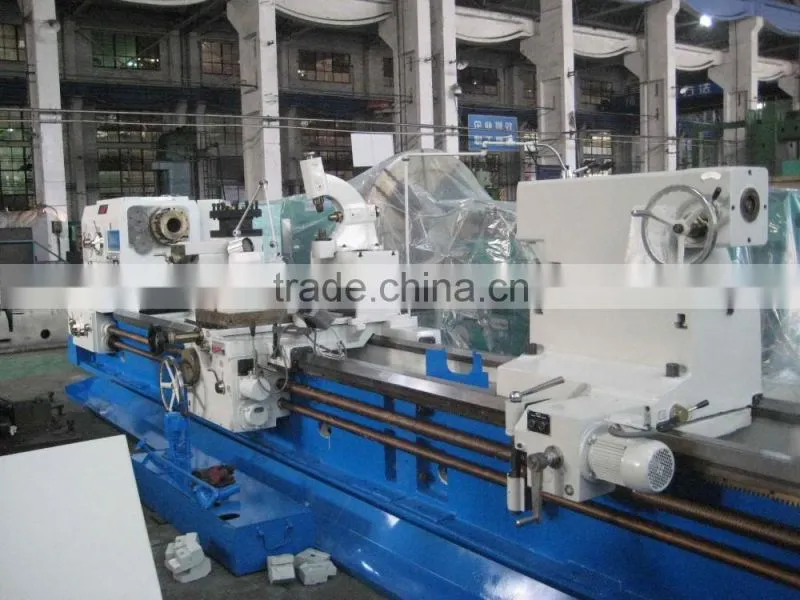

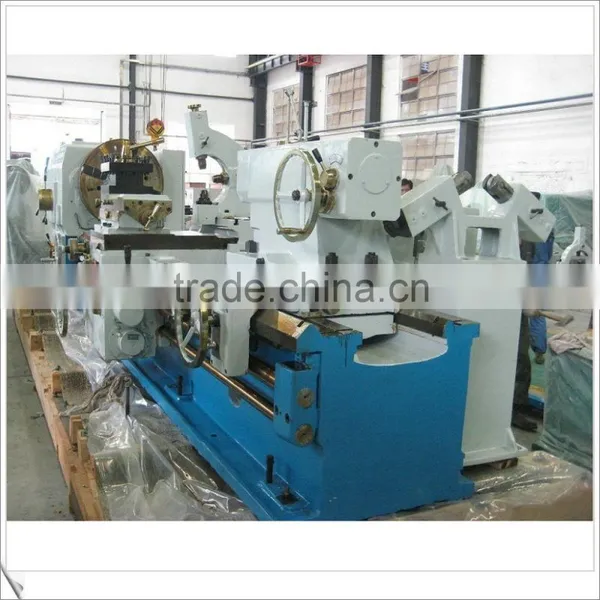

CK6663x6000 cnc oil pipe threading lathe machine
Such heavy duty lathe machines have following features:
l All main components, bed, headstock, saddle, plinth, etc., are high quality solid castings;
l Low friction turcite-B coating on mating surfaces between saddle and guide ways;
l Precision ballscrews and highly rigid precision bearings ensure accurate positioning and heavy cutting capability;
l Centralized system provides forced automatic lubrication onto ballscrews and all mating surfaces;
l Operator adjustable control panel enables convenient tool setting; FANUC, SIEMENS, FAGOR, etc control systems can be supplied. E-handwheel function is also available.
Specifications |
Unit |
Parameter |
Spindle hole through |
mm |
630 |
Dia. Of bar pass spindle hole through |
mm |
620 |
Least clamped diameter of chuck |
mm |
500 |
Max. Swing over bed |
mm |
1400 |
Max. Swing over carriage |
mm |
1050 |
Distance between two centers |
mm |
6000 |
Width of bed |
mm |
970 |
Range of spindle speed, 2 steps |
rpm. |
5 to 250 |
Feeding speeds of x-axis & z-axis |
|
1 to 2000 |
Range of threads |
mm |
0.1 to 200 |
Servo motor for x-axis & z-axis |
Nm |
27 |
Max. Travel of cross slid |
mm |
880 |
Rapid traverse in x & z-axis |
mm/min |
2000, 4000 |
Dia. Of tailstock sleeve |
mm |
160 |
Travel of tailstock sleeve |
mm |
300 |
Taper of tailstock sleeve |
mm |
metric No. 80 |
Main motor power with inverter |
mm |
Ac 22 |
Net overall dimension of the machine |
mm |
8150×2500×1850 |
Packing dimension of the machine |
mm |
1) 9600×2670×2500 2) 1600×630×950 3) 1560×980×950 4) 1540×1010×1980 |
N. W. / g. W. of machine |
kgs |
18500 / 1)21500 2) 300 3) 500 4) 450 |
Name |
Size |
Note |
Manual four jaws chuck |
diameter of 1250 mm |
2 sets |
Work light |
|
1 set |
Coolant system |
|
1 set |
Foundation bolts |
|
1 set |
Dead center |
|
1 set |
Special tools, |
|
1 set |
Oil gun |
|
1 piece |
Spanners |
|
1 set |
Full set of Documents in English |
|
1 set |
|
|
|
kinds of colors for your choice/can be customized
