Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > Hydraulic High Quality Elderly Wheelchair Lift Platform for Home Quality Choice

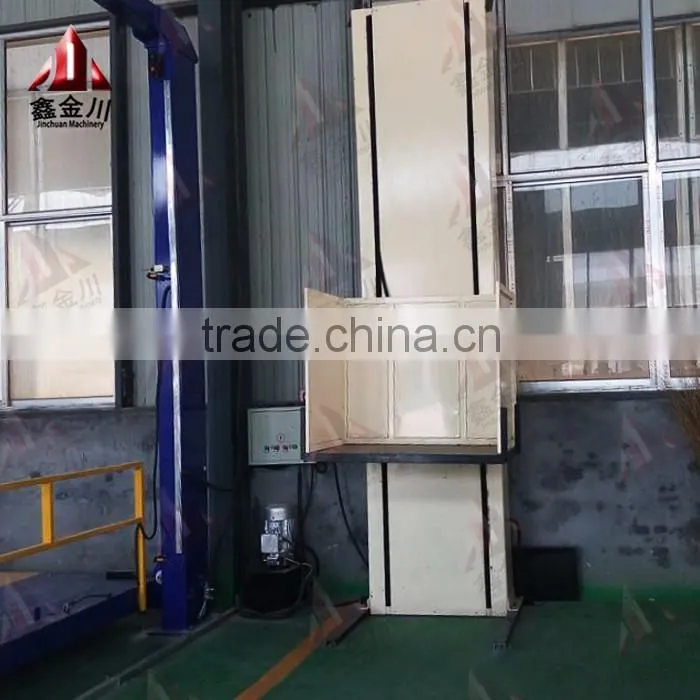

Hydraulic High Quality Elderly Wheelchair Lift Platform for Home Quality Choice
US$ 1,000 - 3,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
jinchuan
Model Number:
CJR-3
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Barrier Free Lift Platform for the DisabledUS$ 1,000 - 10,000MOQ: 1 Set -
350kg 1.5m,2m,2.5m,3m,3.5m,4m,4.5m,5m Hydraulic Lifts for Handicapped PeopleUS$ 2,000 - 3,000MOQ: 1 Set
-
350kg 1.5m,2m,2.5m,3m,3.5m,4m,4.5m,5m Hydraulic Handicapped Electric Wheelchair LiftUS$ 2,000 - 3,000MOQ: 1 Set
-
50-350KG Hydraulic Wheelchair Elevator for Disabled/wheelchair Platform Small Home LiftUS$ 500 - 7,000MOQ: 1 Set
-
4m Hydraulic Vertical Wheelchair Lifts /Hydraulic Wheelchair Lift for DisabledUS$ 1,000 - 10,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
jinchuan
Model Number
CJR-3
Lift Mechanism
Lift Chain
Lift Drive / Actuation
Hydraulic
Power
2.2kw
Rated Loading Capacity
100-350kg
Min. Lifting Height
60mm
Max. Lifting Height
3000mm
Table Size
1200*1200mm
Overall Dimensions
1200*1200
Weight
850kg
Certification
CE iSO
Warranty
1YR
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
The wheelchair lift consists of a platform with high side walls, an upper landing gate, a platform mounted gate, a drive system and easy-to-use operating controls. Suitable for indoor and outdoor use.
|
Platform size(platform) |
1200mm(L)* 1200mm(W) |
|
|
Max Platform Height |
3000mm |
|
|
Speed |
60mm/s |
|
|
Load capacity |
150KG~350KG |
|
|
Operate voltage |
24V |
|
|
Power Output |
2.2KW |
|
|
Power Input |
220V/50HZ (or customized for local power supply) |
|
|
Drive System |
Hydraulic |
|
|
Control Mode |
Inching Switch or Automatic |
|
|
Drive Control |
Self-resetting system |
|
|
Overload |
Protection Over current relay |
|
|
Material of Platform |
Checkered slip-proof aluminum alloy |
|
|
Painting |
Plastic electrostatic spraying |
|
|
Working Condition |
Both indoors and outdoors |
|
|
Working temperature |
From -10°~60°C |
|
|
Installation |
Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) |
|
|
Control Device |
Calling box (installed on the wall nearby) and remote controller(Extra optional) |
|
|
Emergency Stop |
The lifting and lowering process can be stopped immediately by pressing the emergency button. |
|
|
Safety device |
Safety Interlock |
Lock the platform when it is out of control |
|
|
Emergency lowering |
The platform can be lowered by opening hydraulic valve manually or rolling screw rod. |
Local power is available at the working sites (220V etc)
1. Directly installed into the ground without pits and easy to operate.
2. The hydraulic system give passengers smooth and comfortable transportation.
3. Hydraulic overload protective organization.
4. Pump equipped single control solenoid valves to prevent the platform dropping if power failure.You can
open the manual dropped valve to lower the platform to the home position.
5. Operating voltage 24V safety to mankind.
Service:
We also supply spare parts and supply technical supporting all the time.(Spare parts: control button, travel switch, Oil cylinder seals and the wrench etc.)
1. Directly installed into the ground without pits and easy to operate.
2. The hydraulic system give passengers smooth and comfortable transportation.
3. Hydraulic overload protective organization.
4. Pump equipped single control solenoid valves to prevent the platform dropping if power failure.You can
open the manual dropped valve to lower the platform to the home position.
5. Operating voltage 24V safety to mankind.
Service:
We also supply spare parts and supply technical supporting all the time.(Spare parts: control button, travel switch, Oil cylinder seals and the wrench etc.)
