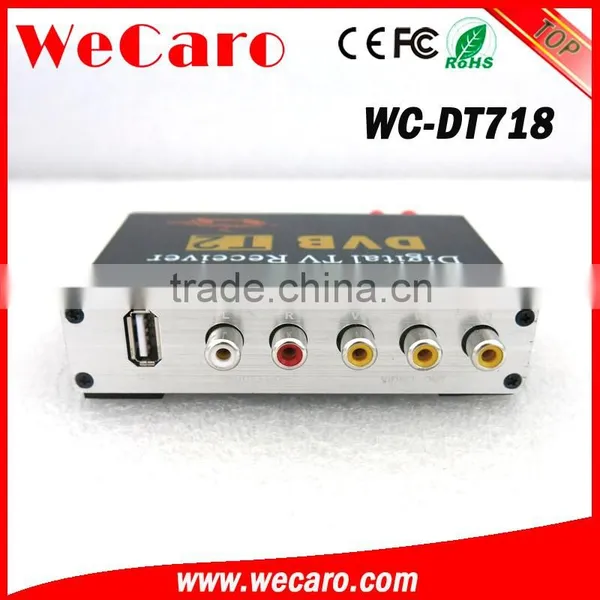

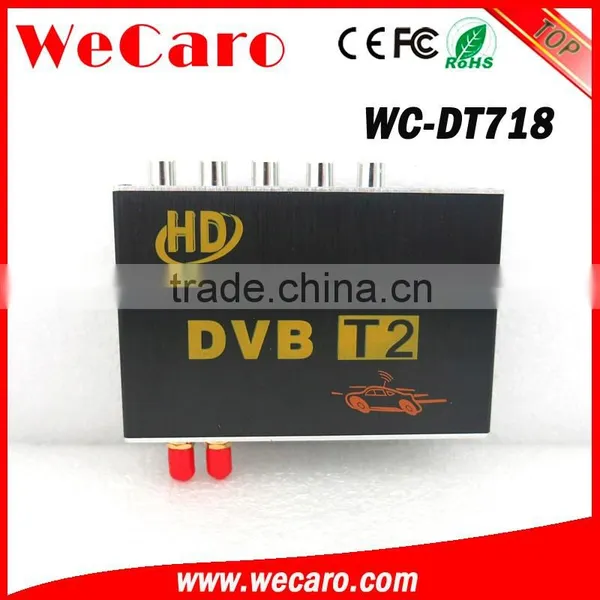

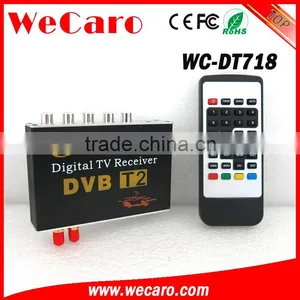

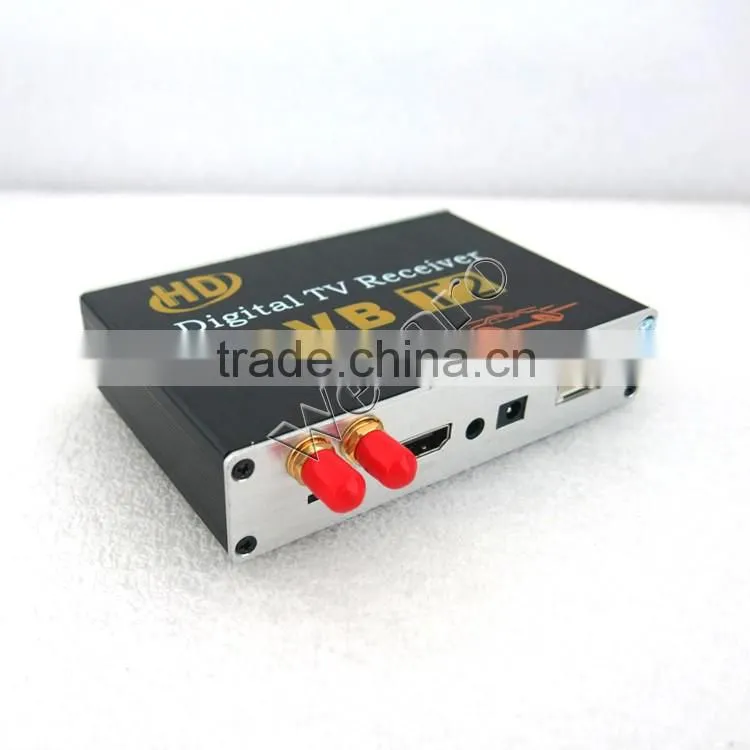

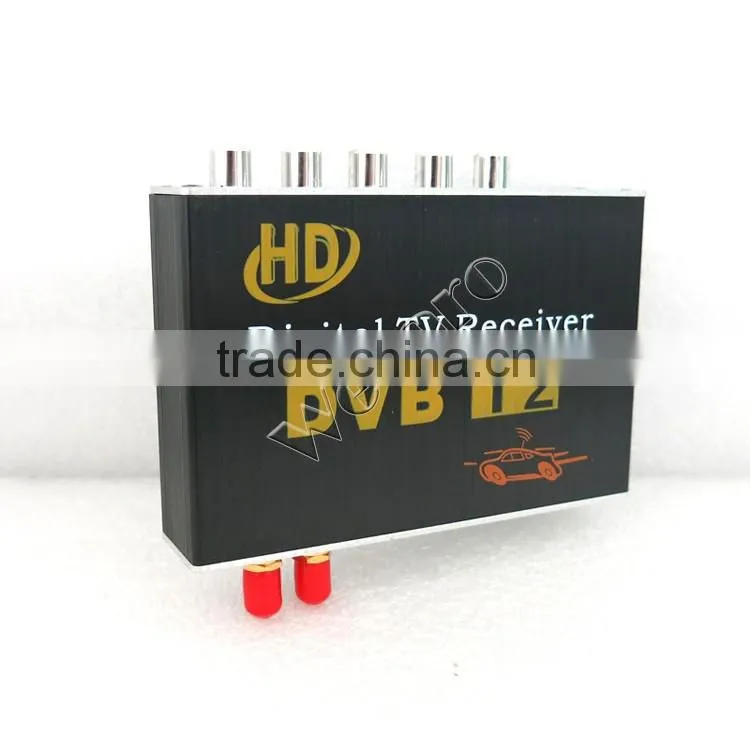

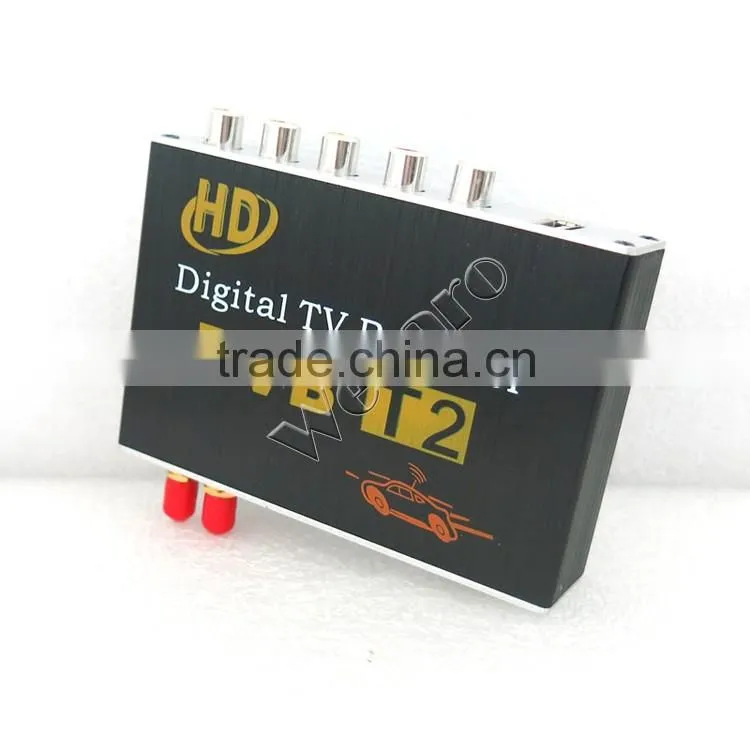

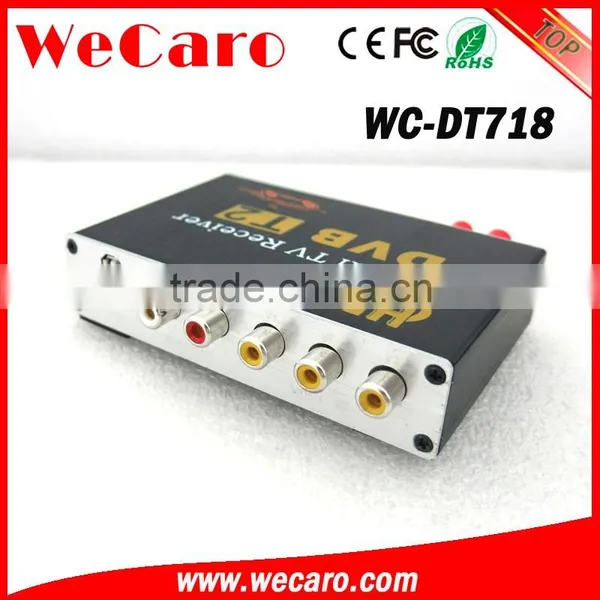

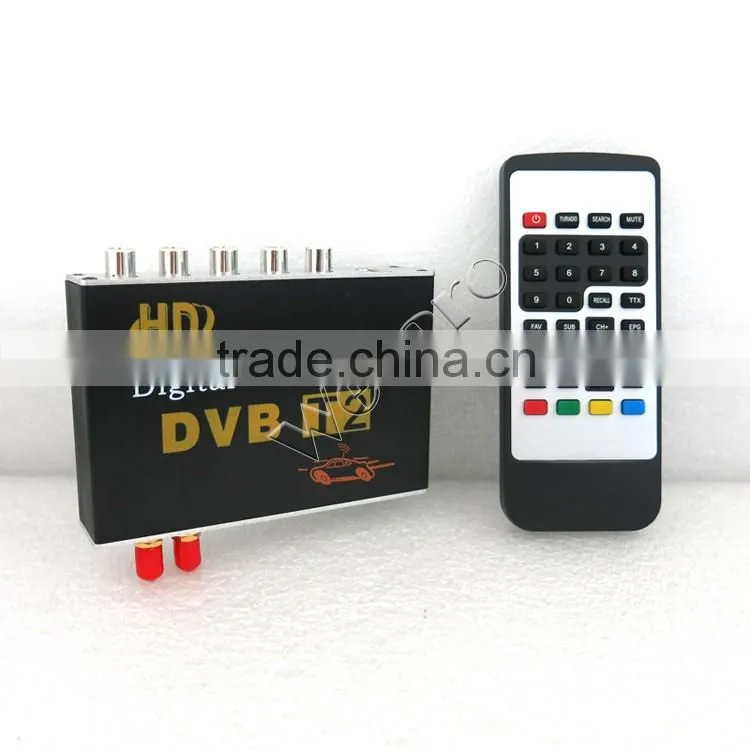

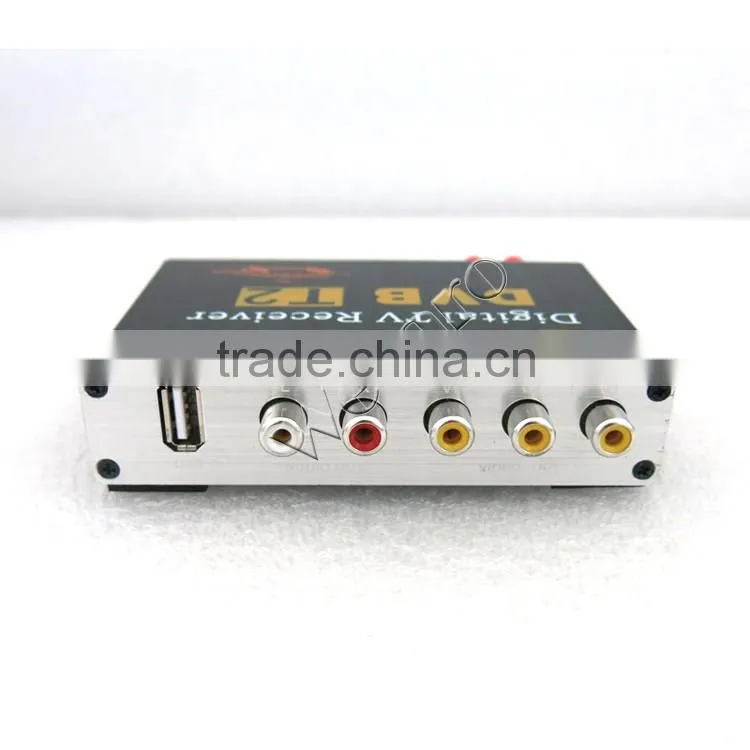

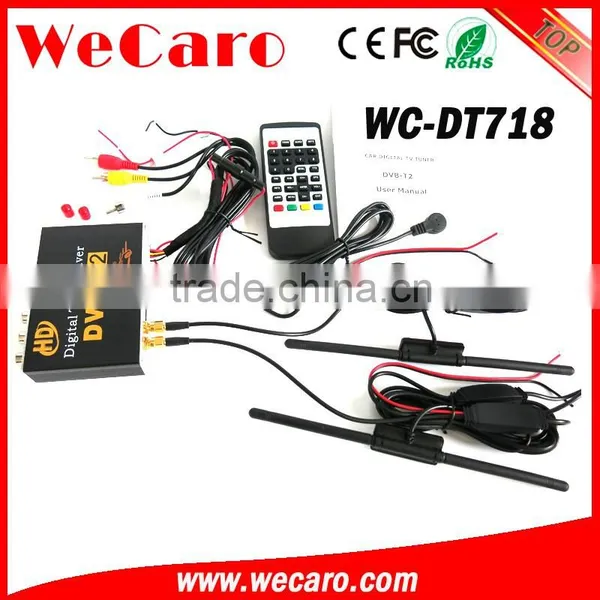

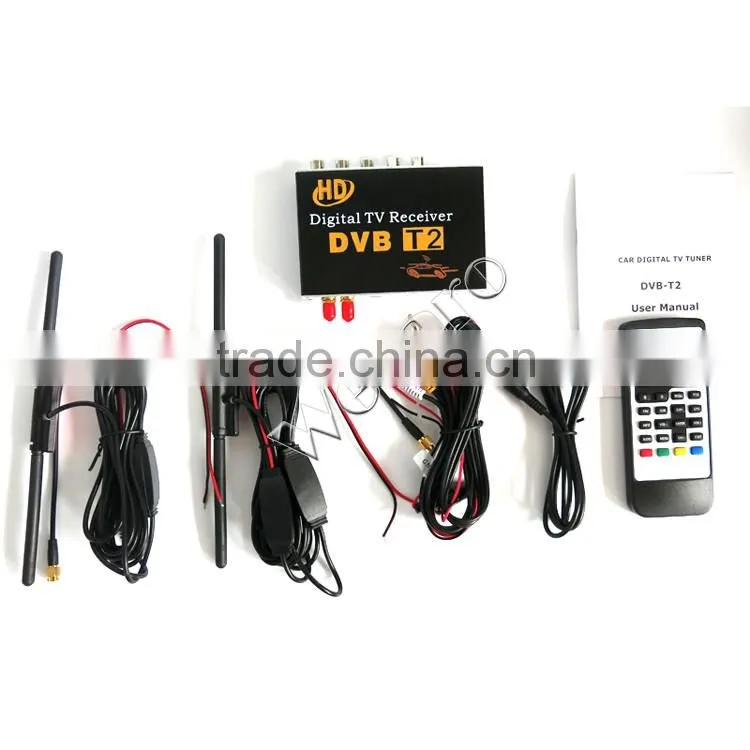

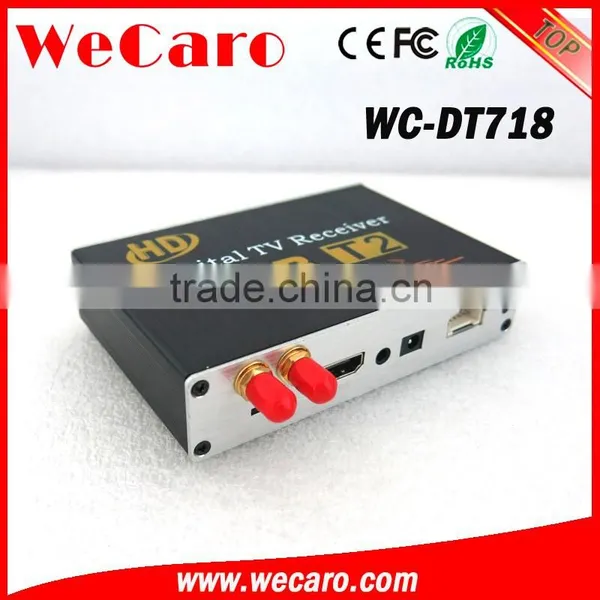

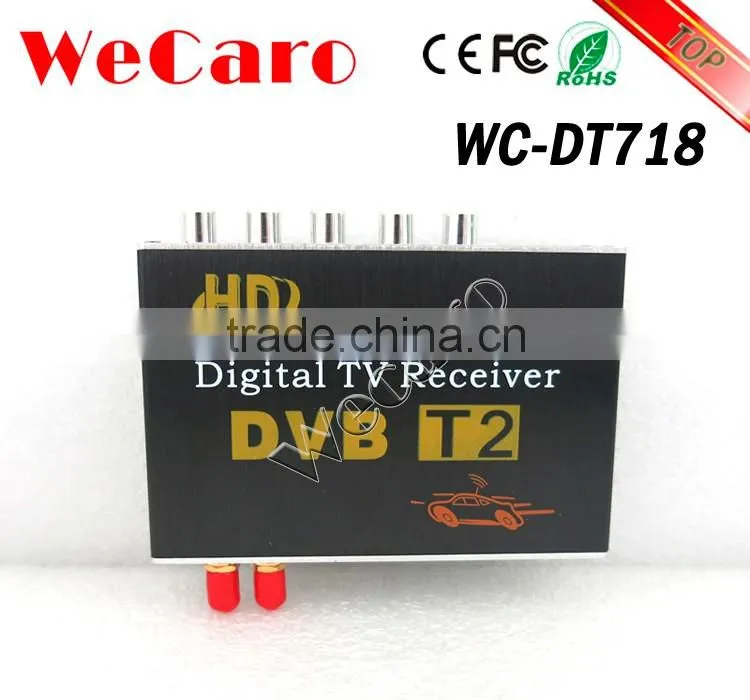

Wecaro WC-DT718 car dvb t2 digital tv receiver for Thailand

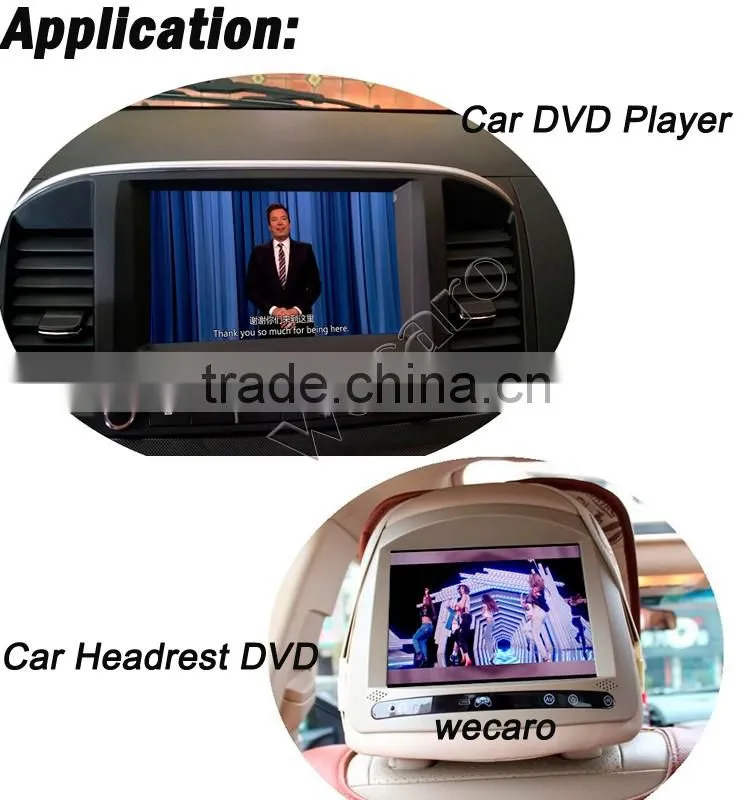

With the rapid development of car dvd industry, the users have higher requirements for the car dvd function and usability . Car navigation system not only a navigation system,We hope we can watch TV on our car dvd player or car headrest monitor. So according to the different countries's TV Format,we design and production those series Car Digital TV Receiver.
| Specification of Car Digital TV Receiver - DVB-T2 | |
| Product Name | DVB-T2 |
| Model Number | WC-DT718 |
| MPEG4 | Fully SD/HD Tuner DVB-T/T2, SD/HD MPEG2 and MPEG4 AVC H.264 |
| Resolution | Full HD tuner DVB-T2,support up to 1080P |
| PAN/NTSC | Automatic PAL/NTSC conversion |
| Scan | Auto and manually scan all available TV and radio channels |
| Channels Number | Aspect ratio 16:9 and 4:3, 1000 channels memory |
| OSD Language | Thai, Russian, English |
| EPG | Small windows screen picture with EPG graphic menu,7-Day EPG function |
| Channel Search | Auto search & Manual search function |
| Software upgrade | Software upgrade via USB |
| Teletext |
Support teletext/ subtitle/audio language selection,VBI Teletext,Teletext/ Bit Map subtitle, compliant with ETS1 |
| control | Parental control |
| Save Channel | Automatic save for last channel |
| LCN | Support Logic Channel Number(LCN) |
| USB | USB2.0 Front Panel, |
| Support Speed | 100-150 KM/H |
| Main Chip Sets | |
| Flash Memory | 32MB Serial Flash |
| DDR2 Memory | 512MB |
| Tuner | |
| Input Frequency | VHF: 174~230MHz,UHF: 470~862MHz |
| RF input Level | -20~-83dBm |
| IF Bandwidth |
6MHz-7MHZ and 8MHZ |
| Modulation | QPSK,16QAM,64QAM,256QAM |
| USB Decode | |
| Decode Format |
MPEG-2 MP@HL, MPEG-4 SP, DIVX1 3.11(Optional), 4.X, 6.X,FLV Format, H.264MP@HL, VC-1,RM&RMVB(Optional) |
| Output Format | 1080p,1080i,720p,576p,576i,480p,480i |
| Aspect Ratio | 4:3/16:9/Letterbox/ selectable |
| Output Port | (V1.3C),YPbPr,CVBS |
| Audio Decode | |
| Decode Format |
MPEG-1,MPEG-2 (Layer I/II),MP3, AC-3(Optional),E-AC-3(Optional),AAC-LC, HE-AAC 5.1 |
| Audio output |
S/PDF(Coaxial),RCAX2(L/R) |
| Bluetooth | |
| Bluetooth Version | 5.5MHz(-3dB) |
| Video Impedance | 75Ω |
| Video Voltage Level | 1.0 Vp-p |
| Audio Freq. Range |
20~20KHz |
| Guard internal |
1/4,19/128,1/8,19/256,1/16,1/32,1/128 |
| Pilot pattern |
PP1-PP7 |
| Work volt |
DC(6v-36v) |
| Audio format |
ISO/IEC14496-30,AAC,AAC+ |
| USB | USB2.0, support Move HDD 2TB hard disk |
| Hardware interface |
Vehicle computer date cable port,DC input,RF input port2piece,USB2.0/ HDMI1.3/POWER INDICATOR/IR Receiving port |
Why Choose Purchase From Wecaro?
1, -We are factory:100% Original Car navigation dvd manufacturer with 8 production lines in Guangdong Province,no agent to drain your profit!
2,-We are Professional Manufacturer : Focus on car dvd player and Related electronic parts since 2009, We have more experience and more professional.
3 -Reliable quality: doption of the best quality European NXP sermiconductors with DSP audio processing chip
3,- Master the newest technology: Use ARMCORTEX-A9 quad-core processorthe overall speed three times faster than ordinary navigation
5,-Best Service:Wecaro Provide OEM & ODM Service( Customized packaging box and Laser print your own company brand logo )
6, -Integrity and reliable : Wecaro is alibaba trade Assurance gold supplier, Real-name authentication Supplier on car audio Market.
