Specifications
cheap analog caller id for reception phones1.FSK/DTMF
2.Flash,Redial,HF,Memory
3.Handsfree
4.CE,ROHS,FCC and etc.
cheap analog caller id for reception phones/2 line phone call id/ programmable telephones
1. Using STN graphic display module LCD, 30 characters of double line English display, which can display the date, time, extension number, time of call, call information, calling state, the programmed state.
2. Direct key 1-21, using LED two-color ( red / green ) indicator light, can be set as outside port number, extension port number, outline number, so you just need press a button to achieve a variety of functions, such as the call outside, call extension, call transfer and helping others to pick up the call.
3. Incoming call indicator: large incoming call indicator, even at a distance or a noisy environment you can also know which phone is ringing.
4. Incoming number Inquiries: Just through a special inquiry key, you can check the calls, as much as 50 groups caller ID can be stored.
5. Transfer key function ( TRFR ): you can transfer the calls to other extensions.. In the standby mode, pressing this key, it can be switched to night work mode ( connection on port 001 effective ).
6. Mute key function ( MUTE ): you can close the microphone ( including a handle and a hands-free microphone )while in conversation state, indicator lights on mute. In the standby state indicator light means open automatic answering function.
7. Sound volume(hands-free, handle, ringer volume) can be adjusted quickly by Volume control key.
8. Conference key (CONF), you can quickly convened a meeting, which can achieve 2 outside ext 6 total 8 parties conference or pure inside 6 parties conference.
9. Paging ( PAGE ): broadcast to the external speaker and key phone in system.
10. Hold ( HOLD ): confirmation to the program change. Hold on the talking outside line.
11. Check ( CHECK ), remove ( CLEAR ):system programming, key programming.
Key Phone installation
1.Key Phone installation
Key Phone to the hybrid port in the mainframe. If the line is too short for your environment, you can select a longer line by yourself. Be sure that the wire order in the line must be correct, otherwise the phone will not work.
2.Wire order at crystal head
Technical Parameter
1. Cable Length: less than 100 meters.( 2 pairs twisted wire,0.5 @, resistor < 30Ω ).
2. Voltage : 32±12V DC / 50mA.
3. Environment Humidity: 10% ~ 95%.

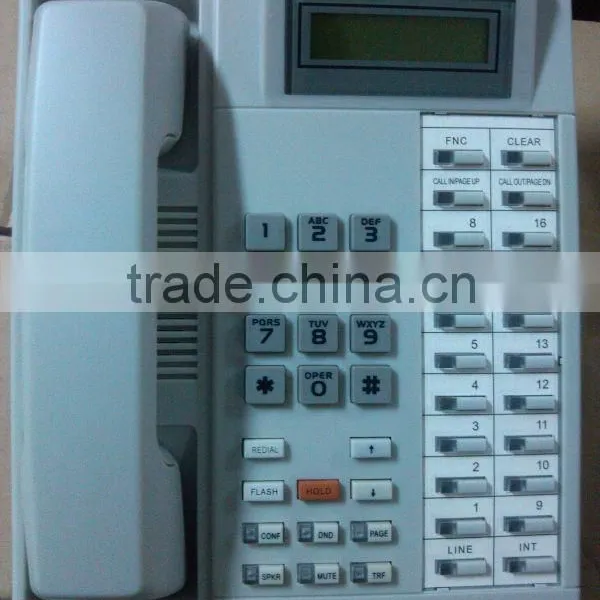

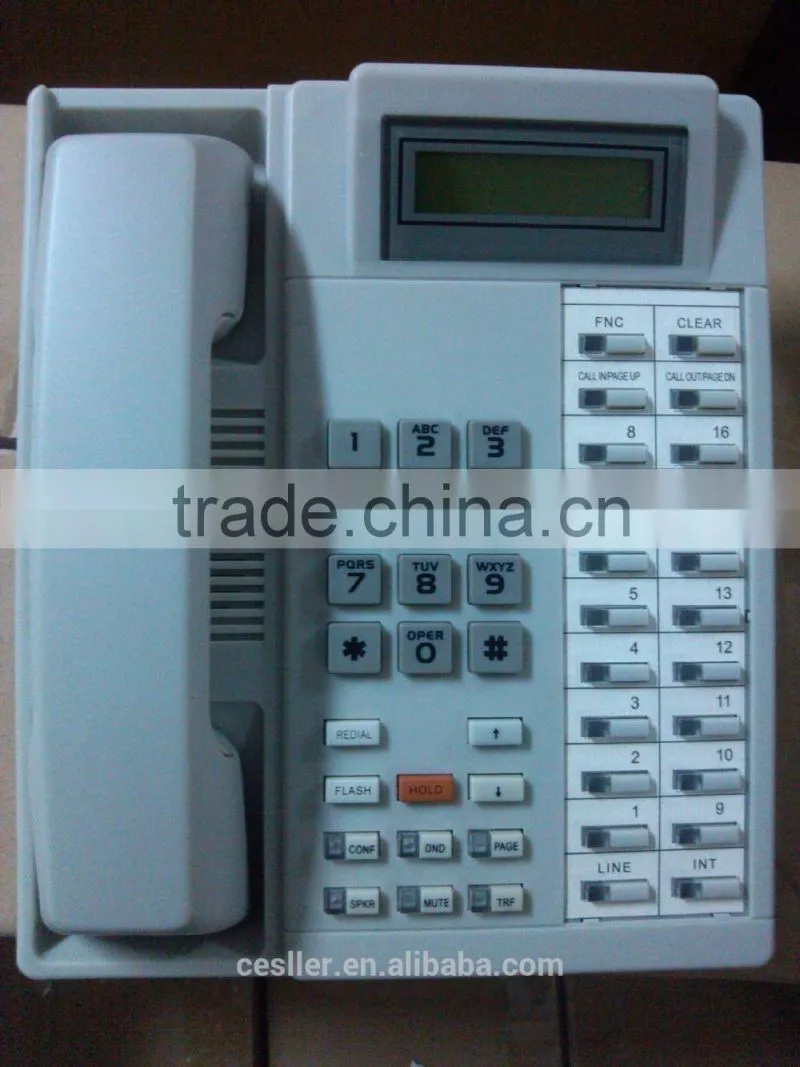

Panel Diagram
WS824-2C programmable telephone
(1)Handset;
(2)LCD screen with two-row display
,on-row display) and 16 digits, including: Date and time, incoming call ID, conversation time, program content, call information, charge display and extension number;
(3) Other function keys and programming keys;
“1”—“21” __ programming keys , can also be programmed as extension keys and function keys;
“ ” __ Increase the volume of hand free, handset, and ringing;
“PAGE UP”- for forwarding to check incoming call number.
“ ” __Decrease the volume of hand free, handset, and ringing.
_ “PAGE DOWN”- for back warding to check incoming call number.
“CHK “__ for status checking and system programming usage.
“CLR “__for clearing the content of checking and programming. Also for exiting from the
“LINE ”– for fetch a free Co. line.
“FWDNC” __used for do not disturb and forwarding .
“ICM”- for internal calling
(4) Dial Panel.
(5)CID indication light;
(6) Special Function Key
“HOLD” __ for Co. Line holding.
“TRFR” __ used for the Co. line and internal conversation transferring
“MUTE”—For muting the calling party during conversation.
“SPK” __For making a conversation on hook off.( WS824-520C don’t have the key to make conversation without picking up the hand set.)
“CONF” __used when phone meeting required.
“PAGE”__For internal and loudspeaker paging. (No the function in WS824(3) and (10) )
“FLASH” __ for Co. Line flash.
“REDIAL”__ for the last number redialing
Shipping to worldwide by DHL, FEDEX, TNT and UPS etc.
Lanny Welcome you to ask for price.
Skype: cesller
Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
