Specifications
Energy Saving 1200mm 18W T8 LED Tube1.Power Factor>0.9
2.G13 Base
3.Aluminum & PC
4.CE&RoHS Approval

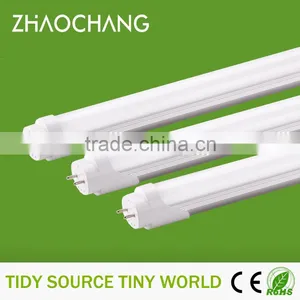

Energy Saving 1200mm 18W T8 LED Tube
Model NO. |
ZC-T8-18W |
Wattage |
18W |
Shade Material |
PC |
Lamp Holder/Base |
G13 |
Shell Type |
Frosted & Clear |
LED Chips |
Epistar&Epiled&Samsung |
Color Temperature |
Neutral White&Warm White&Cool White |
Input Voltage |
AC85-265V |
Dimmension |
1200*26mm |
Package |
Cardboard paper tube |
Certification |
CE&RoHS |
Parameter of CE&RoHS Approval T8 LED Tube:
LED tube physcial Specifications:
| LED Source | SMD2835 |
| LED Chip | Epistar&Samsung&Cree@Epileds |
| LED Quantity | 96 pcs |
| Holder | G13 |
| Material | Aluminum+PC cover |
| Dimension | Φ26*1200mm |
| Lifespan | >50,000 hours |
Electrical Specifications:
| Input Voltage | AC85-265V |
| Wattage | 18W |
| Power Factor | >0.92 |
| Power Efficiency | >95% |
| Running Frequency | 50-60Hz |
Optical Specifications:
| Luminous Flux | 1800lm |
| Light Efficiency | 100lm/w |
| Color Rendering Index(CRI) | 80Ra |
| Beam Angle | 120° |
| Working Temperature | -30°C~55°C |
| Color Temperature | 2700-3500k Warm White |
| 4000-4500k Neutral White | |
| 5000-7000k Pure White |
Paking Specifications:
| Inner Packing | Cardboard Paper Tube |
| Carton Size | 124*20*24cm |
| Quantity per Carton | 30pcs/ctn |
| Net Weight(N.W) | 350g |
| Gross Weight(G.W) | 550g |
Benifits of LED Tube t8:
1.Solid-state, high shock/vibration resistant.
2.No RF interference, no buzzing noise.
3.No fluorescent flickering.
4.Mercury and Plumbum free,Environment-friendly facility.
6.Maintenance free, easy installation.
7.Long lifespan up to 50,000h.
8.Low power consumption, high intensity.
9.Isolated light source which is more reliable and convenience.
10. SMD2835 technical and advanced heat-sink frame design reduce chip attenuation.
Advantages of T8 LED Tube:
1. The design of this led tube without Mercury and Plumbum which make the product more safe and more reliable.
2. Using SMD2835 of Taiwan Epistar&Epileds original LEDs,high brightness, low light attenuation, solid cold light source, epoxy sealing heat.
3.Using imported good quality aluminum material for better heat dissipation and maintaining long life span.
4. Nice PC cover with good light transmission, ensuring 88% light transmittance, transparent and frosted PC cover are available.
5.CRI(standard products)>70Ra, it can be more than 80 if required.
LED Tube t8 Parameter Photoes:
Quality Control of T8 LED Tube:
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
The Luminous Effect of LED Tube T8:
Installations of LED Tube:
Attention:1.If the conventional tube is with electronic ballast,please take off the ballast and make replacement with LED tube according to the circuit diagram.
2.If the conventional tube is with inductive ballast,please take off the ballast and starter,then make replacement with LED tube.
WARNING: LED tubes do not require a starter or ballast mechanism to operate. This actually makes them electrically more straight forward with fewer components to go wrong. However, when replacing an existing fluorescent tube with an led tube the existing fitting will need to be modified to bypass the old ballast and starter mechanism. This is not a simple process and unless you are confident in your electrical abilities, we recommend this is carried out by a qualified electrician.
led tube
Any Further Questions About T8 LED Tube:
Which LED Tube Supplier Should You Choose
With the LED tube technology,suppliers and manufactures are increasingly increased. As a consumer,we should prepare to keep our step with the nowadays trend and utilize our wisdom to greater advantage. So many suppliers,which one would you choose,then. When it comes to the lights,something necessary is deserved to known before choosing a supplier.
We know that the LED lights are energy saving compared to the conventional fluorescent tubes. Having said that the suppliers of LEDs are numerous that the lights are easily to be found in various patterns and specifications as well as types. How to choose it then. We should be clear of our own purpose at first.
For the sake of plenty of applications of different type lights,one should select according to the specific environment. Wherever it is,in the house,classroom,halls,hospitals or super market,we can see the lights working silently. The LEDs are the eco-friendly lights that should be widely used in our daily life.
There are different types lights available in the markets and online stores. They are easier retrofit and compatible with conventional T5 or T8 fixtures, they don't need ballasts, and are quite easy to install. What is more, LED tube lights are more durable and reliable than conventional fluorescent tubes. During their lifetime, they hardly need any maintenance costs.
LED tube sells well in the market owing to the features. You are advised to surf the Internet about the lights and choose the high sales supplier. When you click in,pay attention to the comments and ratings. Read carefully the product details and compare the properties and applications as well as the price.
How much can I save if I switch to LED Tube Lights?
As an example, the brightness from our 8W LED tube equals to 25W fluorescent tube light. On a simple calculation, you can save 68% straightaway from the low energy consumption side.
Also the led tube light’s lifespan is 50,000 hours which is five times the lifespan of normal fluorescent tubes. So cost wise, you can save 80%.
There is also lowered maintenance cost, which means you don’t have to replace the tube light in 17 years if you use them 8 hours a day.
How can I replace an LED Tube Light? Is it straight forward?
Unfortunately for most LED Tube Lights, you will need to make some changes to the current tube light fixture. But it’s very simple, and should just take at most 10 minutes for a qualified electrician to make the change.
Are there any other benefits of LED Tube Lights other than energy saving?
Yes, one biggest advantage of led tube light is that there is no flickering. After hours of hours of working under LED Tube Light, you won’t get headache. Also, there is no UV emission, no buzzing of the ballast. You can enjoy a quiet setting where LED Tube Lights are used. LED Tube Lights are totally green energy with lighting fixtures of no hazardous elements like mercury or lead. All our LED Tube Lights are RoHS certified. For all the LED Lights, it’s instant on when turned off, there is no warming up period.
Packing for LED Tube:
Trade Terms:
Applications for LED Tube:
1. Hotel.Museum,Hospital,public place
Certification:
