Specifications
1.Automatic rotary curing press can make rubber conveyor belt and other rubber product with good quality.3.warranty:1 year.
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor
intensity and low energy consumption.

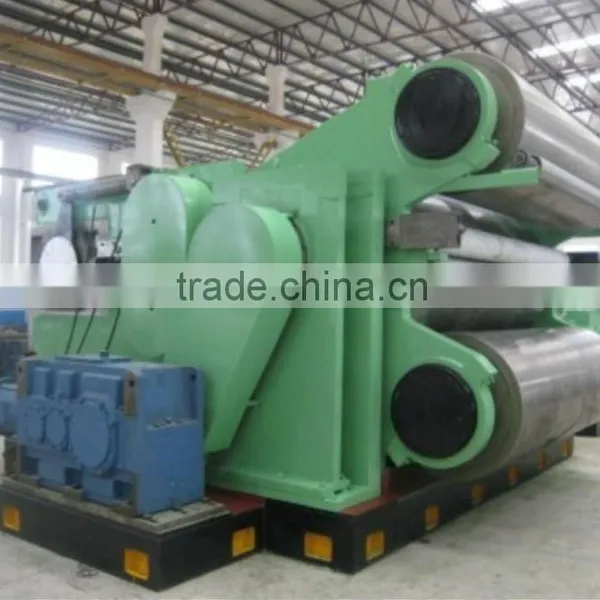

Automatic rotary curing press / rotary rubber curing press / drum type rubber vulcanizer
drum curing press has advanced technology, high quality, reasonable price and good reputation .
Our factory always adhere to the honesty is the root, a promise is a promise of business philosophy, adhere to the market as the guidance, providing advanced products and high quality service.
Rotary curing press is suitable for continuous vulcanization of various kinds of rubber blanket, rubber sheet and so on.
Model item |
DLG-700x400-1800 |
DLG1100-2000 |
DLG1500x2000-2500 |
DLG2000x2500-4200 |
|
Max. product width |
mm |
1200-1600 |
2000 |
2000-2500 |
2500-4200 |
Max. product thickness |
mm |
5 |
8 |
12 |
12 |
Drum diameter |
mm |
700 |
1100 |
1500 |
2000 |
Drum working width |
mm |
1400-1800 |
2200 |
2350-2750 |
2750-4200 |
Total pulling force of steel belt |
t |
38-49 |
90 |
93.6-117 |
120-114 |
The linear speed of vulcanizing drum |
m/min |
0.04-1.12 |
0.06-1.8 |
0.175-3.14 |
0.24-4.7 |
Steam pressure |
MPA |
0.6 |
≤0.8 |
≤1 |
≤1 |
Vulcanizing temperature |
|
140-160 |
140-160 |
140-160 |
140-160 |
Main motor power |
kW |
4,5.5 |
7.5 |
7.5-11 |
15-30 |
Overall dimensions |
L(mm) |
8300 |
10000 |
1350 |
18600 |
W(mm) |
4400-4830 |
4900 |
5200 |
4650-6200 |
|
H(mm) |
2100 |
2600 |
6085 |
6285 |
|
About weight |
t |
20-30 |
42 |
79 |
80-126 |
Rotary curing press is suitable for continuous vulcanization of various kinds of rubber blanket, rubber sheet and so on. We hope you will find the above in order and shall oblige us by placing your valuable order.
| Contact |
Mr. Gavin Ding Mobile: 0086 13583283100 |
Factory Name Address& Product |
Qingdao Eenor Rubber Machinery Co., Ltd. Binhai Industrial Zone, Jiaonan, Qingdao, China We manufacture and export reclaimed rubber machine, tire recycling rubber powder production line, hydrulic vulcanizing press, rubber extruder, rubber strainer, rubber refiner, rubber tile vulcanizing press, rubber mat machine, conveyor belt production line, conveyor belt jointing press, V belt production line, rotary curing press, rubber kneader, rubber calender, rubber cooling machine, rubber hose production line and other rubber machinery. |
Skype, MSN, G-talk&Email |
Skype: dingqinpeng MSN: dingqp <at> G-talk: dingqinpeng <at> Email: sales27 <at> |
Our motto: The honesty is the root, a promise is a promise.
