Specifications
Insulated glass1.Window glass
2.Glass Curtain Wall
3.Much more alternative matches...
Function: Insulated Glass
Building Insulated Glass

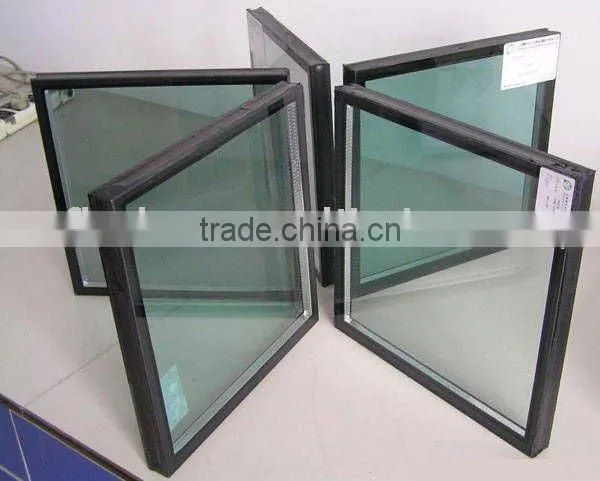

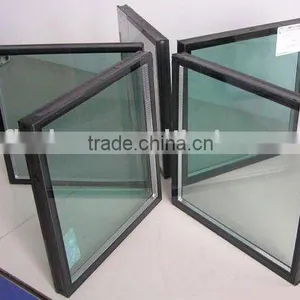

Insulated glass is a prefabricated unit made of two or more glass panes with aluminium or stainless steel spacers, filled with desiccant,which are edge-sealed around with compound sealant. Normally, the spacers width of insulated glass is 6mm,9mm,12mm,15mm,18mm etc.
The element
The glass(clear glass,laminated glass,low-e glass)
The aluminum spacer bar with the dessicant filled.
The butyl seal & dual PIB seal.
Advantages
1. Optical performance Visible LT 10%-80% and LR 13%-35% depends on different panes of Insulated glass
2. Thermal feature Insulating glass can reduce U value, especially when filled with inert gas
3. Sound insulation Insulated glass can lower the noise, if applied with laminated pane,80 decibels of traffic noise could be as low as 45 decibels
4. Anti-dew Desiccant keeps the dryness inside the spacer and resists forming Of dew
Application
Based on the features above ,insulating glass is widely used in construction, trains, ships, freezers etc.
Insulated Glass (Regular combination & approximate container loading capacity)
|
Container |
1X20GP |
1X40GP |
1X40HQ |
|
Loading capacity |
17.5T |
22.5T |
22.5T |
Specification |
Kg/m² |
Square meter |
Square meter |
Square meter |
4+6A+4 |
≈20 |
825 |
1075 |
1075 |
4+9A+4 |
≈20 |
825 |
1075 |
1075 |
5+6A+5 |
≈25 |
660 |
860 |
860 |
5+9A+5 |
≈25 |
660 |
860 |
860 |
6+6A+6 |
≈30 |
550 |
717 |
717 |
6+9A+6 |
≈30 |
550 |
717 |
717 |
6+12A+6 |
≈30 |
550 |
717 |
717 |
8+6A+8 |
≈40 |
413 |
538 |
538 |
8+9A+8 |
≈40 |
413 |
538 |
538 |
8+12A+8 |
≈40 |
413 |
538 |
538 |
10+6A+10 |
≈50 |
330 |
430 |
430 |
10+9A+10 |
≈50 |
330 |
430 |
430 |
10+12A+10 |
≈50 |
330 |
430 |
430 |
Note: |
All the above data is just for your reference |
|||
